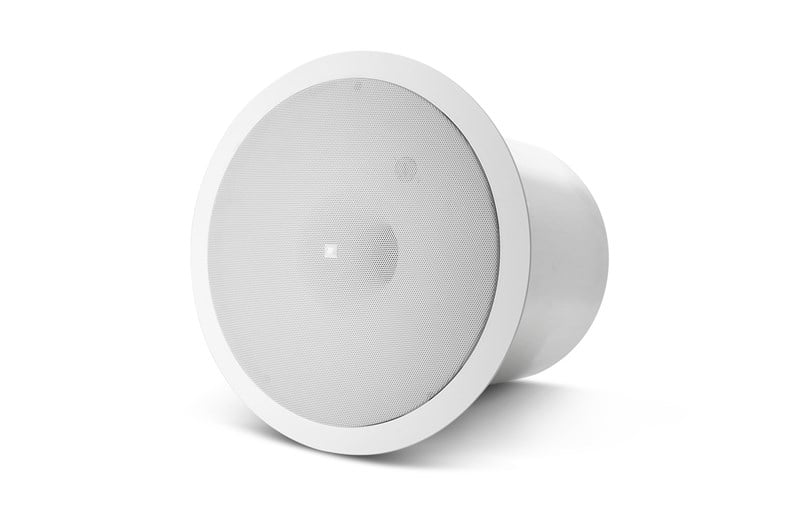

Jbl CONTROL 19CST 8 inch 60W 70/100V Subwoofer
The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile
in-ceiling design.
Unique Nested Chamber™ design and Linear
Component: Long excursion 200 mm (8 in) driver.
Packaged with grille, backcan and tile rails for fast
Simple installation and wire connection method.
Frequency Range 42 Hz - 200 Hz
Power Capacity 200 W Continuous Program Power
Transformer Taps 70 V: 75 W, 30 W, 15 W & 7.5 W
100 V: 75 W, 30 W, & 15 W
Nominal Coverage Angle 180° conical coverage
Rated Maximum SPL 115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)
Nominal Impedance 8 ohms
Low Frequency 200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former
Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Terminations Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
Safety Agency Rating In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
Outside Dimensions (H x Dia) 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
Cutout Size (H x W) 305 mm (12.0 in)
Net Weight (ea) 6.3 kg (14 lb)
Shipping Weight (pair) 14.3 kg (32 lb)
