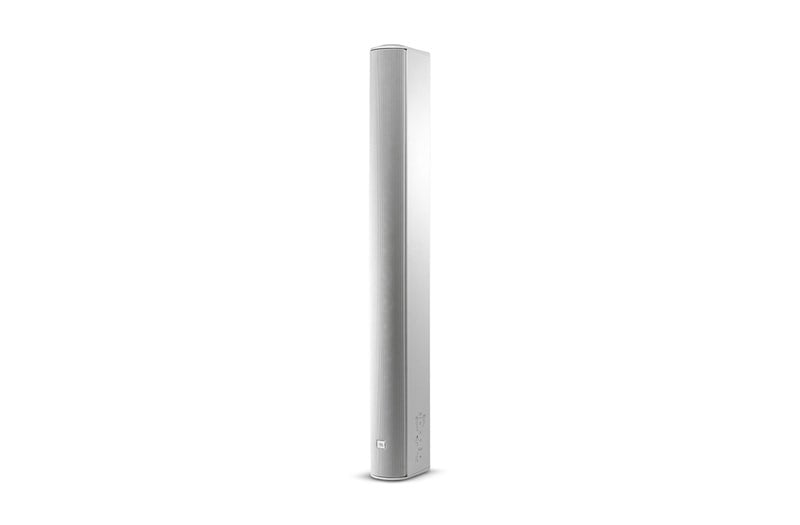

Jbl CBT100LA-1 16x2 inch 8 ohm 70-100V Column Hoparlör
Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.
The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection
Swivel (pan)/tilt wall bracket included.
Built-in 70V/100V transformer, plus 8 ohm direct capability.
Özellikler
Components: Sixteen 50 mm (2 in) Full-Range
Frequency Range: (-10 dB) 80 Hz – 20 kHz
Vertical Coverage: Vertical, Narrow Mode: 15° (2 kHz - 16 kHz) (±10°), Broad Mode: 40° (1 kHz - 16 kHz) (±10°), Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity: (2.83V@ 1m) Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ), (music mode) 93 dB (300 Hz - 18 kHz), Broad: (speech mode) 93 dB (2 kHz - 14 kHz), (music mode) 90 dB (300 Hz - 18 kHz), Nominal Impedance: 8 ohms (in Thru mode)
Power Capacity (8 ohm setting): 325 W (1300W peak), 2 hrs, 200 W (800W peak), 100 hrs
Max SPL Narrow: (speech mode) 121 dB cont ave (127 peak), (music mode) 118 dB cont ave (124 peak), Broad: (speech mode) 118 dB cont ave (124 peak), (music mode) 115 dB cont ave (121 peak)
70V/100V Transformer Taps: 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors: Black or White (-WH)
Insert Points: 18 M6 insert points on back panel.
Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions: (H x W x D) 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
Net Weight: 7.2 kg (15.8 lb)
Included Accessories: Swivel (pan) / tilt wall bracket
Optional Accessories: MTC-PC2 terminal panel cover, MTC-CBT-FM1 flush-mount low-profile wall-mount bracket, MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
