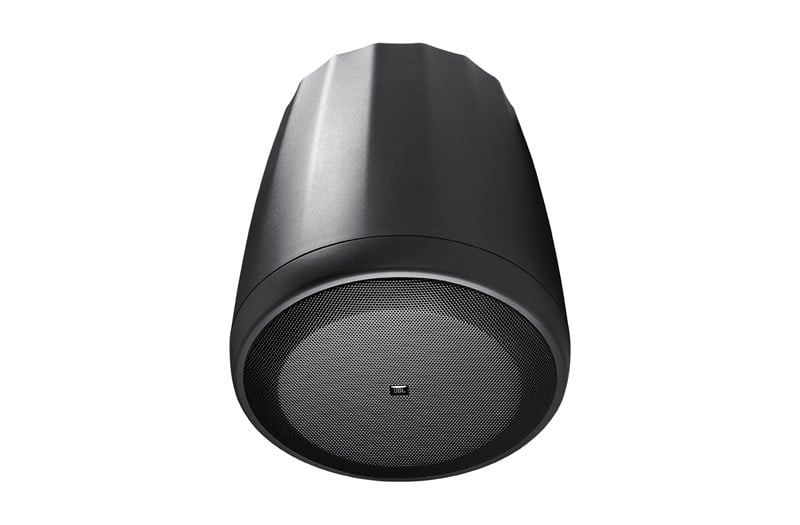

Jbl C65P/T 5,25'' 75W 70/100V 8 ohm Sarkıt Tavan Hoparlörü
RBI Radiation Boundary Integrator Technology
120° conical coverage
5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
75 Watts, 8 ohms and 60W multi-tap transformer
Black or white
Frequency Response (-10 dB) 55 Hz – 20 kHz
Frequency Range (±3 dB) 78 Hz – 18 kHz
Power Capacity 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
150 Watts Continuous Program Power
Nominal Sensitivity 86 dB
Nominal Coverage Angle 120° (+20°/-10°)
Directivity (Q) 5.3
Directivity Index (DI) 7.2 dB
Rated Maximum SPL @ 1m 105 dB continuous pink noise, 111 dB peak
Rated Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
LF Driver 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround,
25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF Driver 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure Material High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable
for painting)
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Termination Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating
of 45 kg (99 lb).
Safety Agency Ratings Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (ea) 3.7 kg (8 lbs)
Shipping Weight (pair) 8.7 kg (19 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors
Optional Accessories MTC-PC60 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
Impedance
70/100V 4-16 ohm
