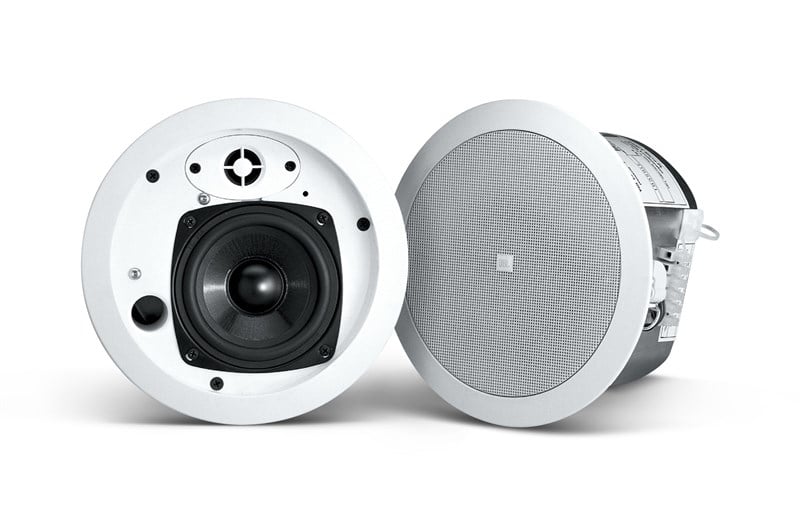

Jbl C24CT MICROPLUS 4.5 inch 30W Tavan Hoparlörü
Extremely wide 150° coverage.
Smooth frequency response.
Advanced crossover network provides very even coverage throughout listening area.
Components:
115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
12 mm (.5 in) polycarbonate tweeter for extended response.
Includes 25 W multi-tap transformer for 70 V/100 V systems.
Shallow 105 mm (4.1 inch) depth from back of baffle.
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Frequency Range 80 Hz - 25 kHz
Power Capacity 30 W Continuous Program Power; 15 W Continuous Pink Noise
Transformer Taps 70 V: 25 W, 12 W, 6 W taps
100 V: 25 W, 12 W taps
Nominal Sensitivity 85 dB SPL @ 1 m (3.3 ft)
Crossover Frequency 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
Rated Maximum SPL 99 dB @ 1 m (3.3 ft), 25 W tap
Low Frequency 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
High Frequency 12 mm (0.5 in) polycarbonate
