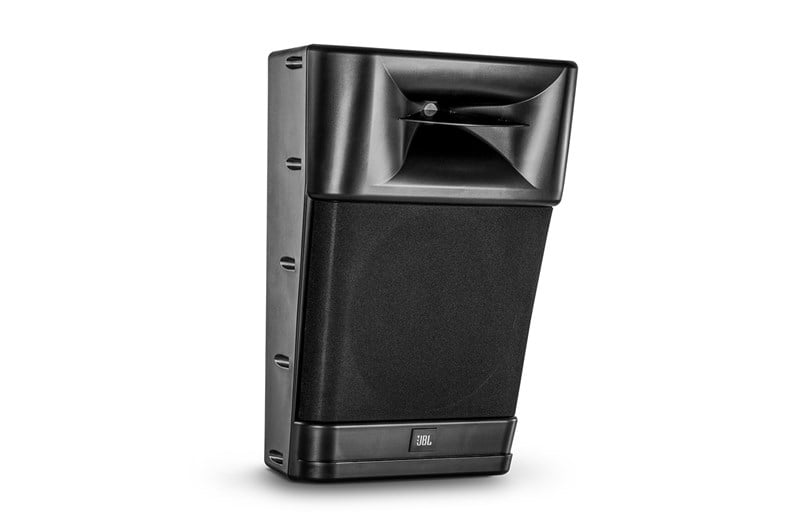

Jbl 9300D Surround Sinema Hoparlörü
Adet Fiyatıdır, Sipariş miktarı 2 adet olmalıdır.
250 Watt Power handling capability
Wave Shaping Vane distributes an acoustic energy wave-front sculpted to the room
High Frequency Horn features JBL Image Control Technology for precise pattern control
Three separate horizintal mounting planes at 15 degree angles for specific positioning to improve coverage
Input terminals on top of cabinet for easy access
Lightweight, Rigid molded enclosure
Uniform asymmetric 60 degree vertical coverage and 110 degree horizontal coverage
Frequency Range (-10 dB) 50Hz – 25kHz (2π) / 60Hz – 25kHz (4π)
Frequency Range (±3 dB) 60Hz – 20kHz (2π) / 100Hz – 20kHz (4π)
Coverage Pattern 110º × 60º asymmetric >2kHz
Power Handling 30v @ 100hrs, 40v @ 2hrs, IEC/Pink 250W continuous pink noise
Sensitivity 96dB SPL @ 2.83v
Maximum dB SPL 120 dB continuous, 126 dB peak
Rated Impedance 8 Ω
Minimum Impedance 7Ω @ 200Hz
Crossover Frequencies 2800Hz
Low Frequency 610H
High Frequency 2414H-1
System Polarity Woofer (IEC), HF (JBL)
System Protection Network only
System Input Type Banana
Enclosure Volume 1700 sq in. (unoccupied)
Dimensions (H x W x D) 22” x 16” x 11”
Weight 21 lbs (ea.)
