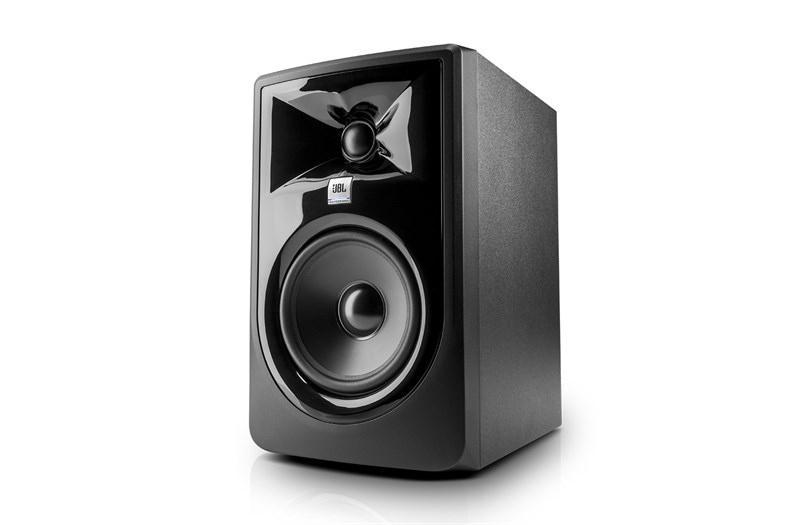

Jbl 305P MKII 5 inç 82 Watt Aktif Referans Monitörü
Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio
LF DRIVER SIZE 203mm (5")
HF DRIVER SIZE 25mm (1")
HF DRIVER TYPE Soft dome
CROSSOVER 1725Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT Yes
INPUT SENSITIVITY
(-10dBV INPUT) 92dB / 1m
POWER CONFIGURATION Bi-amplified
HF DRIVER POWER AMP 41W, Class-D
LF DRIVER POWER AMP 41W, Class-D
FREQUENCY RESPONSE (±3dB) 49Hz – 20kHz
FREQUENCY RANGE (-10dB) 43Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB) 43Hz
MAXIMUM CONTINUOUS SPL 94dB
MAXIMUM PEAK SPL 108dB
MAXIMUM PEAK INPUT LEVEL
(-10dBV / +4dBu) +6dBV / +20.3dBu
SYSTEM DISTORTION CRITERIA <10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
SIGNAL TO NOISE RATIO 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
COVERAGE
HORIZONTAL x VERTICAL 120° x 90°
ANALOG INPUT TYPES 1 x XLR female, 1 x TRS female, balanced
HF TRIM CONTROL -2dB, 0dB, +2dB
BOUNDARY EQ LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC INPUT VOLTAGE 100 – 240VAC (±10%), 50 / 60Hz
ENCLOSURE TYPE Ported
ENCLOSURE CONSTRUCTION 15mm MDF
ENCLOSURE FINISH Matte black PVC
BAFFLE CONSTRUCTION Injection-molded structural ABS
CABINET DIMENSIONS
(H x W x D) 298 x 185 x 231 mm (11.75" x 7.3" x 9.9")
DISPLAY CARTON (H x W x D) 354 x 244 x 299mm (13.9" x 9.6" x 11.8")
SHIPPING CARTON (H x W x D) 373 x 260 x 315mm (14.7" x 10.2" x 12.4")
NET WEIGHT 4.73 kg (10.43 lbs)
SHIPPING GROSS WEIGHT 5.72 kg (12.61 lbs)
