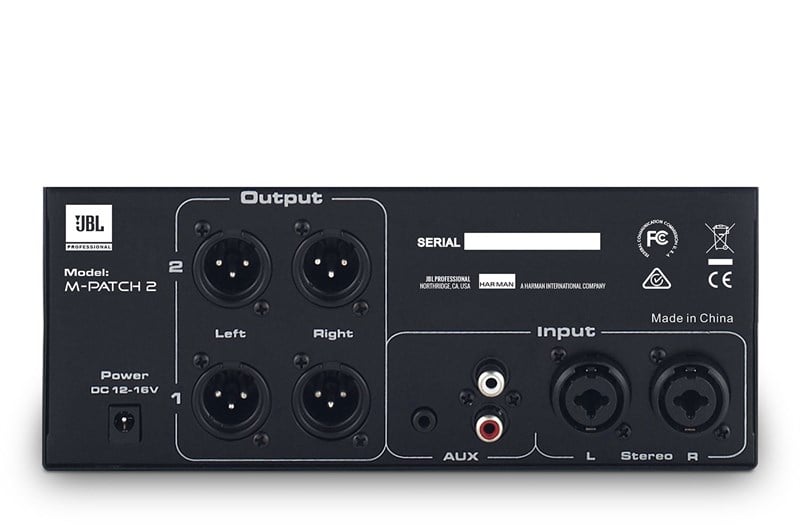

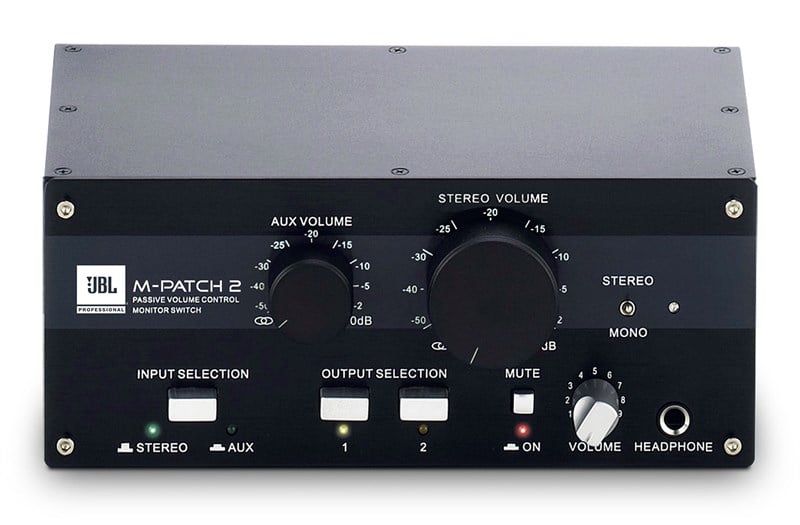

Jbj M-patch2 Multi-Channel Passive Stereo Controller and Input/Output Switch Box
High quality‚ passive volume attenuator
Great monitor switching device
2 x Input channels, 2 x Output channels
Combo, RCA, & 3.5mm input connectors
XLR outputs (balanced or unbalanced depends on the inputs selected)
Mono/Stereo summing switch
System mute function
Built in headphone amplifier
Quality components and rugged construction
Desktop or Rack-mountable installation
External 16Vac power supply (Supplied. Only required for operation of headphone amplifier)
Audio Input Connectors 2 x XLR Combo connectors
1 x stereo RCA pair (L&R)
1 x stereo 3.5mm jack
Audio Output Connectors 2 x XLR output pairs (A-/L&R, B-/L&R)
Headphone Output Connectors 1 x 1/4” TRS stereo output
Headphone Output Frequency Response 20Hz - 20Hz +/- 0.5dB
Headphone Output Maximum Output Level 320mW into 32Ω
Power - External DC12-16V adaptor
Dimensions (H x W x D) 22cm x 12cm x 8.6 cm
Net Weight approx. 1 kg
