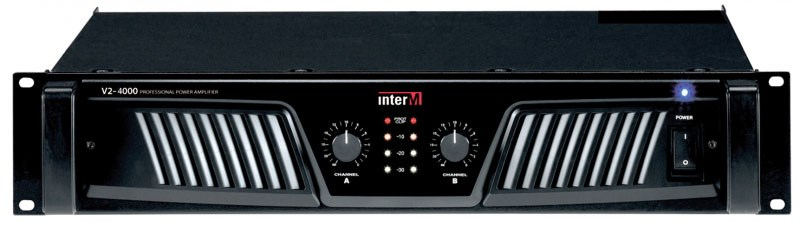

Inter-M V2-4000 2x1200W/4 Ohm Güç Amplifikatörü
Teknik Özellikler:
-Rated Output Power (STEREO)
-Rated Power: 120VAC 230VAC
-8Ω (T.H.D 0.1%): 750W 700W
-4Ω (T.H.D 0.1%): 1300W 1200W
-2Ω (T.H.D 0.5%): 2000W 1900W
-Rated Output Power (BRIDGED)
-8Ω (1kHz, T.H.D 0.1%): 2600W 2400W
-4Ω (1kHz, T.H.D 0.5%): 4000W 3800W
-Input Sensitivity (Rated Output Power @4Ω) 1V
-Voltage Gain (Rated Output Power @4Ω): 36.8dB,
-Frequency Response (1W @8Ω)
-20Hz~20kHz: ±0.3dB
-5Hz~70kHz: -3dB
-Damping Factor (100Hz, Rated Output Power @8Ω): more than 400
-T.H.D (20Hz~20kHz, 10dB Below Rated Output Power @8Ω): less than 0.05%
-Channel Separation (1kHz, 3dB Below Rated Output Power @8Ω): less than 70dB
-Residual Noise (VR Max @8Ω): less than 70dB
-S/N (Rated Output Power @8Ω, 20Hz~20kHz, A-Weight): 106dB
-Output Circuitry: 2 Step Class H
-Input Impedance: 12kΩ Balanced
-HPF (30Hz/50Hz): 12dB/oct
-Indicators: Prot/Clip, Signal, Active
-Protection Circuitry: Full Short Circuit, Thermal Protection Power ON/OFF Muting, DC Output Protection
-Cooling: Variable Speed Fans, Front to Rear Air Flow
-Connectors
-Input: XLR Female, Phone(1/4″TRS)
-Output: 4 Pole Speaker Socket
-Power source: 100~120V or 220~240V AC
-Power consumption: 870W
-Weight (SET): 12.1 KG
-Dimensions (SET): 482(W)x88(H)x407(D)mm
