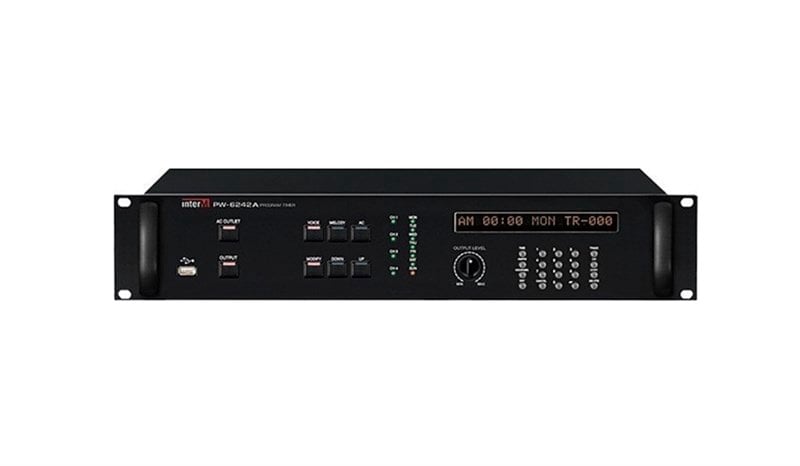

Inter-M PW-6242 A Haftalık Program Zamanlayıcı
Consıderatıon Of User’s Convenıence:
-NUMERIC buttons and various function buttons are separated for timer program enter and convenience in use so that the user can easily operate.
Adoptıon Of Vacuum Fluorescent Dısplay Panel:
-Adopting a vacuum fluorescent display of a dot matrix method enables to check operation status of each function at a glimpse.
Programmıng Usıng A Pc:
-You can easily execute reservation setting thorough management program by connecting a PC to the RS-232C port.
Varıous Melody And Sound Output:
-You can generate various melodies and sounds by linking the flash memory mounted on this unit to our model, PV-632 (MULTI-VOICE FILE).
Ac Power Output Control:
-When PW-642 and other equipment are connected via the AC outlet terminal of PW-642, you can turn ON/OFF the AC outlet button in the front panel and manually control ON/OFF of the AC power connected to other device.
Back-Up Power:
-You can continue to maintain the time counter for about a week though the inner back-up even though AC power turns off with current time set. There is no need of readjusting time even though AC power is applied.
Measure Agaınst Power Faılure:
-A separate memory is used to prevent data extinguishment due to power failure or other unstable power.
Automatıc Return:
-In programming data using a key button on the front side of PW-642 without using a PC, no pressing any button is recognized as cancel of program entry to return to normal operation status.
Ac Power Output Tıme Adjustment:
-You can adjust the AC power output time of PW-642 by 1~20sec to prevent time delay from occurring in the interface with the outside power amp.
Key Lock:
You can protect reservations and user’s setting.
Teknik Özellikler:
-Input Channel (Balanced): 5CH
-Output Channel (Balanced): 4CH
-Output Level: Maximum 1v
-AC Power Output 1: Maximum 500W
-AC Power Output 2: Maximum 30 w
-Data Preservation Time: 7 days and more
-Melody Time (15 settings total - 247 seconds)
-No.1: 2 seconds
-No.2: 3 Seconds
-No.3: 3 Seconds
-No.4: 5 Seconds
-No.5: 5 Seconds
-No.6: 7 Seconds
-No.7: 7 Seconds
-No.8: 10 Seconds
-No.9: 10 Seconds
-No.10: 15 Seconds
-No.11: 20 Seconds
-No.12: 30 Seconds
-No.13: 30 Seconds
-No.14: 40 Seconds
-No.15: 60 Seconds
-Operation Temperature: -10°C ~+ 40°C
-Power Source: 100- 120 VAC or 220 -240VAC; 50/60 Hz
-(Supplied AC mains transformer depends on country requirements)
-Power Consumption: 10W
-Weight(SET): 5.7Kg/12.6Ib
-Dimension(SET): 482(W) x 88(H) x 380(D)mm/19(W) x 3.5(H) x 15(D)in
