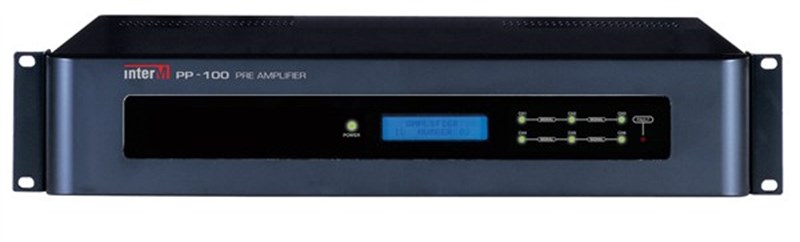

İnter-M PP-100 6 Kanal Preamlifier
Specifications:
-Control: Rs-422
-Connectors: 100m Less Than
-Audıo Input
-Dıgıtal Input(Rj-45 Input
-Output Level: 0dbv
-Input Sensıtıvıty(At 0dbv Output): 0dbv
-S/N (20khz Lpf,A-Weight Filter): 85db Better Than
-T.H.D (At 0dbv Output,20khz Lpf): 0.1% Less Than
-Local Input (Xlr İnput)
-Input Sensıtıvıty(At 0dbv Output): -60dbv
-S/N (20khz Lpf,A-Weight Filter): 60db Better Than
-T.H.D (At 0dbv Output,20khz Lpf): 0.1% Less Than
-Frequency Response: 100hz ~ 20khz (±3db)
-Local Input (Phone İnput)
-Input Sensıtıvıty(At 0dbv Output): 0dbv
-S/N (20khz Lpf,A-Weight Filter): 75db Better Than
-T.H.D (At 0dbv Output,20khz Lpf): 0.1% Less Than
-Frequency Response: 100hz ~ 20khz (±3db)
-Operation Temperature: -10℃ ~ 40℃
-Power Source: Ac: 100-240v, 50/60hz , Dc 24v
-Power Consumption: 15w
-Weight (Set): 6.5kg / 14.33ıb
-Dimensions (Set): 440(W)X88(H)X388(D)Mm / 17.3(W)X3.46(H)X15.27(D)İn
