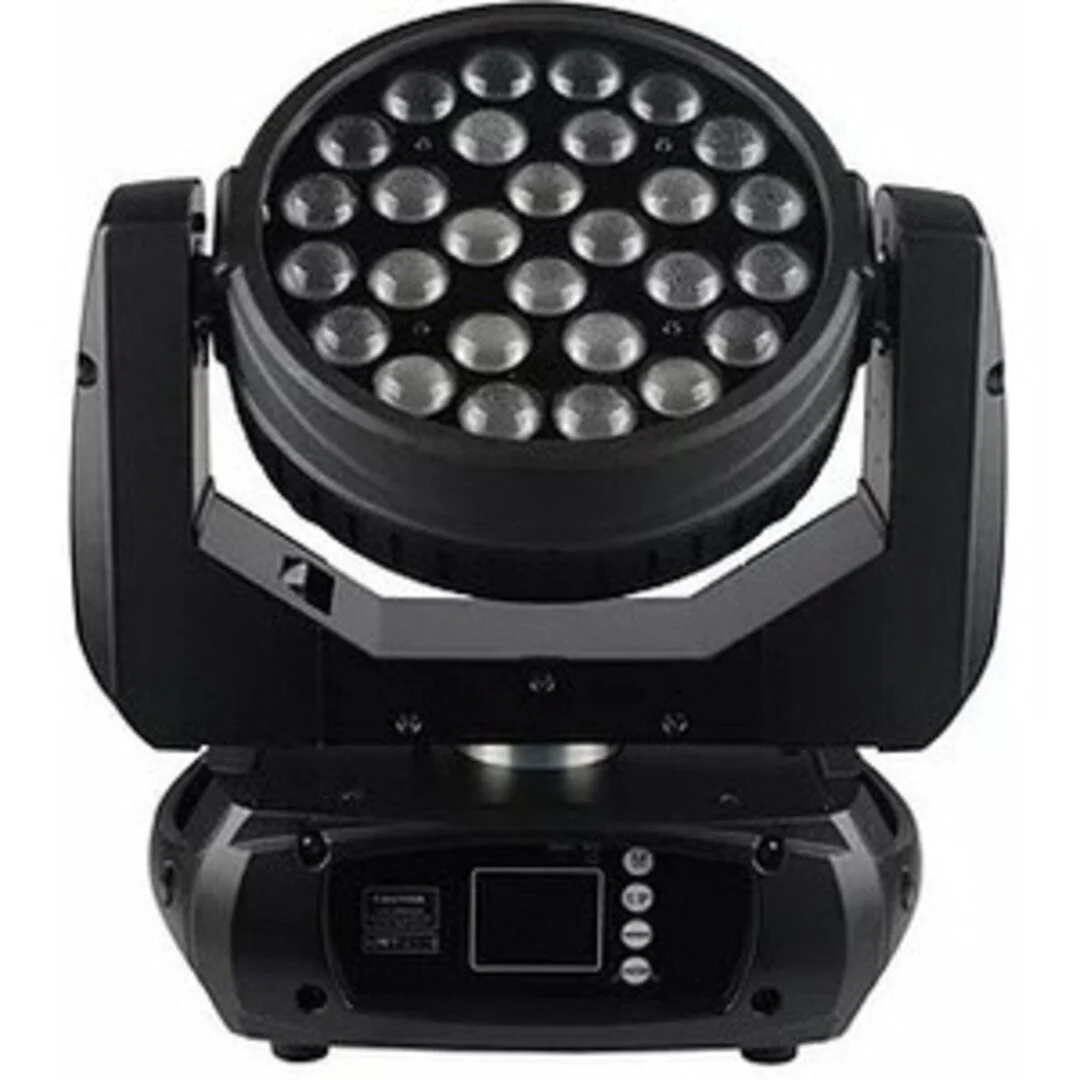

Highline Forte Led 2810MVL 28x10W 4 in 1 Moving Head Wash
Technical Features
16.7million additive RGBW colors whit full saturation control
Built-in programs that could be called up via a DMX controller
Variable pulse and random effects
25t/s strobe effect and pulse strobe effect
1,4" TFT LCD display with 4 control buttons
Power con IN/ OUT with power switch and fuse
3-Pin DMX connectors IN/OUT
Light Source
28 x 10W 4-IN-1 RGBW LEDs
Optics
16°-60° Beam zoom.
Group pixel control – Preset color macros
Power Supply
AC 90-260V, 50/60Hz
215 W
Control
Control Signal:DMX512 master-slave and sound activated
Control Channel: 19/35 - DMX channels USITT DMX-512
Movement
8/16 Bit smooth, fast and precise PAN/TILT movement
630°/540°/360°PAN optional and 270°/180°/90°TILT optional
PAN/TILT reversible advantage - PAN/TILT calibration available
Working Environment
Fan cooling system and blower fan cooling system combination
-35-45°C max ambient temperature
Constant temperature readout and management function.
Protection Rating : IP 20
Construction & Weight
Dimensions: 403(D)*268(W)*445(H)mm
Packing Dimensions: 330(D)*230(W)*320(H)mm
Net Weight: 5.36kg - Gross Weight: 6.38kg
Feature
Low power consumption
8/16 bit smooth and precise resolution for PAN/TILT movement
50,000 hours life span and low power consumption
Cooling system
16°-60° zoom lens
CTB and CTO,linear colour temperature 2800K-8000K changable
Flicker free sources management
