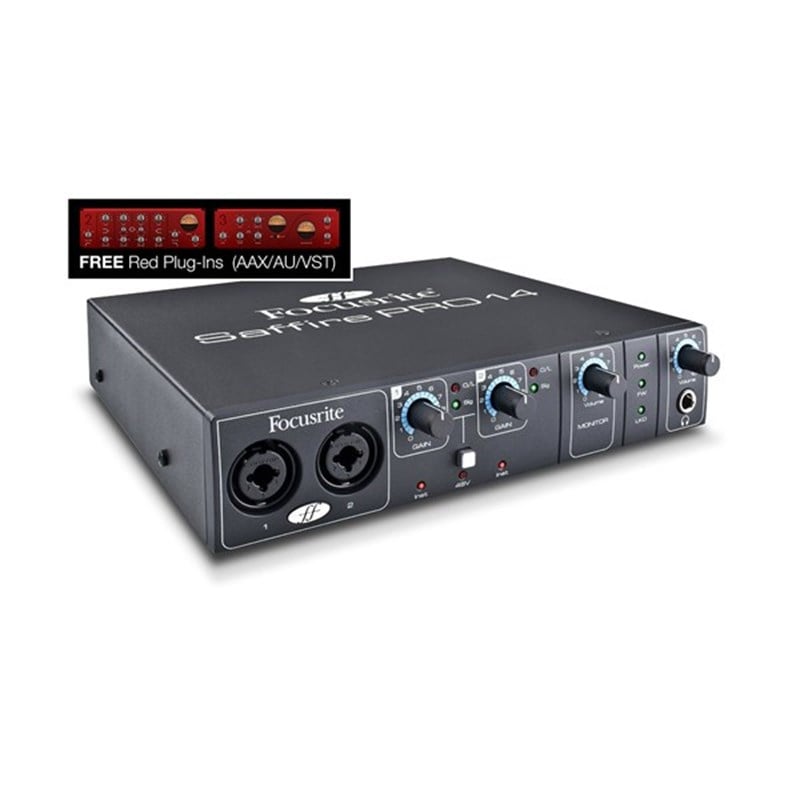

Focusrite Saffire PRO 14 Firewire 8 input 6 out Ses Kartı
TEKNİK ÖZELLİKLER
Microphone Inputs 1-2
Frequency Response: 20Hz - 20kHz +/- 0.2 dB
Gain Range: +13dB to +60dB
Maximum Headroom +8dBu
THD+N: 0.001% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
Noise EIN: 124dB analogue to digital (measured at 60dB of gain with 150 Ohm termination (20Hz/22kHz bandpass filter)
Input Impedance: 2k Ohm
Line Inputs (Inputs 1-2)
Frequency Response: 20Hz - 20kHz +/- 0.2dB
Gain Range: -10dB to +36dB
THD+N: 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
Noise: -90dBu (22Hz/22kHz bandpass filter)
Input Impedance: >10k Ohm
Line Inputs 3-4
Frequency Response: 20Hz - 20kHz +/- 0.2 dB
Gain Range: Switch-able between +16dBu or -10dBV for 0dBFS (balanced inputs) THD+N: 0.003% (measured at 1kHz with a 20Hz/22kHz bandpass filter)
Noise: -100dBu (22Hz/22kHz bandpass filter)
Input Impedance: >10k Ohm
Instrument Inputs (Inputs 1 and 2)
Frequency Response: 20Hz - 20kHz +/- 0.1dB
Gain Range: +13dB to +60dB
THD+N: 0.004% (measured with 0dBu input and 20Hz/22kHz bandpass filter)
Noise: -87dBu (20Hz/22kHz bandpass filter)
Analogue Audio Outputs (Outputs 1-4)
4 Electronically Balanced Outputs
Maximum Output Level (0dBFS): +10dBu
THD+N: 0.001% (0dBFS input, 20Hz/22kHz bandpass filter)
Crosstalk (Channel Isolation)
Any input to input: > 100dB
Any output to output: > 100dB
Any input to output: > 100dB
DIGITAL PERFORMANCE
A/D Dynamic Range > 109dB (A-weighted), all analogue inputs
D/A Dynamic Range > 106dB (A-weighted), all analogue outputs
Clock Sources: - Internal Clock - Sync to Word Clock on SPDIF Input (RCA)
JetPLLTM PLL technology providing superb jitter reduction for class leading converter performance
Clock jitter < 250 picoseconds
Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
8 input channels to computer: Analogue (4), SPDIF (2) and Loop-back (2)
6 physical output channels from computer: Analogue (4), SPDIF (2)
12 DAW output streams
Assignable 18 input by 6 output mixer
Weight and Dimensions
1.5kg / 3.3lbs
215mm (W) x 45mm (H) x 220mm (D) (8.5 x 1.8 x 8.7 inches)
Connectivity
Analogue Channel Inputs (Inputs 1-2)
2 Mic XLR Combo (channels 1-2) on front panel
2 Line 1⁄4” TRS (channels 3-4) on rear panel
Automatic switching between Mic / Line (channels 1-2)
Switching between Line / Instrument Inputs (channels 1-2) via Saffire MixControl Application
Switching between +16dBu (low) and -10dBV (high) gain on inputs 3-4 via Saffire MixControl Application
Digital Channel Inputs (Inputs 5-6) 44.1 - 96kHz
Stereo S/PDIF input on RCA
Analogue Audio Outputs (Outputs 1-4)
4 1⁄4” TRS Jacks
Output Level control (analogue) for outputs 1 and 2
Stereo Headphones Mix 1 on 1⁄4” TRS (also routed to Outputs 3 & 4) with independent volume control
Digital Channel Outputs (Outputs 5-6) 44.1 - 96kHz
Stereo S/PDIF Output on RCA
Other I/O
1x 6 pin Firewire 400 socket - also compatible with Firewire 800 and Thunderbolt
2 Standard 5-pin DIN MIDI connectors: In and Out
DC Power Input Connector (for use with supplied universal input power supply)
Front Panel Indicators
2 2 segment input meters, Sig (-18) and O/L (0dBFS)
“LKD” Locked Indicator
“FW” Host Connected Indicator
“Power” Indicator
Instrument input source selection LED for channels 1 and 2
Phantom Power (48V) switch and LED for inputs 1 and 2
