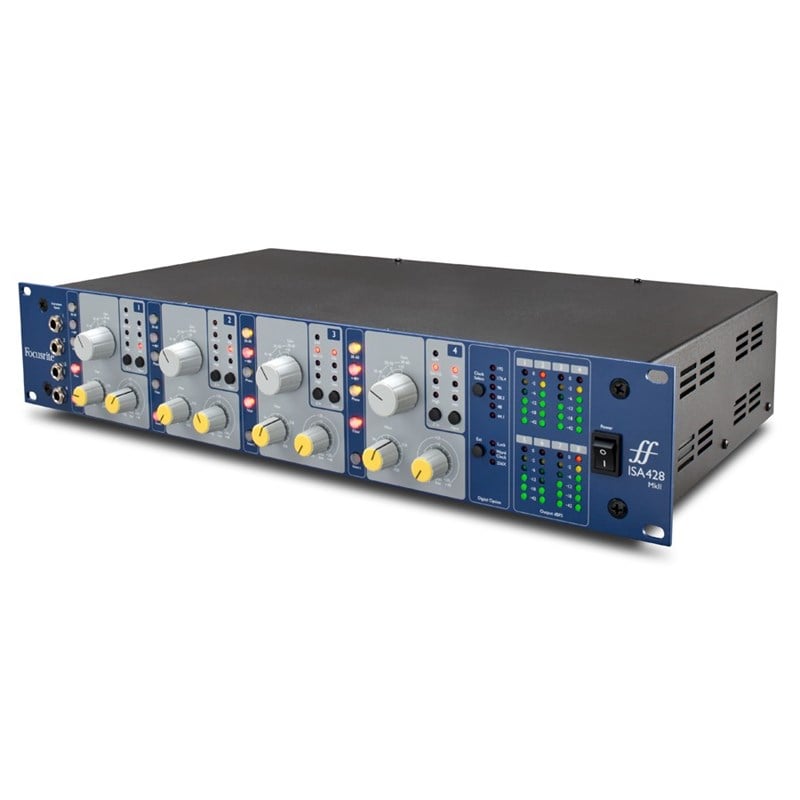

Focusrite ISA 428 MkII 4 Kanal Analog Mikrofon Preamplifikatörü
Focusrite ISA 428 MkII 4 Kanal Analog Mikrofon Preamplifikatörü
Focusrite ISA 428 MkII 4 Kanal Analog Mikrofon Preamplifikatörü
Focusrite ISA 428 MkII 4 Kanal Analog Mikrofon Preamplifikatörü

Focusrite ISA 428 MkII 4 Kanal Analog Mikrofon Preamplifikatörü

Marka : Focusrite
Fiyat : $3,074.09(KDV Dahil)
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

Focusrite ISA 428 MkII 4 Kanal Analog Mikrofon Preamplifikatörü


ISA 428 MkII anahtarlanabilir empedans ve entruman girişleri ile birlikte dört klasik trafo-temelli mikrofon preamplifikatörünü opsiyonel sekiz kanal AD kartı ile birleştirmektedir. Soft-limiter devresi A/D kartını desteklerken herhangi bir DAW, sayısal konsol veya sabit disk kayıtçıya mükemmel sinyal yolunu sağlar. Focusrite ISA 428 MkII 4 Kanal Analog Mikrofon Preamplifikatörü giriş katı dört özenle seçilmiş giriş empedans ayarı arasında seçim yapmanıza izin veren gelişmiş kontrol ve yaratıcılık sunar. Tam dijital metreleme her kanal için hareketli bobin peak metrelerin yanında en hızlı transientleri dahi yakalayacak şekilde tasarlanmıştır. Focusrite ISA 428 MkII 4 Kanal Analog Mikrofon Preamplifikatörünü uygun fiyat ve taksit seçenekleri ile www.medumuzikmarket.com dan satın alabilirsiniz.


Teknik Özellikleri



Mic Inputs

  • Frequency response at minimum gain (0dB): -0.35dB at 20Hz and –3dB at 122kHz
  • Frequency response at maximum gain (60dB): –2.5dB at 20Hz and –3dB 103kHz
  • Gain range: 0dB to +60dB in 10dB steps, plus 0dB to +20dB continuously variable trim
  • Maximum headroom: +7.4dBu
  • THD+N: 0.0009% (measured at 1kHz -20dBu input signal, at 30dB gain setting, with a 20Hz/22kHz bandpass filter)
  • Noise EIN: -126dB (measured at 60dB of gain with 150Ω termination and 20Hz/22kHz bandpass filter)
  • Noise at main output with unity gain: -98dBu (measured with a 20Hz/22kHz bandpass filter)
  • SNR: 123dB (relative to max output 25dBu)
  • SNR: 120dB (relative to 0dBFS (+22dBu)
  • CMRR: 88dB.
  • Input Impedance, variable: 600Ω, 1400Ω, 2400Ω, 6800Ω



Line Inputs

  • Frequency Response at unity gain (0dB): -0.3dB at 20Hz and –3dB at 94kHz
  • Gain range: -20dB to +10dB in 10dB steps, plus 0dB to +20dB continuously variable trim
  • Maximum headroom: +25.4dBu
  • THD+N: 0.002% (measured with +4dBu input signal, 0dB gain setting, with a 20Hz/22kHz bandpass filter)
  • Noise at main output with unity gain: -91dBu (measured with a 20Hz/22kHz bandpass filter)
  • SNR: 116dB (relative to max output 25dBu)
  • SNR: 113dB (relative to 0dBFS +22dBu). Input Impedance: 10kΩ



Instrument Inputs

  • Frequency Response at +10dB gain: -0.2dB at 20Hz and 0dB at 200kHz
  • Frequency Response at +40dB gain: -3dB at 20Hz and –3dB at 38.4kHz
  • Gain range: +10dB to +40dB continuously variable
  • Maximum headroom: +11.5dBu
  • THD+N: 0.006% (measured with –20dBu input signal, at minimum gain (+10dB), with a 20Hz/22kHz bandpass filter)
  • Noise at main output with minimum gain (+10dB): -95dBu (measured with a 20Hz/22kHz bandpass filter)
  • Input Impedance = >1MΩ



High Pass Filter

  • Roll off = 18dB per octave 3 pole filter
  • Frequency range: 16Hz to 420Hz (continuously variable, measured at the 3dB down point)



Meters

6 LED meter is calibrated 0dBFS = +22dBu (the maximum level which can be correctly converted by the optional internal A/D converter before overload occurs). The meter calibration points are as follows:

  • Meter panel calibration value in dBFS / Equivalent dBu value
  • 0dBFS / +22dBu
  • -2dBFS / +20dBu
  • -6dBFS / +16dBu
  • -12dBFS / +10dBu
  • -18dBFS / +4dBu
  • -42dBFS / -20dBu

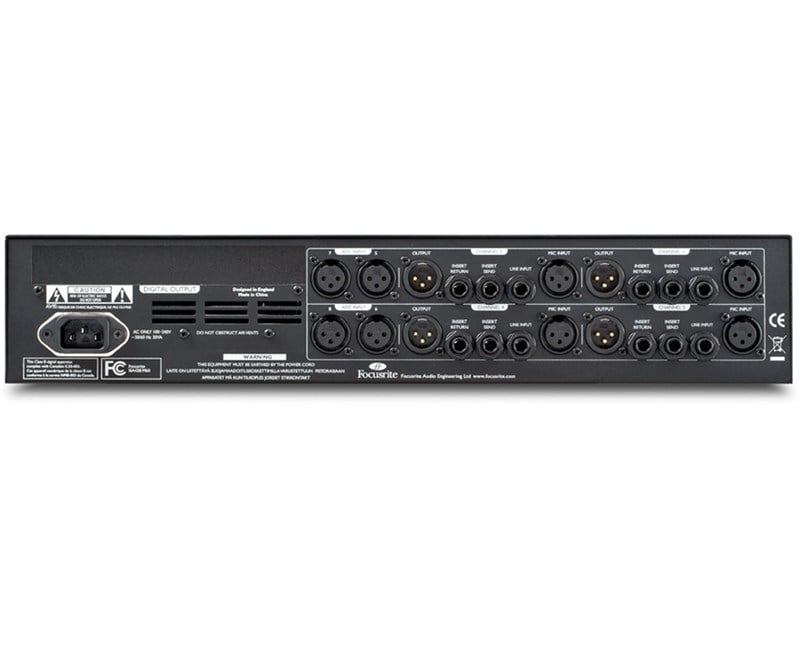

  • Front and rear connectivity



Analogue Channel Inputs (Inputs 1-4)

  • 4 instrument 1⁄4” TS jack inputs on front panel
  • 4 microphone XLR inputs on rear panel
  • 4 line 1⁄4” TRS jacks on rear panel
  • 4 insert return 1⁄4” TRS jacks on rear panel
  • 4 ADC XLR inputs on rear panel



Analogue Audio Outputs (Outputs 1-4)

  • 4 line XLR outputs on rear panel
  • 4 insert send 1⁄4” TRS jacks on rear panel



Other I/O

  • IEC power input connector 100Vac – 240Vac

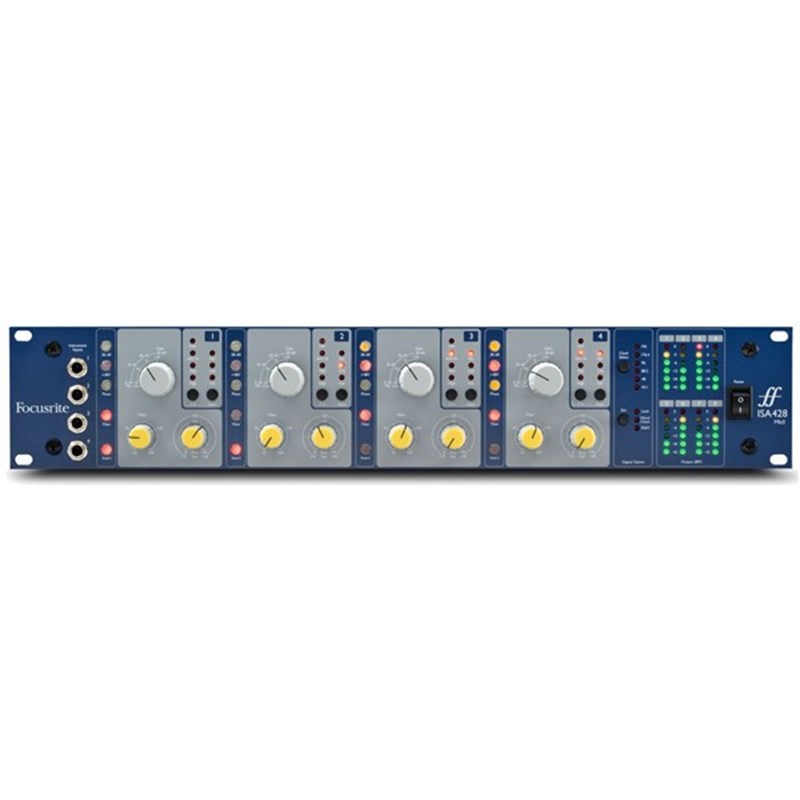

Front Panel Indicators

  • 8 output meters, 6 segment
  • 4 30-60 mic gain range selection indicator
  • 4 +48V phantom power indicator
  • 4 Phase indicator
  • 4 Insert In indicator
  • 4 Filter In indicator
  • 4 Input selection indicators (Mic, Line, Inst)
  • 4 Z In microphone input impedance selection indicators (Low, ISA110, Med, High) Clock select indicators (44.1, 48, 88.2, 96, 176.4, 192)
  • Ext clock indicators (Lock, Word clock, 256X)
