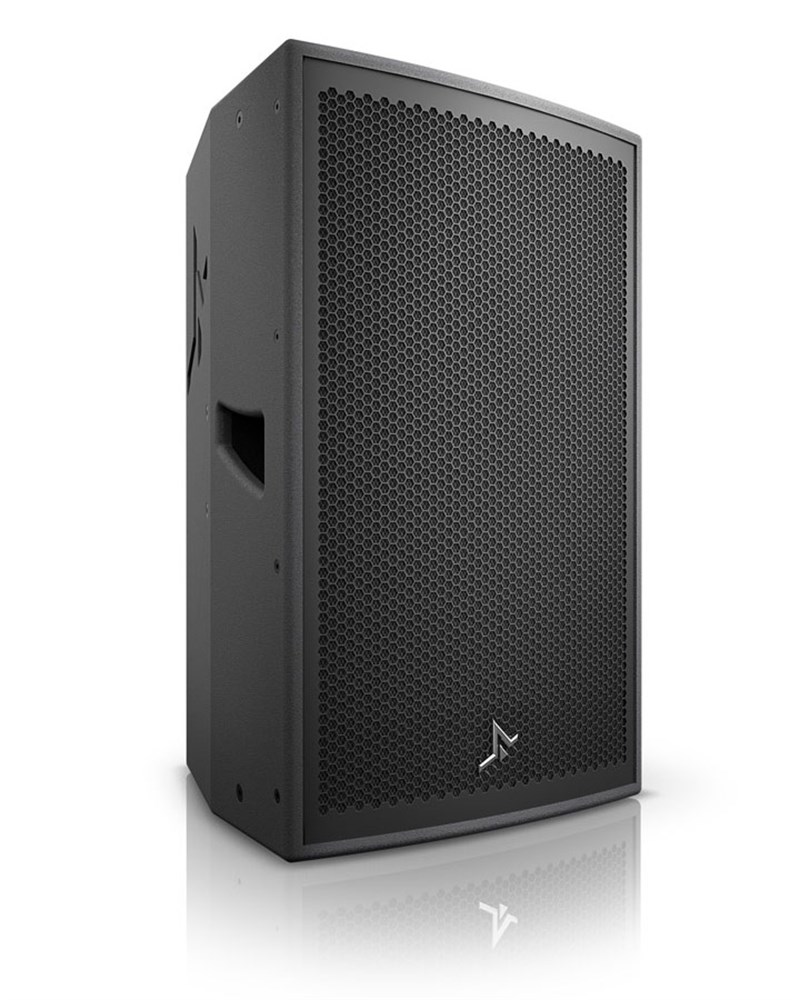

Fane SV-15 - 15'' 600 Watt Rms Pasif Kabin Hoparlör
Power Handling 600 W RMS (AES)
Program Power Handling 1200 W
Peak Power Handling 2400 W
Nominal Impedance 8 Ω
Average Sensitivity 98 dB @ 1W/1m
Calculated Max SPL / 1m 126 dB continuous
Max SPL (Program) 129 dB
Max SPL (Peak) 132 dB
Frequency Response (-6dB) 48 - 19000 Hz
Manufacturing Consistency ± 3 dB from 200 to 10,000 Hz
Nominal Directivity (-6dB) 80° x 60°
Recommended Amplifier ≤ 1200 W @ 8Ω
Recommended Low Cut (Full Range) 40 Hz, 18 dB/ oct Butterworth
Recommended Low Cut (with sub) 60 to 140 Hz, 24 dB/ oct Linkwitz-Riley
Crossover Passive @ 2 kHz
Low Frequency Driver Fane transducer, 8Ω impedance, 15” (380 mm) diameter, 3” high temperature voice coil on glass fibre former
High Frequency Driver 1” (25 mm) exit, 1.75” (44 mm) voice coil, titanium diaphragm
Recommended Crossover N/a
Nominal Size 15 Inch
Type Two-Way, Passive
