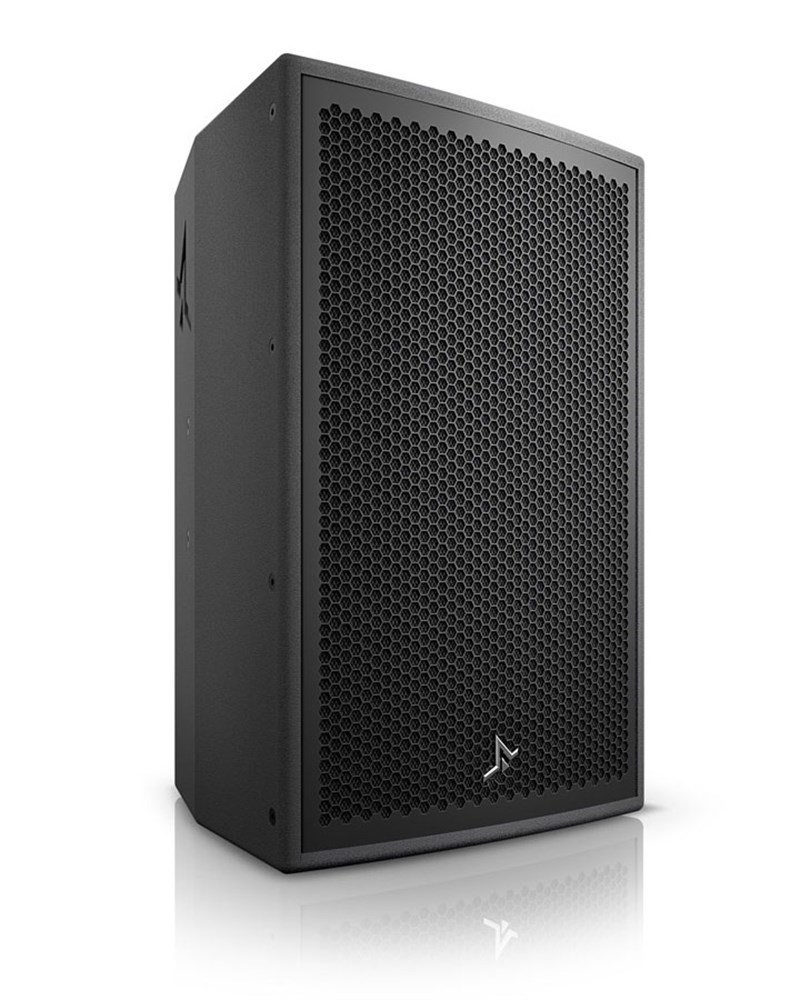

Fane SV-12 - 12 inch 300 Watt Rms Pasif Kabin Hoparlör
Power Handling 300 W RMS (AES)
Program Power Handling 600 W
Peak Power Handling 1200 W
Nominal Impedance 8 Ω
Average Sensitivity 97 dB @ 1W/1m
Calculated Max SPL / 1m 122 dB continuous
Max SPL (Program) 125 dB
Max SPL (Peak) 128 dB
Frequency Response (-6dB) 50 - 19000 Hz
Manufacturing Consistency ± 3 dB from 200 to 10,000 Hz
Nominal Directivity (-6dB) 80° x 60°
Recommended Amplifier ≤ 600 W @ 8Ω
Recommended Low Cut (Full Range) 45 Hz, 18 dB/ oct Butterworth
Recommended Low Cut (with sub) 60 to 140 Hz, 24 dB/ oct Linkwitz-Riley
Crossover Passive @ 2.2 kHz
Low Frequency Driver Fane transducer, 8Ω impedance, 12” (300 mm) diameter, 3” high temperature voice coil on glass fibre former
High Frequency Driver 1” (25 mm) exit, 1.75” (44 mm) voice coil, titanium diaphragm
Recommended Crossover N/a
Nominal Size 12 Inch
Type Two-Way, Passive
