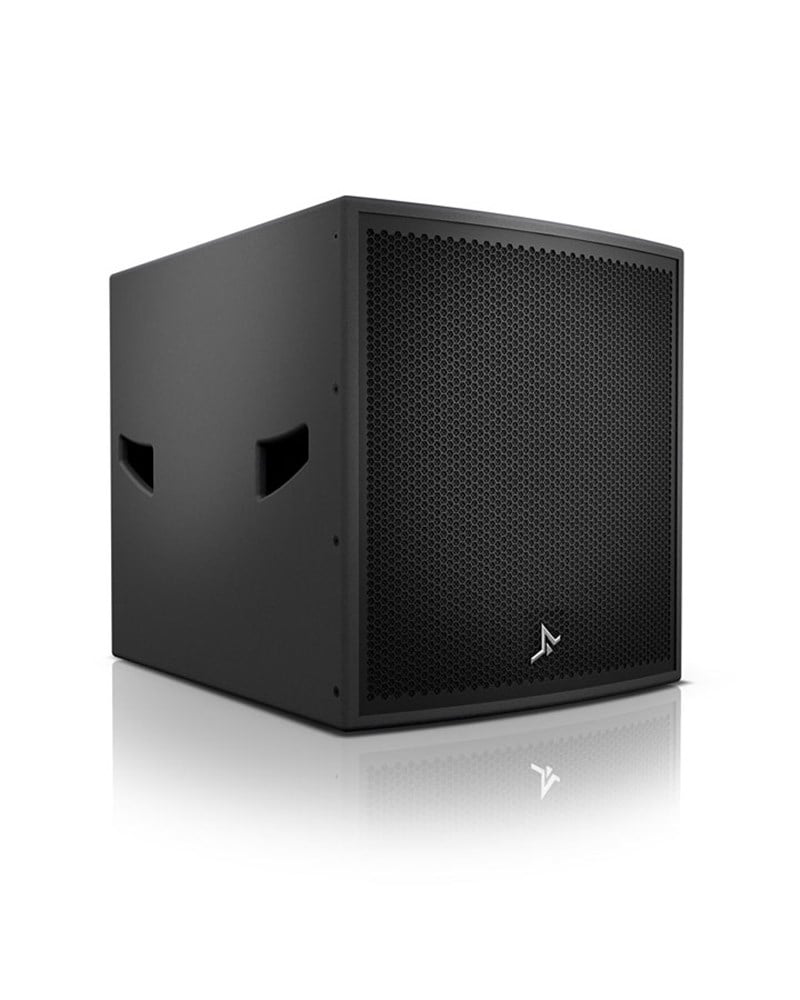

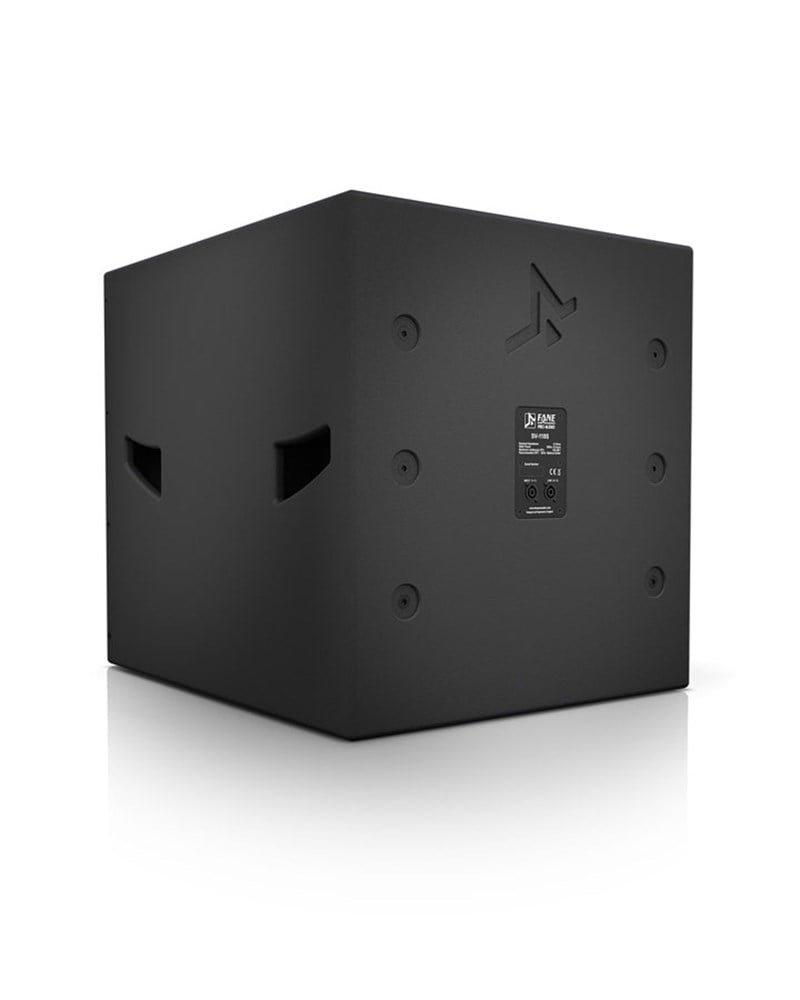

Fane SV-118S 18'' 800 Watt Rms Pasif Subbass Hoparlör
Power Handling 800 W RMS (AES)
Program Power Handling 1600 W
Peak Power Handling 3200 W
Nominal Impedance 8 Ω
Average Sensitivity 99 dB @ 1W/1m
Calculated Max SPL / 1m 128 dB continuous
Max SPL (Program) 131 dB
Max SPL (Peak) 134 dB
Frequency Response (-6dB) 30 - 1300 Hz
Manufacturing Consistency ± 3 dB from 100 to 1,000 Hz
Nominal Directivity (-6dB) Omnidirectional
Recommended Amplifier ≤ 1600 W @ 8Ω
Recommended Low Cut (Full Range) N/a
Recommended Low Cut (with sub) N/a
Crossover No, active usage only, Fane recommended DSP
Low Frequency Driver Fane transducer, 8Ω impedance, 18” (460 mm) diameter, 4” high temperature voice coil on glass fibre former
High Frequency Driver N/a
Recommended Crossover LPF 70 - 125 Hz, 24 dB/ Oct Butterworth/ Linkwitz-Riley
Nominal Size 18 Inch
Type Subwoofer
