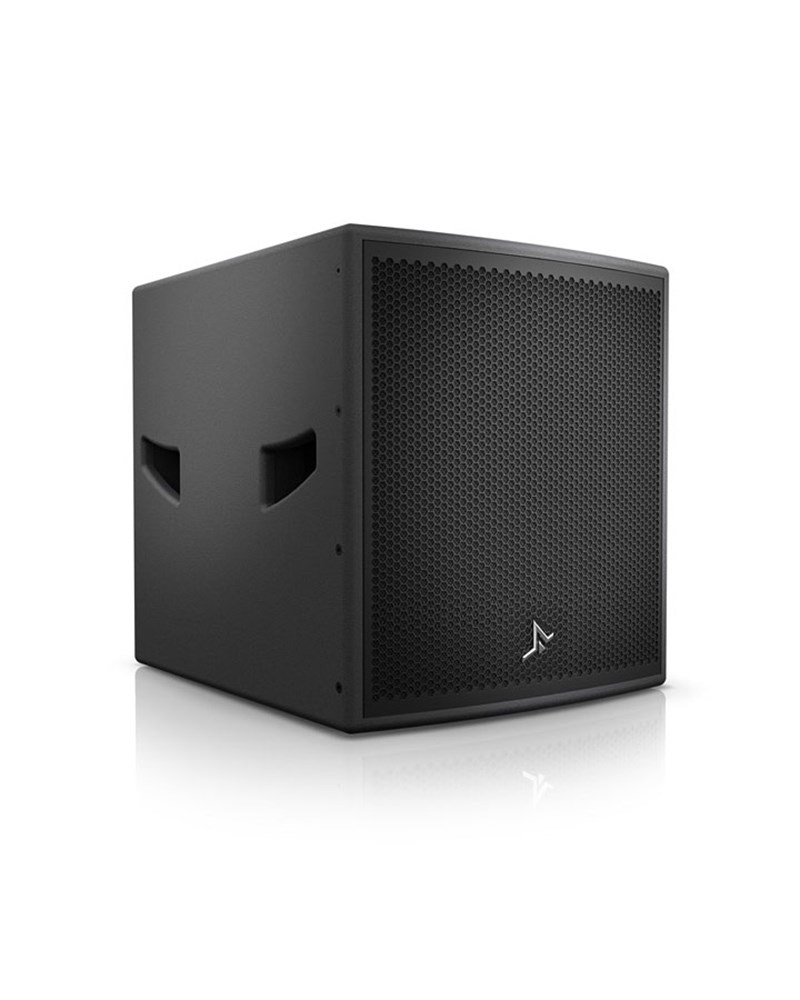

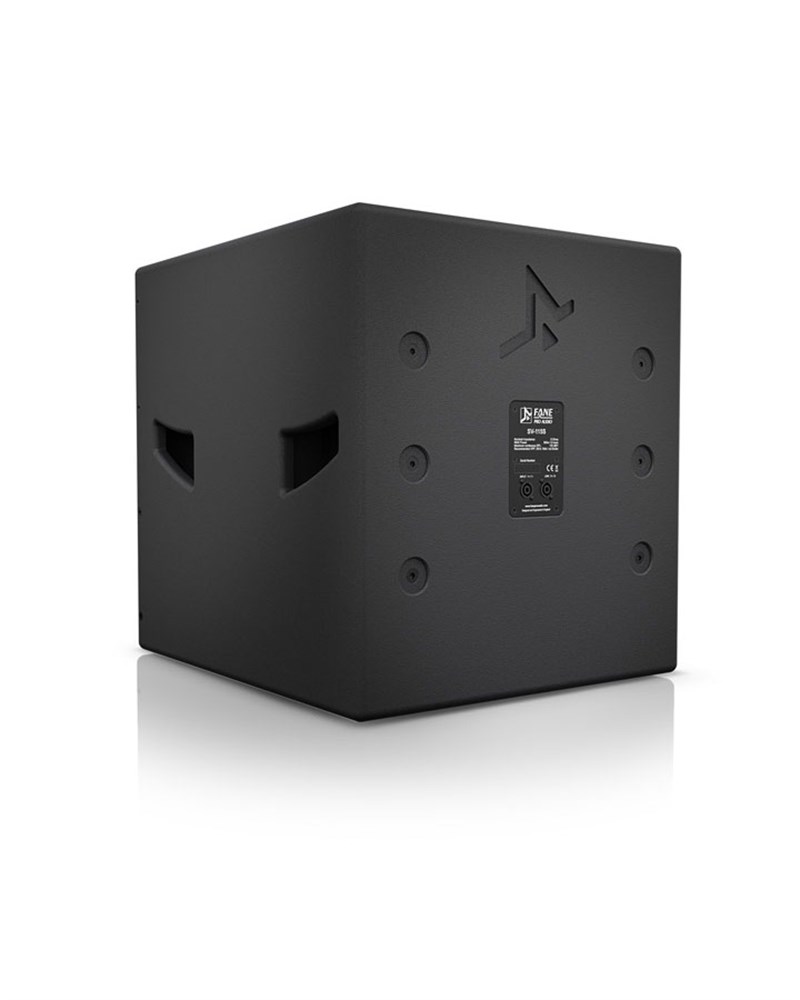

Fane SV-115S 15 inch 700 Watt Rms Pasif Subbass Hoparlör
Power Handling 800 W RMS (AES)
Program Power Handling 1600 W
Peak Power Handling 3200 W
Nominal Impedance 8 Ω
Average Sensitivity 97 dB @ 1W/1m
Calculated Max SPL / 1m 125 dB continuous
Max SPL (Program) 128 dB
Max SPL (Peak) 131 dB
Frequency Response (-6dB) 39 - 2500 Hz
Manufacturing Consistency ± 3 dB from 100 to 1,000 Hz
Nominal Directivity (-6dB) Omnidirectional
Recommended Amplifier ≤ 1200 W @ 8Ω
Recommended Low Cut (Full Range) N/a
Recommended Low Cut (with sub) N/a
Crossover No, active usage only, Fane recommended DSP
Low Frequency Driver Fane transducer, 8Ω impedance, 15” (380 mm) diameter, 4” high temperature voice coil on glass fibre former
High Frequency Driver N/a
Recommended Crossover LPF 80 - 150 Hz, 24 dB/ Oct Butterworth/ Linkwitz-Riley
Nominal Size 15 Inch
Type Subwoofer
