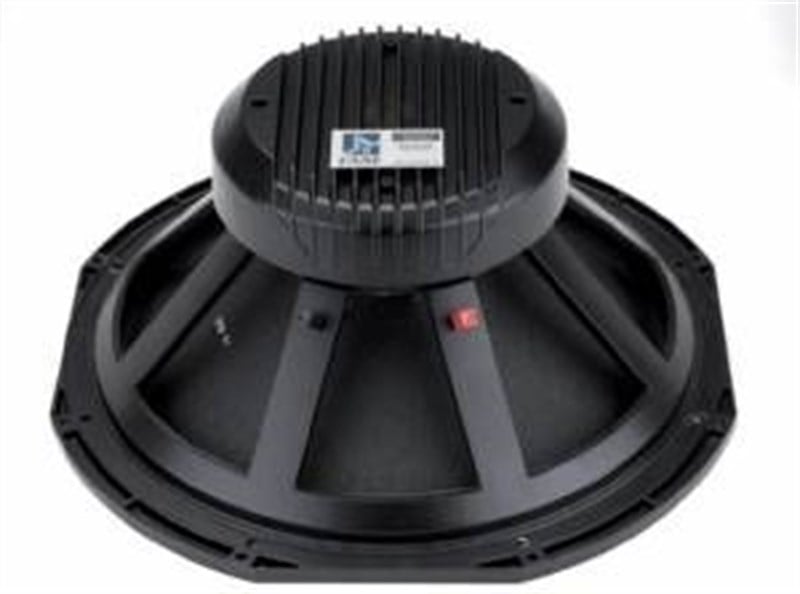

Fane COLOSSUS 18B600 18'' 600 Watt Subbass Çıplak Hoparlör
Nominal Chassis Diameter 18 inch/457 mm
Impedance 8 ½
Power Handling 600 (A.E.S.)1
Maximum Output Continuous/Peak 121/127 dB
Power Compression at Rated Power 4.6 dB
Usable Frequency Range (-6 dB) 30 Hz-1 kHz
Average Sensitivity (in above range) 1W/1m 98 dB
Resonance 30 Hz
Moving Mass inc. Air Load 148 grams
BL Product (Newtons/amp) 25.2
Minimum Impedance (Zmin) 7 ½
Effective Piston Diameter 14.84 inch/377 mm
Flux Density 1.04 Tesla
Magnetic Gap Depth 0.43 inch/11 mm
Coil Winding Height 0.87 inch/22 mm
Voice Coil Length 115 feet/35 m
Magnet Weight 120 oz/3.40 kg
Maximum Cone Displacement 0.70 inch/18 mm
Peak Displacement Volume of Cone, Vd 1.61 litres
Voice Coil Diameter 4.0 inch/102 mms
