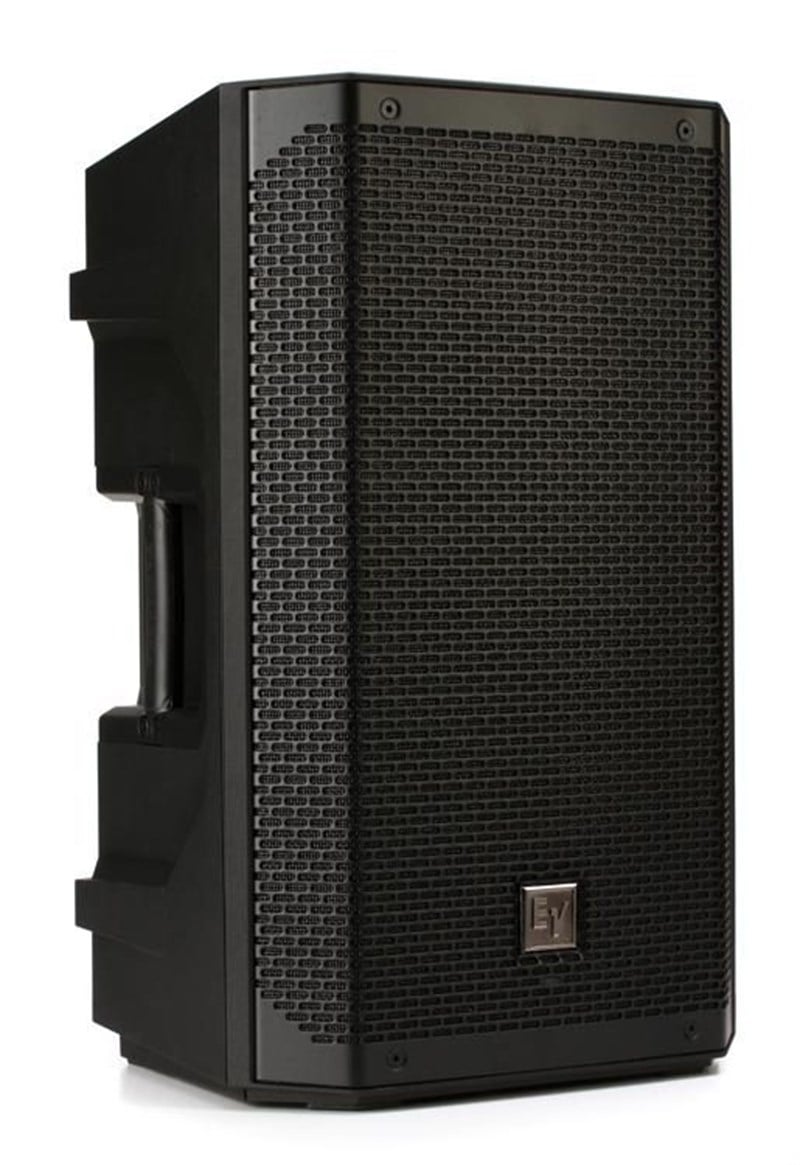

Electro-Voice ELX200-10 10 inç 1200W Pasif Kabin
Electro-Voice ELX200-10 10 inç 1200W Pasif Kabin
Electro-Voice ELX200-10 10 inç 1200W Pasif Kabin

Electro-Voice ELX200-10 10 inç 300W RMS Pasif Kabin

Fiyat : $1,021.17(KDV Dahil)

300W RMS, 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.

Electro-Voice ELX200-10 10 inç 300W RMS Pasif Kabin



300W RMS, 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.






Weight Net 29.54lbs (13.4kg)
Depth 12.56" (319mm)
Width 12.99" (330mm)
SPECIFICATIONS
Height 20.91" (531mm)
Available Color Black or White
Axial Sensitivity (SPL, 1 W @ 1 m) 90dB
Connector Type Dual NL4
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 60°
Crossover Frequency 2 kHz
Enclosure Material Polypropylene Composite
Family ELX200
Frequency Range (-10 dB) 49 Hz - 22 kHz

Grille 18 AWG steel with powdercoat
HF Transducer DH-1C 1-inch titanium compression driver
LF Transducer EVS-10M 254 mm (10 in)
Max. SPL/1m (calc) 127dB
Minimum Impedance 7.2Ω
Nominal Impedance 8Ω
Power Handling (Continuous / Peak) 300 W/1200W
Power Rating 1200W
Recommended High-Pass Frequency 55Hz
Shipping Weight 33.73lbs (15.3kg)
Speaker Type Full-Range
Suspension (3) M10 suspension points
Woofer Size 10inch
Frequency Response (-3 dB) 65 Hz - 20 kHz

Kullanma Kılavuzu

Aktif-Pasif
Pasif
Impedance
8 ohm
inç
10 inç
