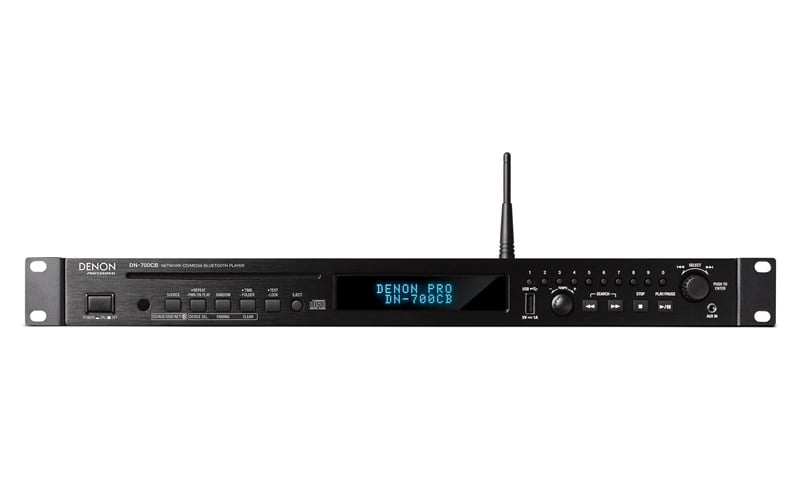

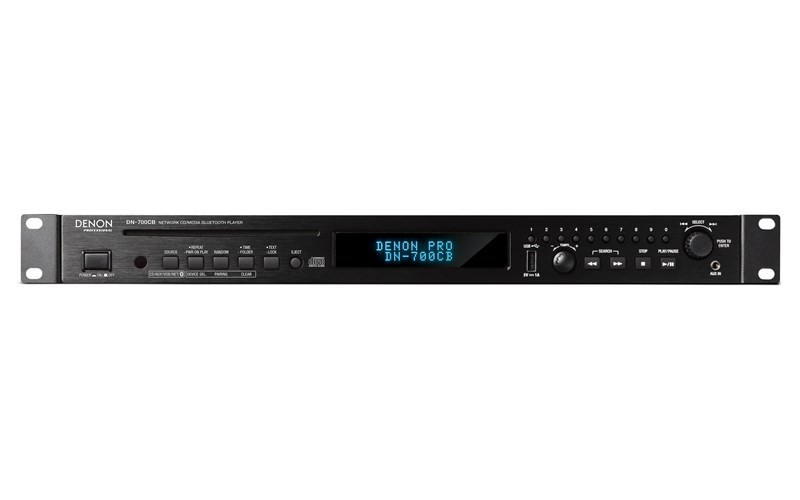

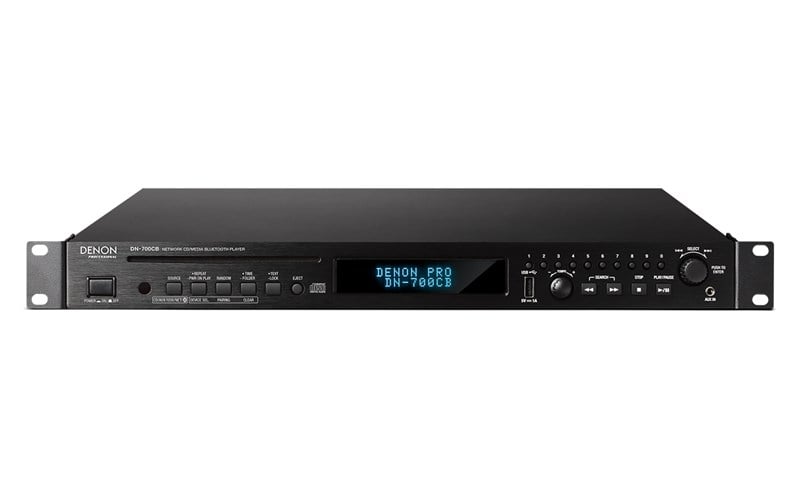

Denon DN-700CB Network CD/Media Bluetooth Player
System: Media player
Compatible Media
CD
3.5mm auxiliary device
Type A USB device (mass storage class)
Network-connected device (via Ethernet port)
Bluetooth audio
Supported Device Formats, File Systems
CD: CD-DA, CD-ROM (ISO9660), CD-R
USB: FAT16, FAT32
Supported File Formats (for CDs, USB devices and network-connected devices)
CD-DA: Sample rate: 44.1/48kHz
Bit rate: 16/24 bit
File extension: .cda
WAV: Sample rate: 44.1/48kHz
Bit rate: 16/24 bit
Format: stereo/mono
File extension: .wav
MP3: Sample rate: 44.1kHz
Bit rate: 32 kbps to 320 kbps, CBR and VBR
Format: MPEG1 Audio Layer 3
File extension: .mp3
Number of Channels: 2 (stereo)
Audio Frequency Range: 10 Hz - 20 kHz (± 1.0db)
Signal-to-Noise Ratio: > 90dB (A-weighted)
Total Harmonic Distortion: < 0.01%
Dynamic Range: > 85dB
Channel Separation: > 80dB
Bluetooth
Bluetooth Version: 4.0
Output Class: Class 2
Supported Bluetooth Profiles: A2DP, AVRCP (1.3/1.4)
Supported Bluetooth Codecs: SBC, MP3
Bluetooth Range: 82 ft. / 25 m

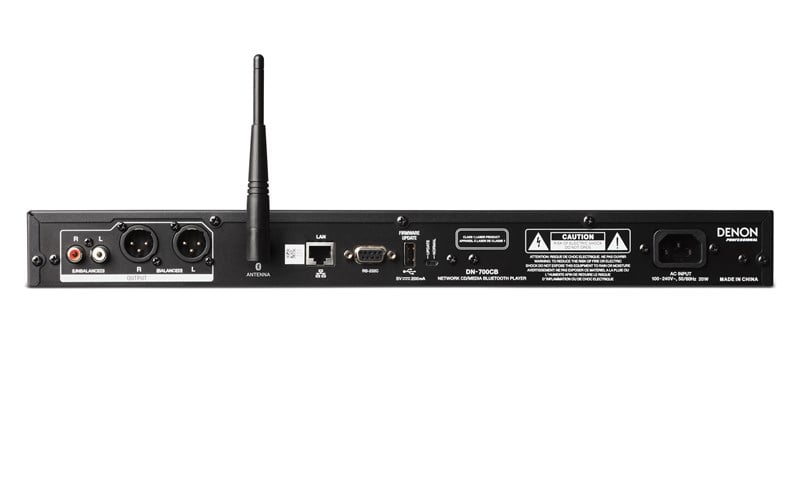

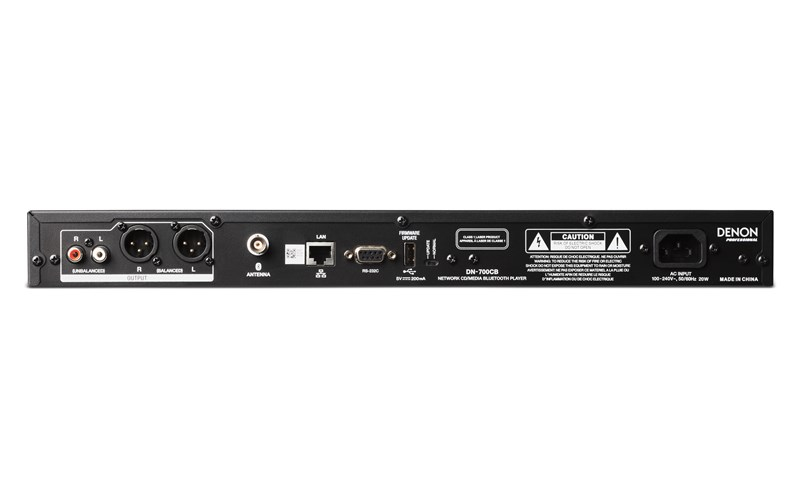

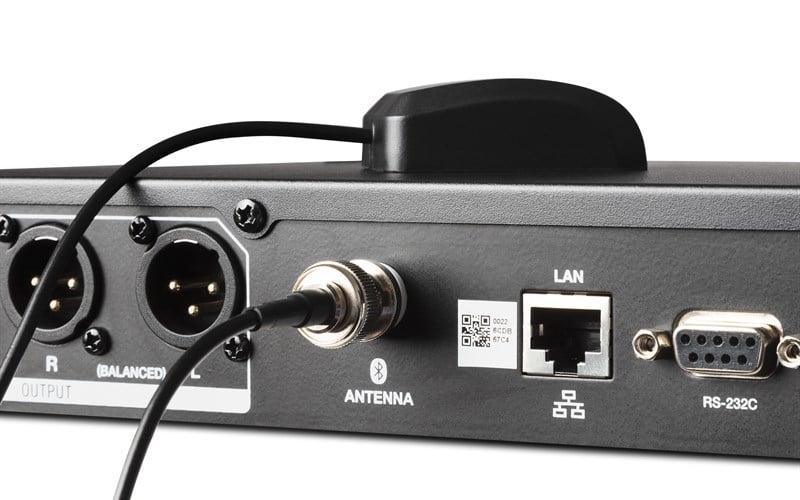

Outputs

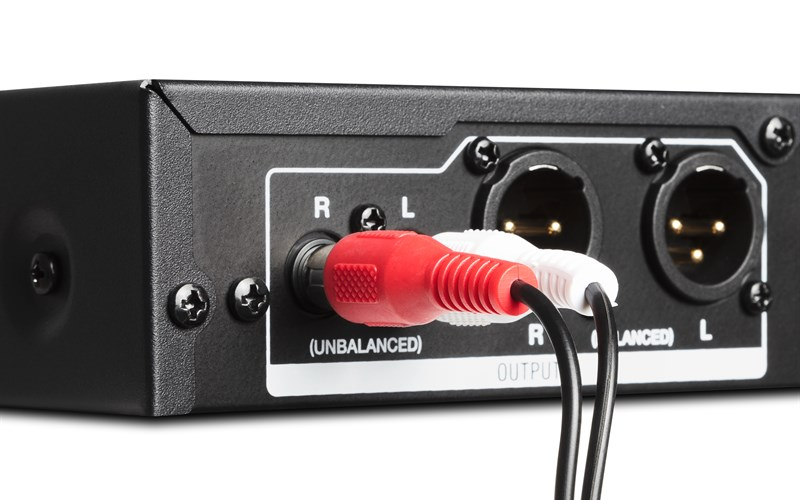

Analog Out L/R (unbalanced)
Type: RCA terminal
Load impedance: > 10 kΩ
Output level: 2 Vrms @ 10 kΩ load
Analog Out L/R (balanced)
Type: XLR
Load impedance: > 10 kΩ
Output level: +4 dBu
Inputs
Aux in
Type: 1/8" (3.5mm) TRS terminal
Input Impedance: > 10 kΩ
Maximum input level: 1 Vrms
Remote Control

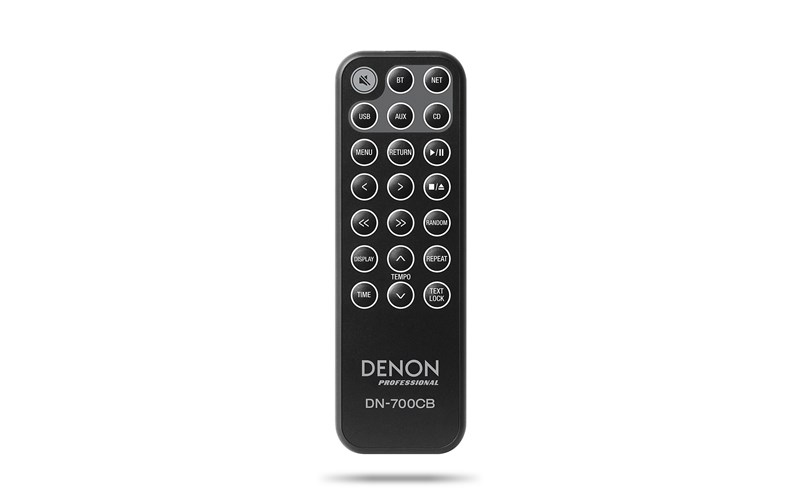

Included Remote
Infrared protocol: NEC format
Transmit output level: > 200mVp-p
Serial Remote (D-sub 9-pin Female; RS-232C), Not Included
Mode: Full Duplex
Baud Rate: 9600/38400/115200 b/s
Data: 8 bits (Start Bit: 1 bit; Stop Bit: 1 bit)
Parity: None; Flow Control: None
IP Control
Web API: HTTP
Other / General
File Folder Limits
Storage capacity: up to 2TB
File size: up to 2GB
File name length: up to 255 characters
Number of files: up to 999 (for 1 folder)
Number of folders: up to 999 folders (including the root directory)
Number of folder levels: up to 8 (including the root directory)
Folder name length: up to 255 characters
Power: 100-230 VAC, 50/60 Hz; Power consumption: < 30W
Environmental Conditions
Operating temperature: 41 - 95°F (5 -35°C)
Operating humidity: 25 - 85%, no condensation
Dimensions (width x depth x height)
18.98" x 1.69" x 7.87" (482 x 43 x 200mm) with rack ears
16.93" x 1.69" x 7.87" (430 x 43 x 200mm) without rack ears
Weight: 5.5 lb (2.5 kg)
