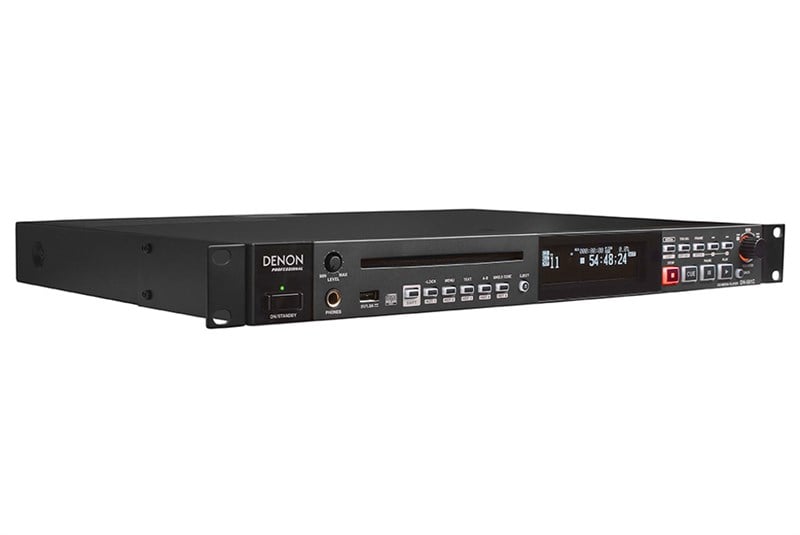

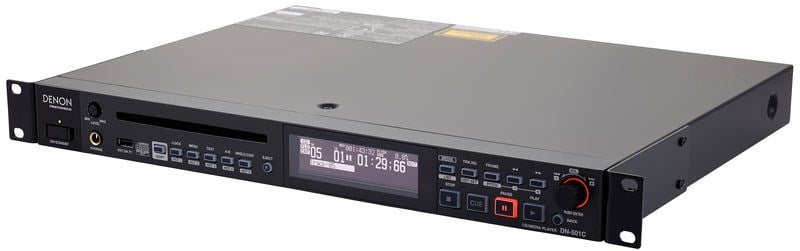

Denon DN-501C CD, Media Player, Audio Recording and Playback
Digital Audio System
System: CD/Media Player
Compatible media: CD Media, USB flash memory, USB HDD, iPod/iPhone
Playable formats, file systems
CD: CD-DA (CD TEXT), CD-ROM (ISO9660)
USB: FAT16/FAT32/HFS+
Playable WAV Format
Extension: WAV
Resolution: 16 bit, 24 bit
Sampling frequency: 96, 48, 44.1 kHz
Playable AIFF Format
Extension: AIFF, AIF
Resolution: 16 bit, 24 bit
Sampling frequency: 96, 48, 44.1 kHz
Playable MP3 Format
Extension: MP3
Bit rate: 32 – 320 kbps and VBR
Sampling frequency: 48, 44.1 kHz
Playable AAC Format
Extension: M4A
Compression method: AAC-LC
Bit rate: 64 – 320 kbps and VBR
Sampling frequency: 48, 44.1 kHz
Number of channels: 2 (stereo), 1 (mono)
Audio frequency characteristics: 20 Hz - 20 kHz (±0.5 dB)
S/N ratio: More than 105 dB (A-Weighted)
Total harmonic distortion: Less than 0.005 %
Dynamic range: More than 105 dB (for 24 bit WAV playback)
Channel separation: Less than –106 dB
Variable pitch width: –16 % – +16 % (0.1% step)
Variable Output trim adjustment width: ±2.0dB (0.1dB step)

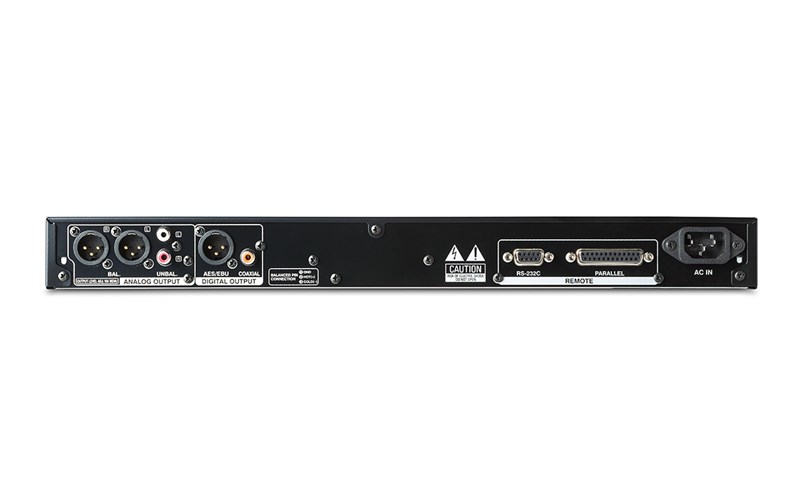

Output
0 dBu=0.775 Vrms
0 dBV=1.0 Vrms
BALANCED ANALOG OUT L/R
Type: XLR (1:GND, 2:Hot, 3:Cold)
Load impedance: Over 600 Ω/ohms
Output level: +6dBV (+8.23dBu)(600Ω/ohms Load)
Output level setting: +24dBu, +20dBu, +18dBu,+6dBV (0dBFS Reference)
UNBALANCED ANALOG OUT L/R
Type: RCA terminal
Load: impedance Over 10 kΩ/kohms
Output level: +6dBV (10kΩ/kohms Load)
Output level setting: +10dBV, +6dBV, +4dBV (0dBFS Reference)
BALANCED DIGITAL OUT
Type: XLR(1:GND, 2:Hot, 3:Cold)
Output impedance: 110 Ω/ohms
Format: IEC-60958(AES/EBU)
UNBALANCED DIGITAL OUT
Type RCA terminal
Output impedance: 75 Ω/ohms
Standard output level: 0.5 Vp-p
Format: IEC-60958(COAXIAL)
HEADPHONE OUT
20 mW/32 Ω/ohms
Others
Maximum storage capacity: Up to 2 TB
Maximum file size: 2 GB
Maximum number of files: 2000 files (for 1 folder)
Maximum number of folders: 1000 folders
Maximum number of folder hierarchies: 8 (under the root directory)
Maximum file name length: 255 characters
Maximum folder name length: 255 characters
Environmental Conditions
Operating temperature: 5 – 35 °C
Operating humidity: 25 – 85 %, no condensation
Storage temperature: –20 – 60 °C
General
Power supply
AC 120 V, 60 Hz (U.S.A and Canada models)
AC 230 V, 50/60 Hz (European, U.K and Asia/Pacific models)
Power consumption
30 W
0.4 W (standby)
Dimensions (width x depth x height, with rack ears)
19.00” x 12.78” x 1.73” (483 mm x 325 mm x 44 mm)
Weight
8 lbs 13.10 oz (4,0 kg)
