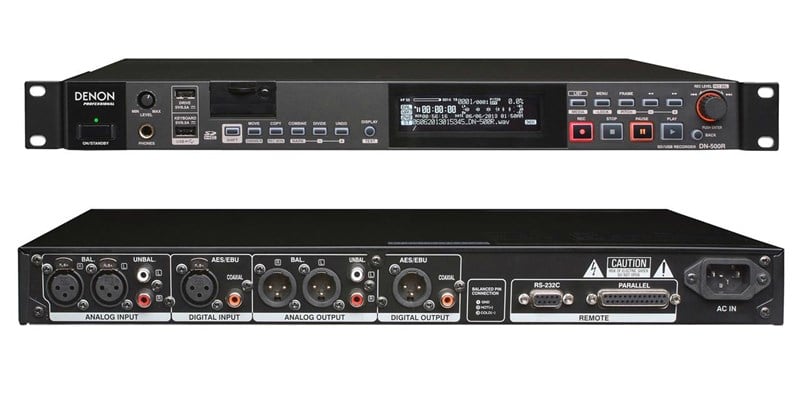

Denon DN-500 R MP3, WAV, AIFF, AAC Playback USB Audio Recorder
File Format Specifications
Compatible media: SD/USB memory/USB HDD
Playable formats, file systems: SD, USB: FAT16/FAT32/HFS+
Playable WAV Format
Extension: WAV, AIFF, AIF
Resolution: 16 bit, 24 bit
Sampling frequency: 96, 48, 44.1 kHz
Playable MP3 Format
Extension: MP3
Bit rate: 32 – 320 kbps and VBR
Sampling frequency: 48, 44.1 kHz
Playable AAC Format
Extension: M4A
Compression method: AAC-LC
Bit rate: 64 – 320 kbps and VBR
Sampling frequency: 48, 44.1 kHz
Audio Specifications
Number of channels: 2 (stereo), 1 (mono)
Audio frequency characteristics: 20 Hz – 20 kHz (+0.5 dB / –1 dB)
S/N ratio: More than 89 dB (A-Weighted)
Total harmonic distortion: Less than 0.01 %
Dynamic range: More than 106 dB (for 24 bit WAV playback)
Channel separation: Less than –90 dB
Variable pitch width: –16 % – +16 %
Variable trim adjustment width: ±2.0 dB
INPUT - Balanced Analog IN L/R
Type: XLR (1:GND, 2:Hot, 3:Cold)
Input level: +4 dBu
Maximum input level: +24 dBu/+20 dBu/+18 dBu
Input impedance: 20 kΩ
INPUT - Unbalanced Analog IN L/R
Type: RCA terminal
Input level: –10 dBV
Maximum input level: +10 dBV/+6 dBV/4 dBV
Input impedance: 10 kΩ
INPUT - Unbalanced Digital IN
Type: RCA terminal
Input impedance: 75 Ω
Standard input level: 0.5 Vp-p
Format IEC-60958(COAXIAL)
INPUT - Balanced Digital IN
Type: XLR (1:GND, 2:Hot, 3:Cold)
Input impedance: 110 Ω
Standard input level: 3.5 Vp-p
Format: IEC-60958(AES/EBU)
OUTPUT - Balanced Analog L/R
Type: XLR (1:GND, 2:Hot, 3:Cold)
Load impedance: Over 600 Ω
Output level: +4 dBu at 600 Ω load
Maximum Output level: +24 dBu/+20 dBu/+18 dBu
OUTPUT - Unbalanced Analog L/R
Type: RCA terminal
Load impedance: Over 10 kΩ
Output level: –10 dBV
Maximum output level: +10 dBV/+6 dBV/+4 dBV
OUTPUT - Balanced Digital
Type: XLR (1:GND, 2:Hot, 3:Cold)
Output impedance: 110 Ω
Standard output level: 3.0 Vp-p
Format: IEC-60958(AES/EBU)
OUTPUT - Unbalanced Digital
Type: RCA terminal
Output impedance: 75 Ω
Standard output level: 0.5 Vp-p
Format: IEC-60958(COAXIAL)
OUTPUT - Headphone Out
20 mW/32 Ω
Other
Maximum storage capacity: Up to 2 TB
Maximum file size: 2 GB
Maximum number of files: 2000 files (for 1 folder)
Maximum number of folders: 1000 folders
Maximum number of folder hierarchies: 8 (under the root directory)
Environmental
Operating temperature: 5 – 35 °C
Operating humidity: 25 – 85 %, no condensation
Storage temperature: –20 – 60 °C
General
Power supply (U.S.A and Canada models): AC 120 V, 60 Hz
Power Supply (European, U.K and Asia/Pacific models): AC 230 V, 50/60 Hz
Power consumption: 30W (typical), 0.4W (standby)
Dimensions (L x W x H): 19" x 13" x 1.74" (483 x 330 x 44 mm)
Weight: 7 lbs 14.99 oz (3.6 kg)
