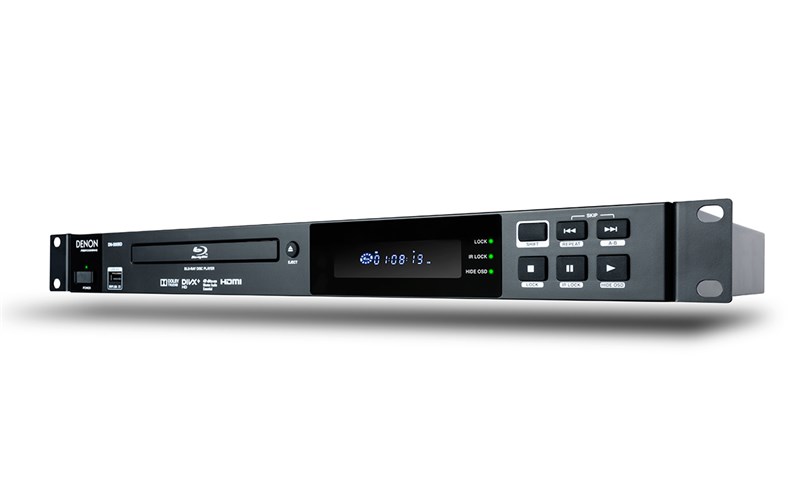

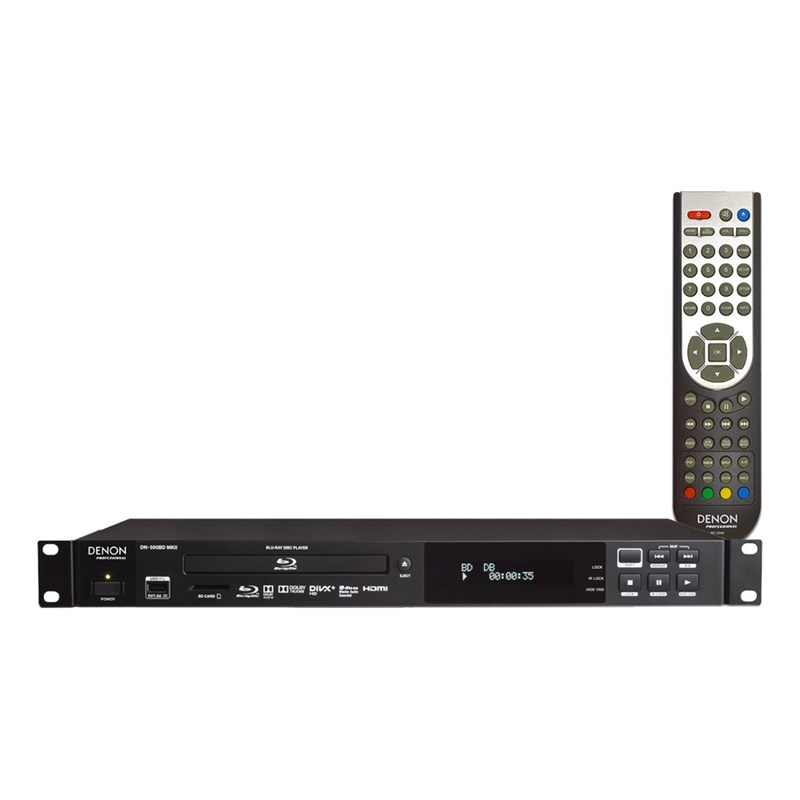

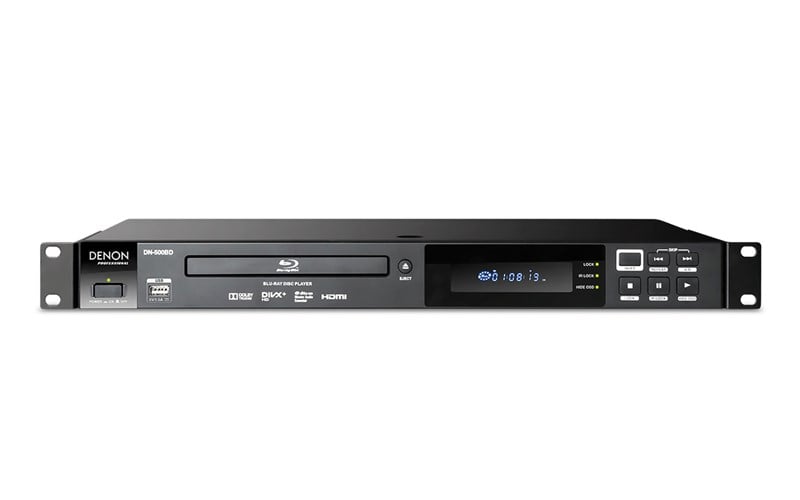

Denon DN-500 BDMKII Blu-Ray, DVD and CD Player
Blu-Ray
DVD and CD Player
Support BD-Video, BD-R, BD-RE
DVD-Video, DVD-Audio, DVD+R
DVD+RW, Panel lock function
IR remote lock function
Power on play function
Default repeat setting
RS-232C and IP control
XLR balanced audio output
7.1ch audio analog output
Digital System
System
Digital media player (Blu-ray Disc, DVD, CD, USB device [mass storage class]) AVCHD playback format
Supported Disc Formats
Blu-ray Disc: BD25, BD50, BD-ROM, BD-R, BD-RE
DVD: DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
CD: CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD), Video CD (VCD)
Supported File Formats
Video: .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmv
Subtitles: .ass, .smi, .srt, .ssa, .sub
Audio: .ape, .flac, .m4a (AAC), .mp3, .wav, .wma
Picture: .gif, .jpg (or .jpeg), .png
Supported File Systems
FAT16, FAT32, NTFS
USB drive (mass storage class) with < 2 TB total capacity
Video
Resolutions Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080p
Aspect Ratios 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
System NTSC, PAL, Multi (if supported by TV)
HDMI Color Space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr 4:2:2
Output: HDMI > v1.4 (3D), HDCP 1.4
Decoding
Video: DivX 3, 4, 5, 6; DivX HD; MPEG-1; MPEG-2; MPEG-4; MPEG-4 AVC (H.264); VC-1 (Windows Media Video); Xvid
Audio: AAC; Dolby Digital; Dolby Digital Plus; Dolby TrueHD; DTS Digital Surround; DTS-HD; WMA
Audio
Analog Outputs
Output Level (balanced XLR): +4 dBu = +1.786 dBV
Output Level (unbalanced RCA): +6 dBV
Digital Output
Output Level (coaxial): 0.5V, 75Ω
Signal Format: AES/EBU
Surround Audio
DTS-Master Audio, DTS-HD High Resolution Audio, DTS Digital Surround, Dolby TrueHD, Dolby Digital (AC-3), Dolby Digital Plus (7.1ch)
Frequency Response: 20 Hz – 20 kHz (+0.5 dB)
Signal-to-Noise Ratio: > 100 dB (A-weighted)
Total Harmonic Distortion: < 0.05%
Dynamic Range: > 100 dB (A-weighted)
Headroom: 6 dB
Channel Separation: > 90 dB

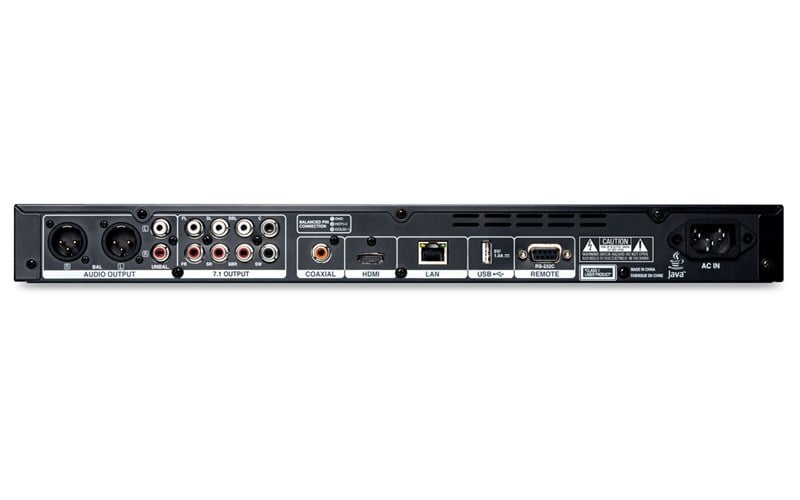

Outputs
(2) XLR audio outputs (L/R, balanced)
(2) RCA audio outputs (L/R, unbalanced)
(8) RCA audio outputs (7.1 surround sound)
(1) Coaxial digital audio/visual output
(1) HDMI audio/visual output
(1) RJ-45 LAN port
(1) 9-pin D-Sub female RS-232C port
(1) IEC power connection
Communication
Remote Control
Infrared protocol, > 200 mV transmission output level
Serial Remote
Connector: 9-pin D-Sub female, RS-232C
Mode: Full duplex
Baud Rate: 9600 or 38400 bps (selectable)
Ethernet
Connector: LAN port
Standards: Ethernet (10 Mbps), Fast Ethernet (100 Mbps)
Environmental Conditions
Operating temperature: 41 – 95 °F (5 – 35 °C)
Operating humidity: 25 – 85%, no condensation
General
Power
Connection: IEC
Requirement: 100–240 VAC, 50/60 Hz
Consumption: 15 W typical, < 0.5 W standby
Dimensions (width x depth x height, with rack ears)
19.00” x 10.75” x 1.73” (483 mm x 273 mm x 44 mm)
Weight (with rack ears)
5.9 lbs. (2.7 kg)
