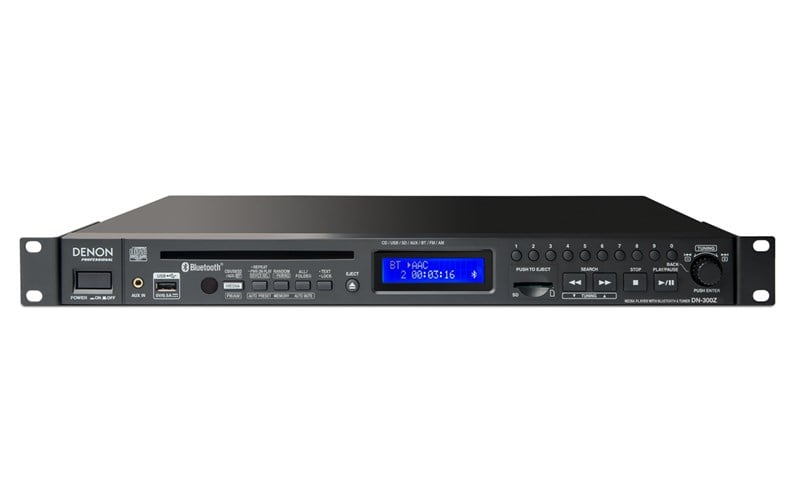

Denon DN-300ZB CD Players, Media Player with Bluetooth Receiver
Playable formats, file systems
CD: CD-DA (CD-TEXT), CD-ROM (ISO9660), CD-R, MP3-CD
USB: FAT16 / FAT32
SD/SDHC: FAT16 / FAT32
Supported WAV format
Extension: WAV
Bitrate: 16–bit
Samplig Frequency: 44.1 kHz
Supported AAC format
Extension: M4A
Compression method: AAC-LA
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz
Supported MP3 format
Extension: MP3
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz
Number of channels: 2 (stereo), 1 (mono)
Audio frequency characteristics: 20 Hz - 20 kHz (± 1.0dB)
S/N ratio: More than 95 dB (A-Weighted)
Total harmonic distortion: Less than 0.01%
Dynamic Range: More than 85 dB
Channel Separation: More than 80 dB
Bluetooth
Version 3.0
Output Class 2
Range: Up to 100 feet (30m) with included antenna
Supported Codec: SBC, MP3, AAC, aptX
Supported Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP
Device memory: Recall up to 8 pairings instantly
Input
Aux in: TRS (3.5mm)
Input impedance: Over 10 kΩ
Maximum input level: 1 Vrms
Maximum output level: 3 Vrms

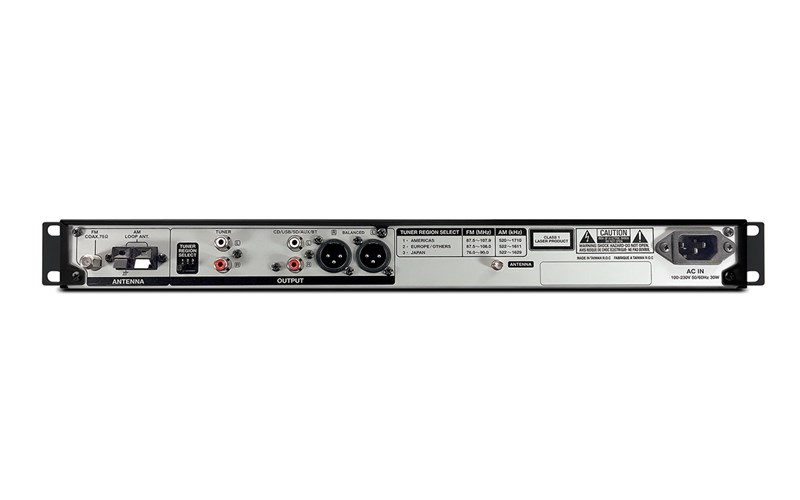

Output
Analog RCA terminals
Load impedance: Over 10 kΩ
Output level: 2 Vrms at 10 kΩ load
Balanced XLR
Output Level: +8 dBu
Load impedance: > 10 kΩ
Tuner
Tuner (Americas)
FM receiving range: 87.5 MHz - 107.9 MHz
AM receiving range: 522 kHz - 1710 kHz
Tuner (EU and Asia Pacific)
FM receiving range: 87.5 MHz - 108.0 MHz
AM receiving range: 522 kHz - 1611 kHz
Tuner (Japan)
FM receiving range: 76.0 MHz - 90.0 MHz
AM receiving range: 522 kHz - 1629 kH
Useable Sensitivity (FM): 30 dBuV/m
Useable Sensitivity (AM): 60 dBuV/m
Tuner channel separation: 20 dB (0 kHz)
Tuner S/N ratio (FM): > 40 dB
Tuner S/N ratio (AM): > 30 dB
THD+N (1 kHz): 3.0%
Operating Environment
Operating temperature: 5-35 degrees Celcius (41-95 degrees Fahrenheit)
Operating humidity: 25-85%, no condensation
General
Power Supply
USA & Canada: AC 120V, 60 Hz
EU, UK, APAC: AC 230V, 50/60 Hz
Japan: AC 100V, 50/60 Hz
Power consumption: 30W
Dimensions: 19” x 13.7” x 1.73” (483 x 347 x 44mm) with rack ears
Weight: 7.94 lbs. / 3.6 kg
Others
Max storage capacity: Up to 2TB
Max file size: 2 GB
Max number of files per folder: 999
Max number of folders: 999
Max folder heirarchies: 8
Max file/folder name length: 255 characters
