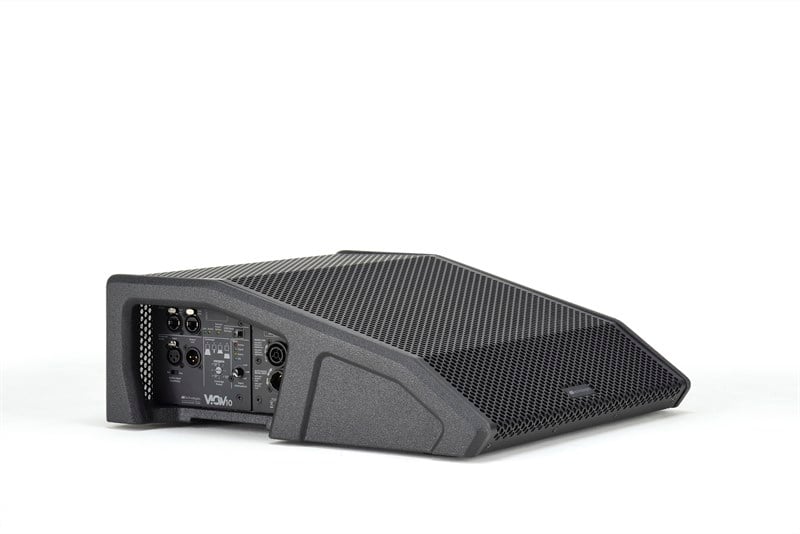

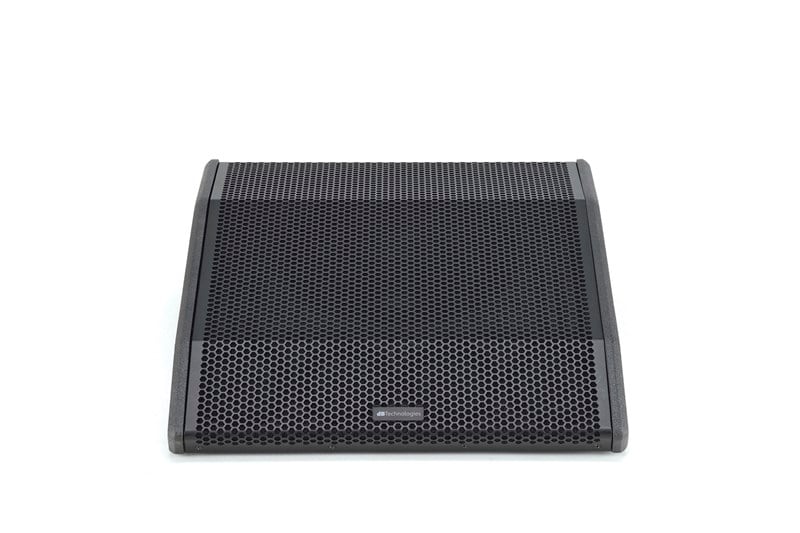

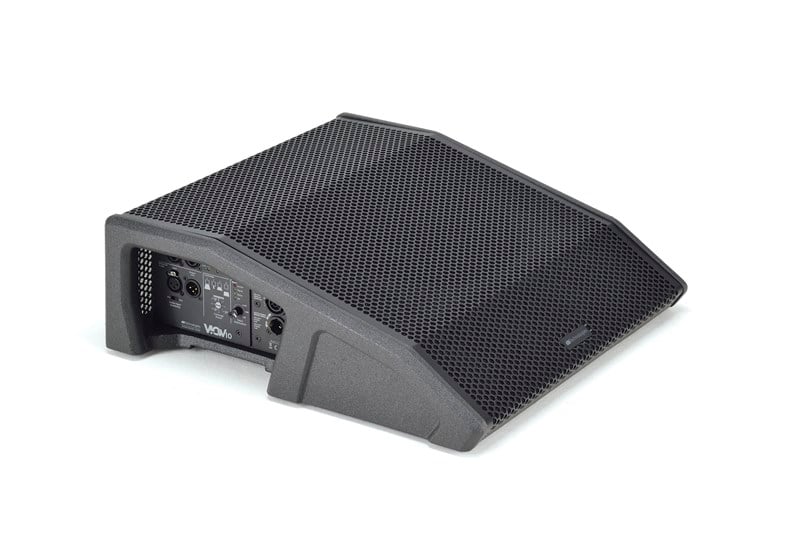

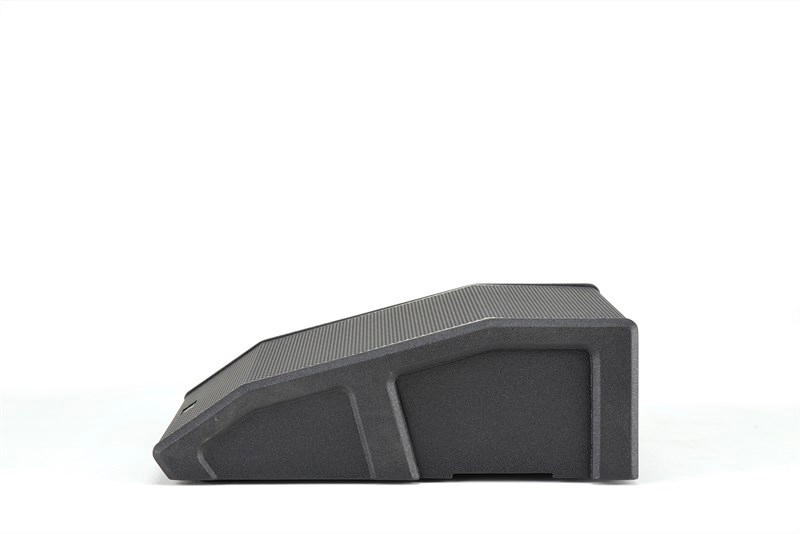

dB Technologies VIO W10 2-Way 10'' Active Wedge Stage Monitor
Technical Data
Speaker Type2-Way Active Wedge Monitor
Acoustical data
Usable Bandwith [- 10 dB]58 - 15,000 Hz
Frequency Response [- 6 dB]68 - 14,000 Hz
Max SPL126 dB
HF4x 4" - 1" v.c. Neodymium
LF1x 10" - 2.5" v.c.
Horizontal DirectivityDependent on Focus Preset
Vertical DirectivityDependent on Focus Preset
Amplifier
Amplifier400 W RMS Class D Digipro® G3
CoolingConvection
Power SupplyAuto-range SMPS
Processor
ControllerDSP 28/56 bit
Converter AD/DA24 bit/48 kHz
LimiterPeak, RMS, Thermal
Processing (filters)Linear Phase FIR Filters
Input
Signal Input1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)
Signal Output1xXLR male, 1x RJ45 Link (RDNet)
Power Socket1x PowerCON TRUE1 In
1xPowerCON TRUE1 Out
Controls1x Rotary Encoder (8 presets)
1 x Input Sensitivity Encoder
1xMic /line switch
1x On LED
1x Status -LED
1x Signal LED
1x Limiter LED
Mechanics
HousingWooden cabinet, Polyurea painting
Handles1 on left side
Width450 mm (17.71 in)
Height165 mm (6.49 in)
Depth480 mm (18.89 in)
Weight13.7 kg (30.20 lbs)
