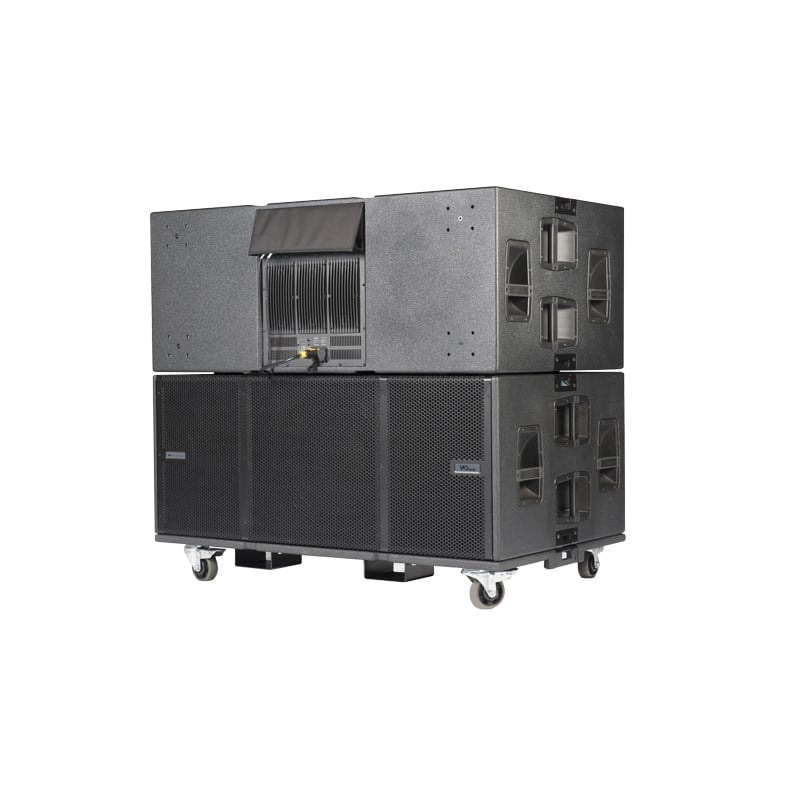

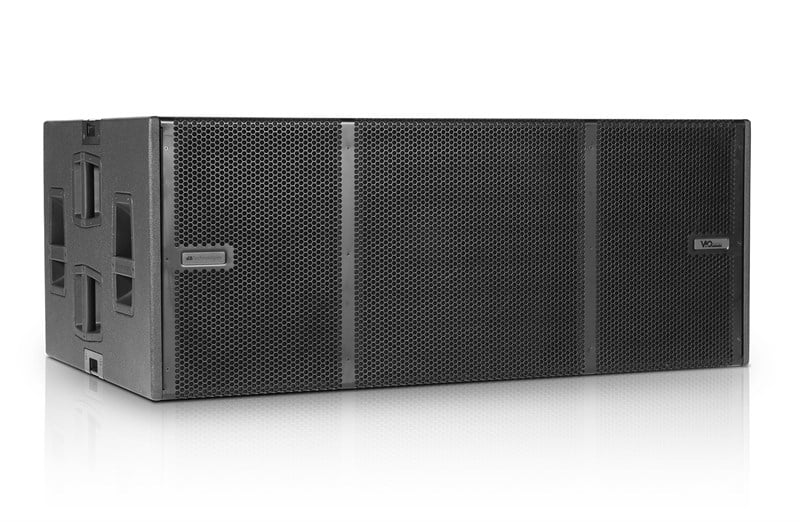

dB Technologies Vio S318 - 3x18 inch 5400 Watt Peak Aktif Subwoofer
dB Technologies Vio s318 ; 3 x18 inç hoparlör güçüyle konserlerinizin vazgecilmez subwoofer seçeneği olmaya aday , en uygun fiyat ve vade seçenekleri ile
dB Technologies Vio s318 www.medumuzikmarket.com'dan alabilirsiniz
Technical Data
Speaker TypeActive Bassreflex Semi-Horn-Loaded Subwoofer
Acoustical data
Frequency Response [- 6 dB]39 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]35 Hz (HPF)
Max SPL143 dB
LF3x18"
Voice Coil LF4 "
DirectivityOmnidirectional
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass D
RMS Power 2700 W
Peak Power 5400 W
CoolingConvection
Power Supply 2700 W SMPS with Auto Range PSU
Processor
ControllerDSP 32 bit
AD/DA Converter24 bit/96 KHz
LimiterRMS, Peak, Thermal
Delay Option0-9.9 ms internal
Steps of 0.1 ms
Crossover Frequency LF-HF70-105Hz + Full range
LF-Xover out slope24 dB/Octave
Input
Signal Input 1xXLR balanced
1xRJ45 LINK (RDNet)
Signal Output 1x XLR balanced
1xRJ45 LINK (RDNet)
Power Socket 1xPowerCON TRUE1 IN
1xPowerCON TRUE1 OUT
Controls1x Input Attenuation Rotary Switch
2x Rotary Encoder (Delay 9.9 ms)
1XPolarity Inversion Switch (0° or 180°)
1xCardioid Mode Switch
1x X-Over Freq Switch (70-105 Hz + Full Range (steps of 5 Hz)
Mechanics
HousingMultiplex plywood
Polyurea painted
Handles4x Per Side
Aluminium
RaincoverIncluded
Rigging Points 2xPick Points on top to fix DRK-210 rigging frame
Width1300 mm (51.18 in)
Height520 mm (20.47 in)
Depth800 mm (31.5 in)
Weight103.9 kg (229.06 lbs)
