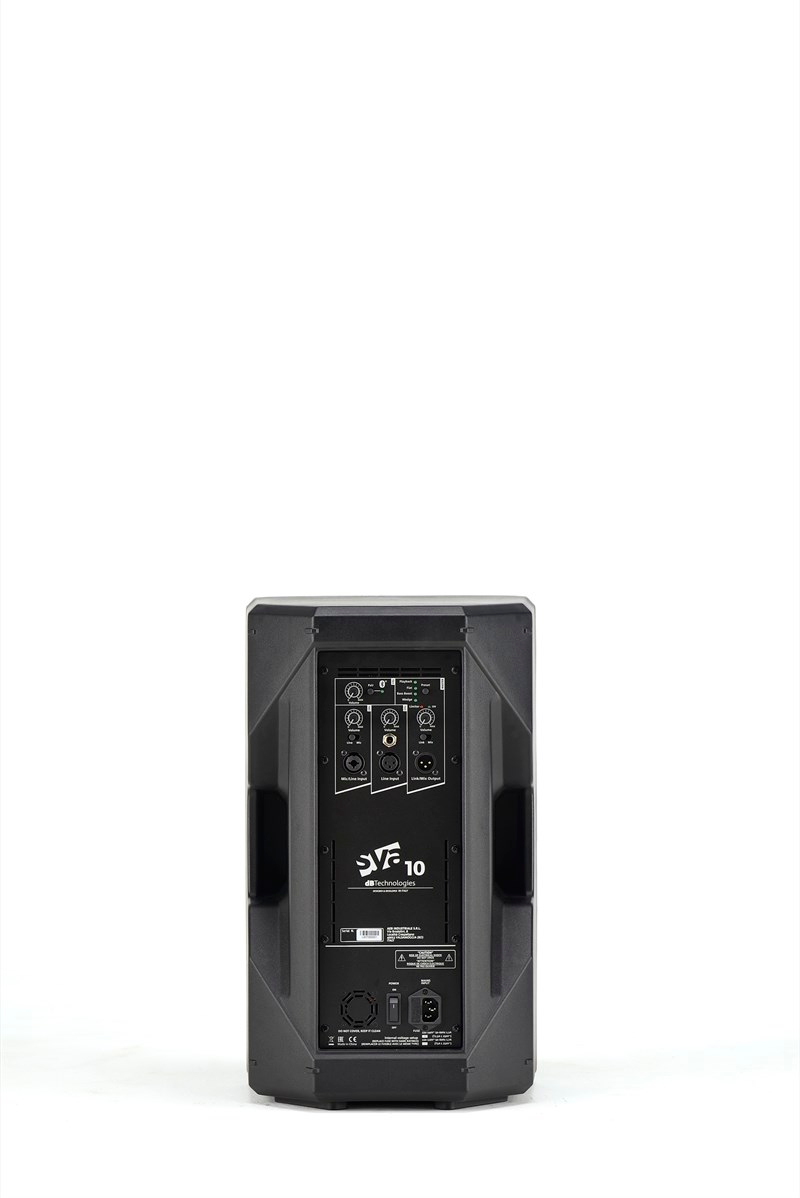

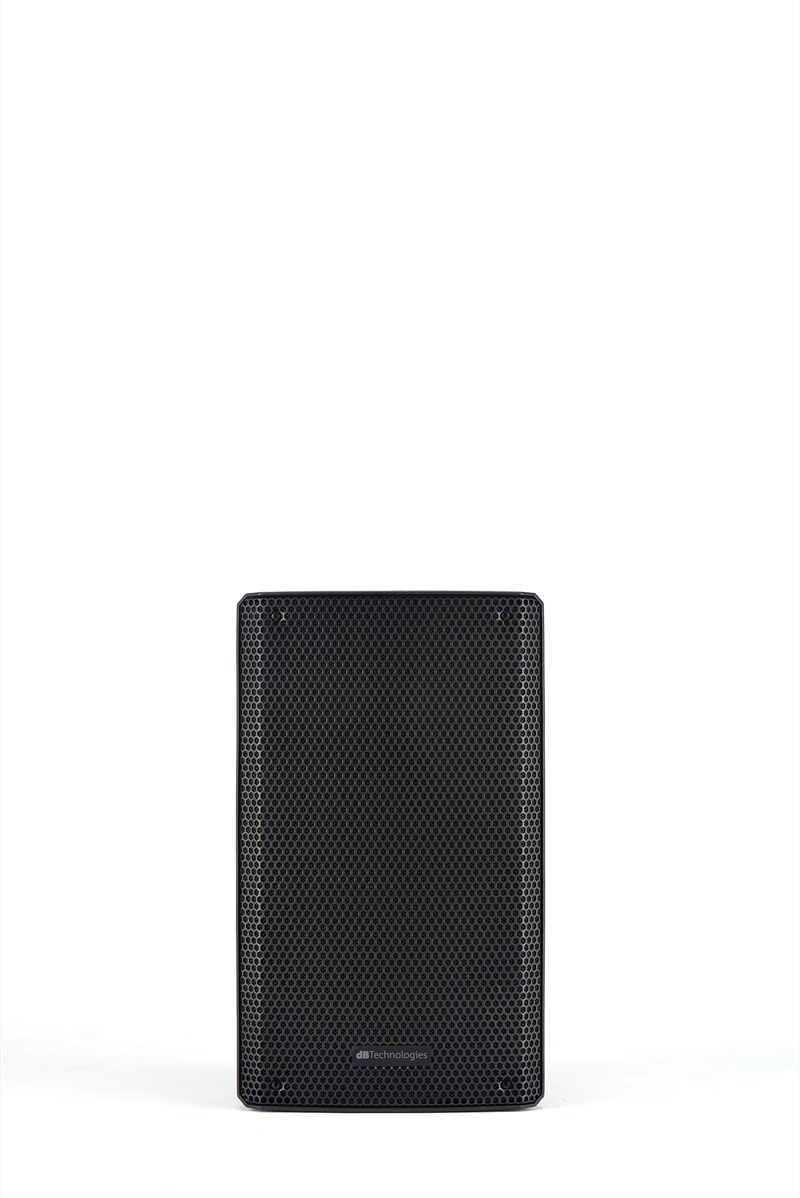

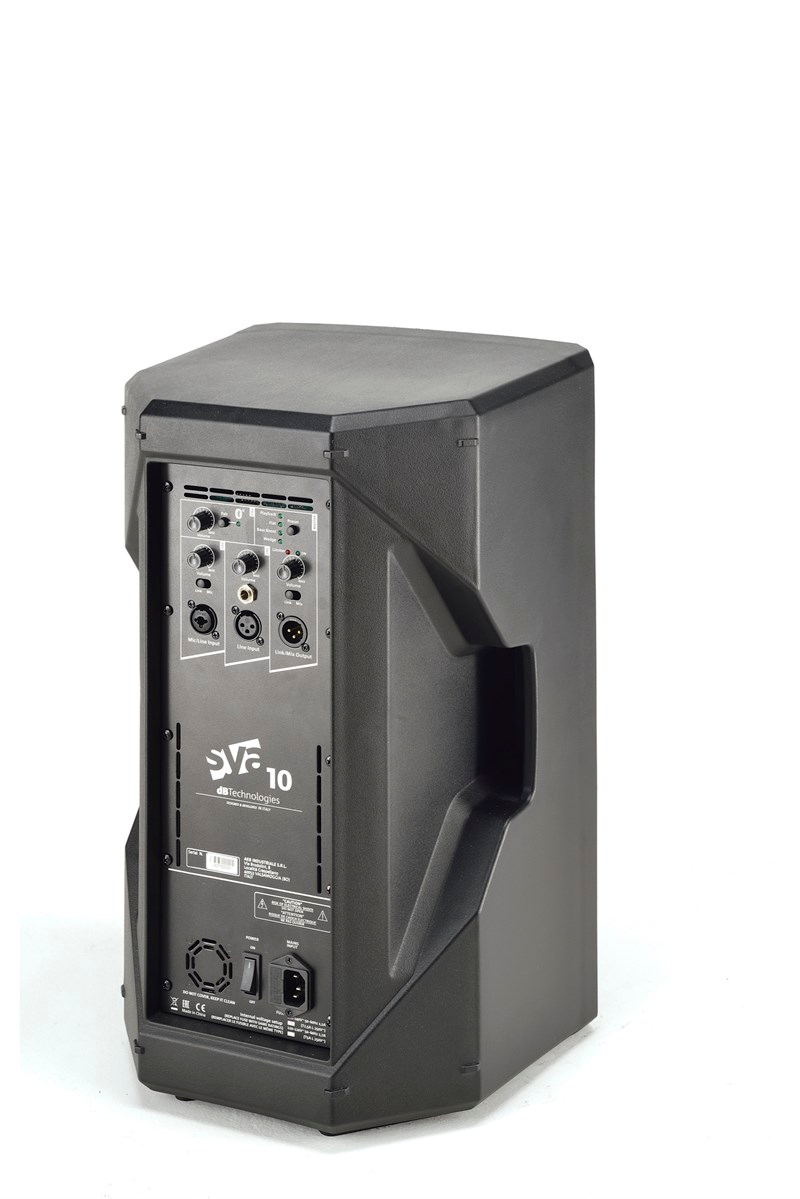

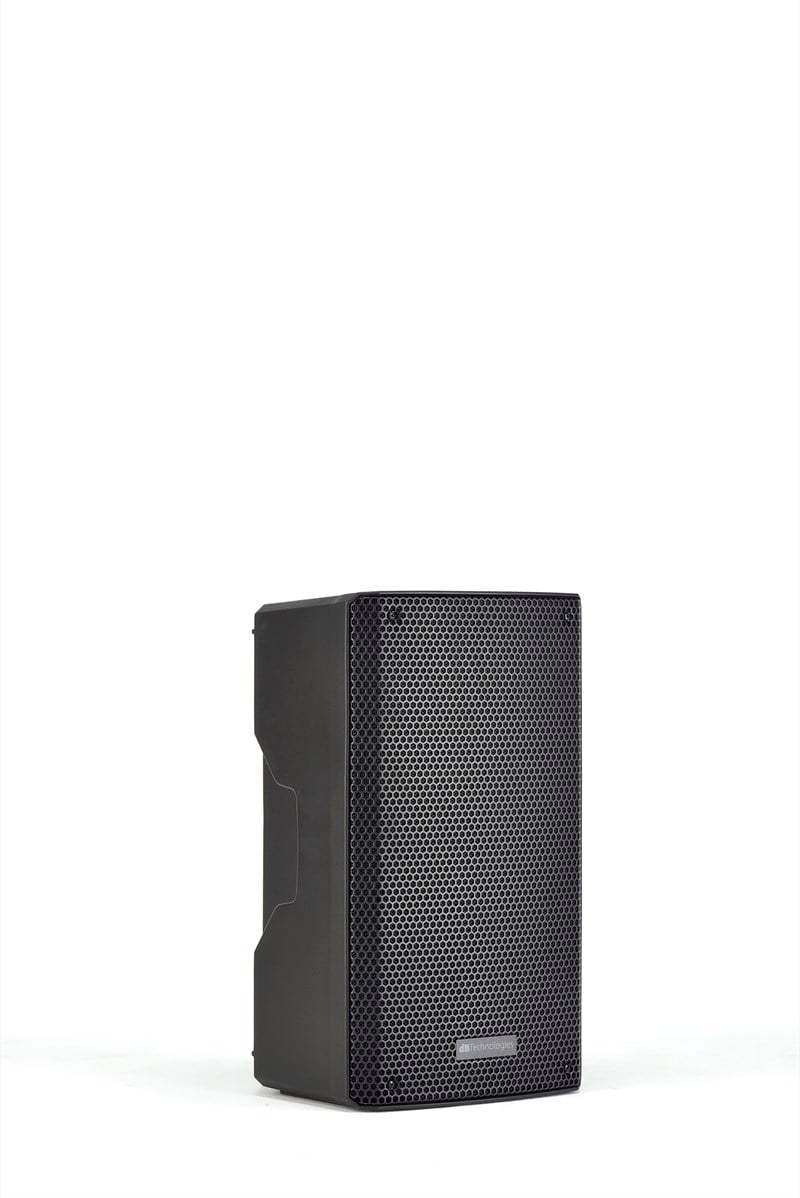

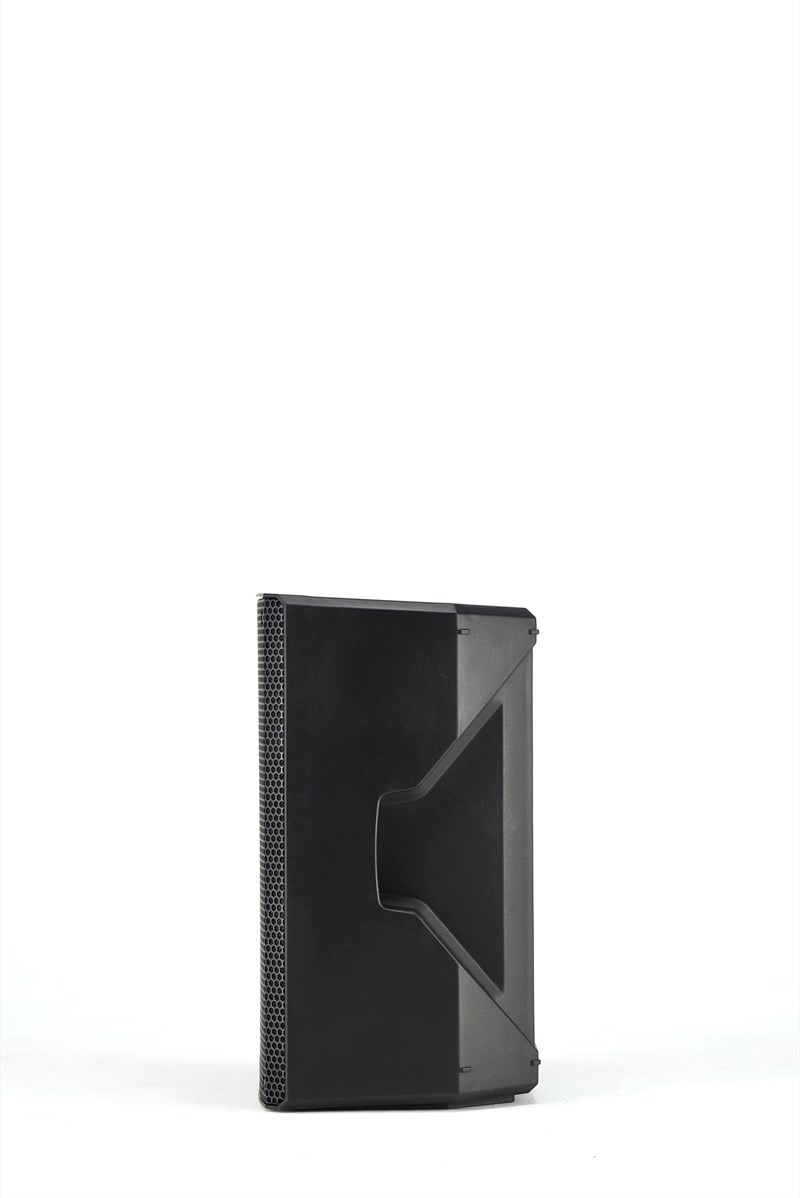

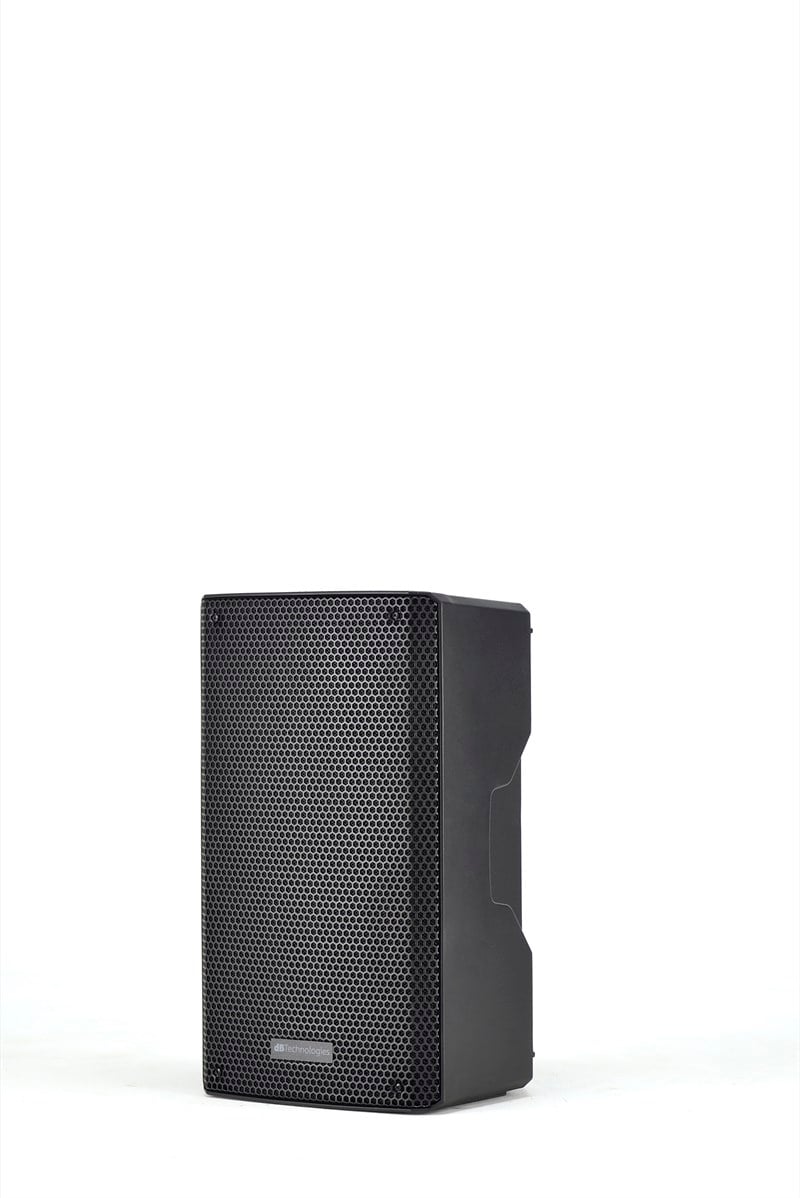

dB Technologies SYA 10 2-Yollu 10-inch 400 Watt Aktif Kabin Hoparlor
Active 2-way speakers
Bluetooth®connection
3 Channel IN
1 link OUT with link/mix switch
Linear Phase FIR Filters for accurate sound reproduction
DSP presets for wide versatility
Soft cover included
Acoustical data
Frequency Response [-10dB]55 - 18.000 Hz
Max SPL125 dB
HF1" CD, 1"v.c
LF10", 2" v.c.
Dispersion90°x60°
Crossover Frequency2000 Hz (24 dB/oct.)
Amplifier
Amp TechnologyClass D(LF)+Class AB (HF)
Power Peak (LF+HF)400 W
Processor
Controls1xVolume, 1xslide switch mic/line
Indicatorspower on/signal/limiter LEDs
ControllerDSP 20/56 bit
AD/DA Converter24 bit/ 48 Hz
Systems PresetsPlayback, Flat, Bass Boost, Wedge
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Input
Signal Input1x Combo(XLR/Jack)
Mic/Line
1xXLR/TRS
Bluetooth Input1xBluetooth receiver
SIGNAL Out1xXLR Male (LINK/MIX)
Mechanics
HousingPolypropylene
Handles3 (2 on side 1 on top)
Angles UpMonitor Use 40°
Pole Mount36 mm, double positioning
Width310 mm (12.2 in)
Height521 mm (20.51 in)
Depth292 mm (11.51 in)
Weight11.7 kg (25.79 lbs)
