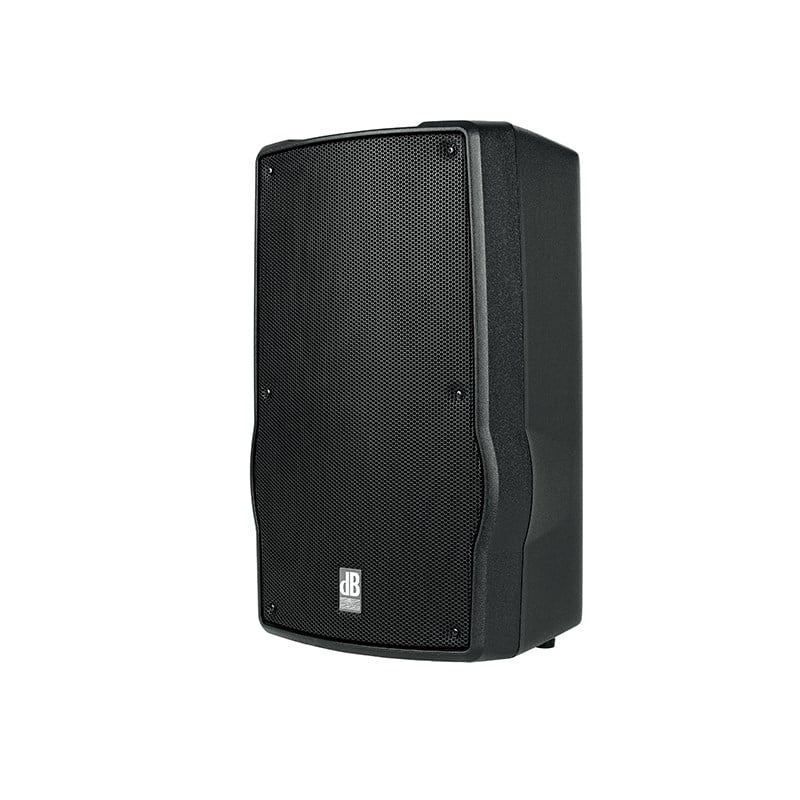

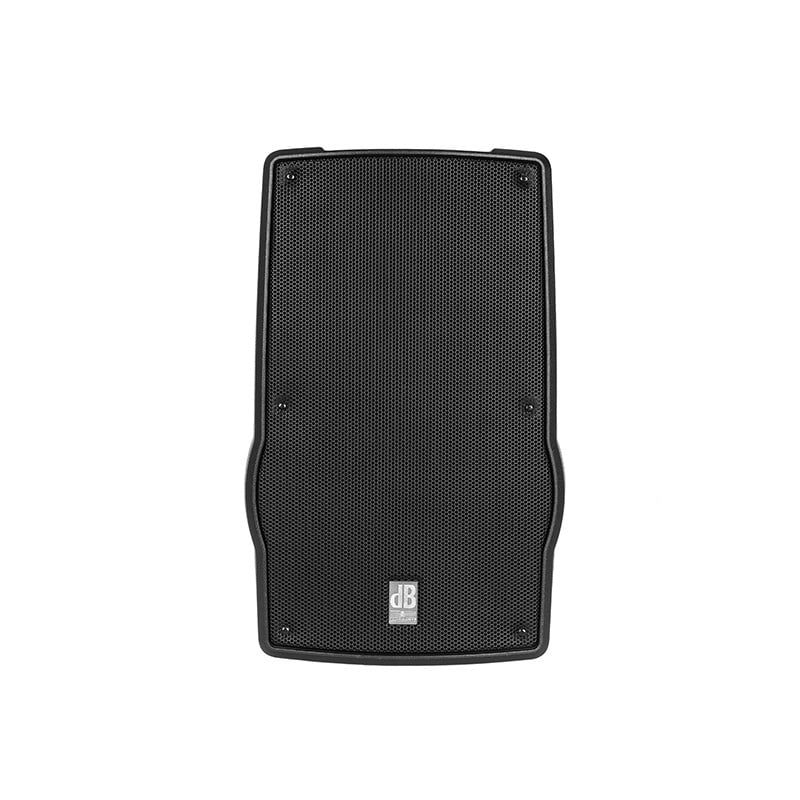

dB Technologies READY 4 - 200W Şarjlı Aktif Sistem (1 adet el tipi kablosuz mikrofon)
Technical Data
Speaker TypeBi-amp battery-powered speaker
Acoustical data
Frequency Response [-10dB]70 - 20.000 kHz
Max SPL120 dB
HF1"
Voice Coil HF1"
Directivity85/65 x 60°
HornAsymmetrical CD Horn
LF10"
Voice Coil LF1.5"
Amplifier
AmpClass D High efficiency power amplifier
Peak Power200 Watt

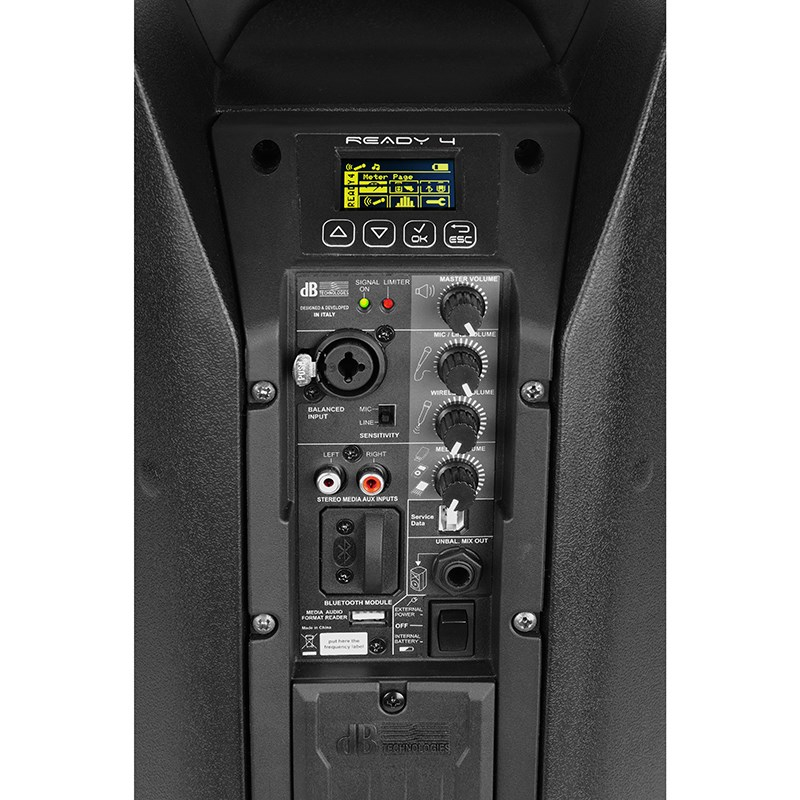

Controls1x OLED display with 4 push buttons, 4 x rotative knobs, 1x 3-position power supply source switch (external, internal or OFF)
Coolingconvection
Main PSUVDE socket: auto-range SMPS (110v~ -220 V~) for full operation and battery charging
Internal Battery PSU12V - 7Ah lead acid battery (user-replaceable)
External 15V PSUDC conn. for 15V external power supply
Processor
ControllerDSP 56 bit
AD/DA Converter24bit/48kHz
Crossover Frequency LF-HF1950 Hz
Slope LF-HF24 dB/Octave
LimiterDual Active
Peak/RMS, Thermal
Special featuresDigital battery charger, Battery management and power saving functions
Input
Master Channel1x Master volume potentiometer
Mic/Line Channel1x Combo (XLR/jack) input, 1x Mic/Line volume control, 1x Mic/Line selection switch
Wireless Mic Channel1x 16ch. UHF wireless built-in receiver, 1x Wireless receiver volume control
Media Channel2x RCA unbalanced inputs, 1x Bluetooth™ built-in audio receiver (optional), 1x USB type “A” port for media files (MP3/WMA/AAC), 1x RCA/USB/Bluetooth™ volume control
Mix output1x 6.3” unbalanced jack mix Out
Mechanics
HousingPolypropylen PP
Angles UpMonitor use 43°

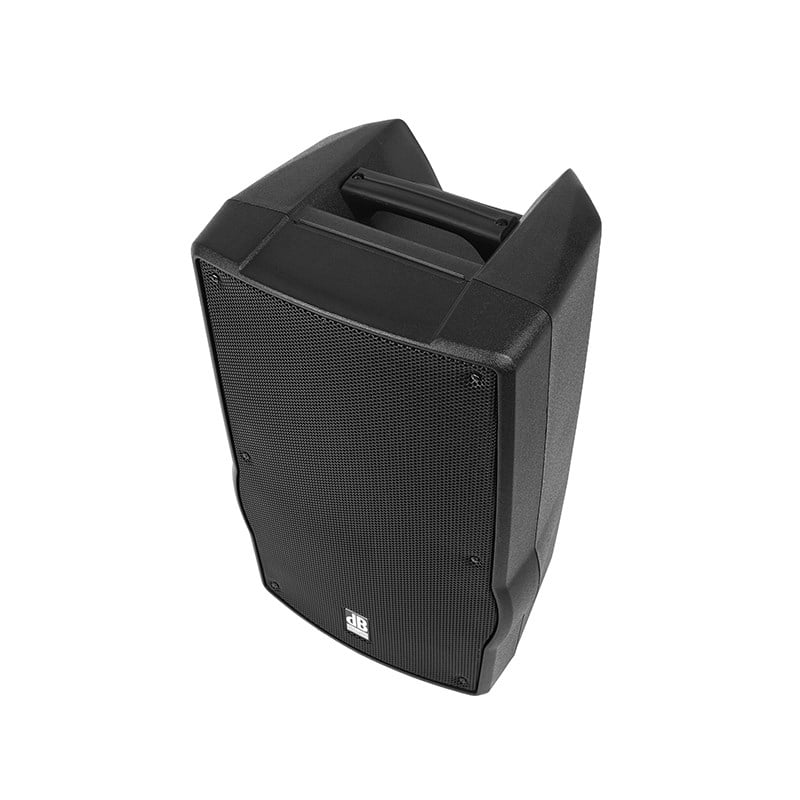

Handles1x top side
Width343 mm (13.72 in)
Height553 mm (22.77 in)
Depth304 mm (11.97in)
Weight11.3 kg (24.91 lbs)
