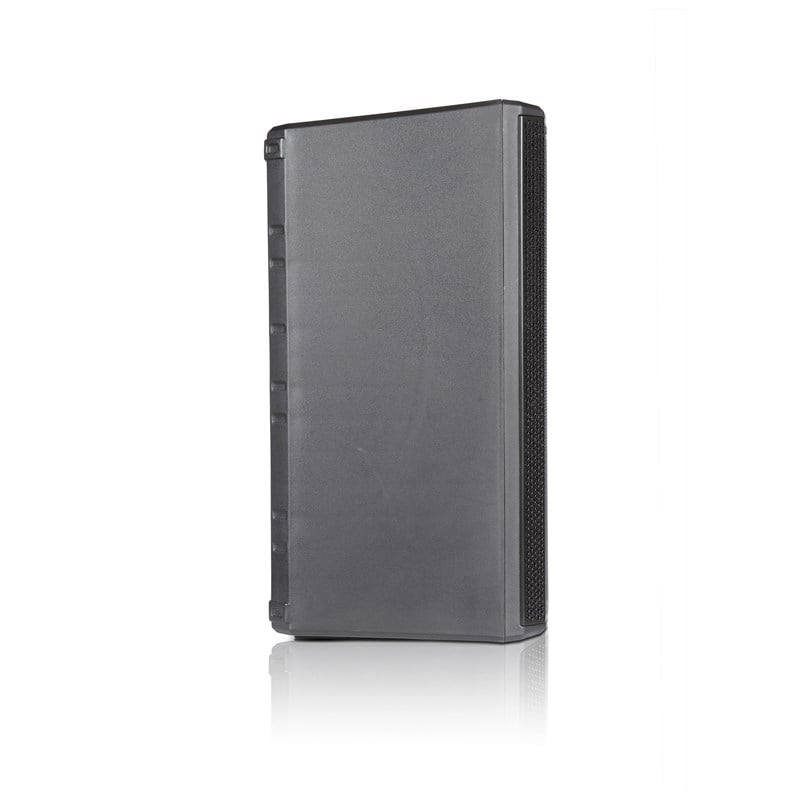

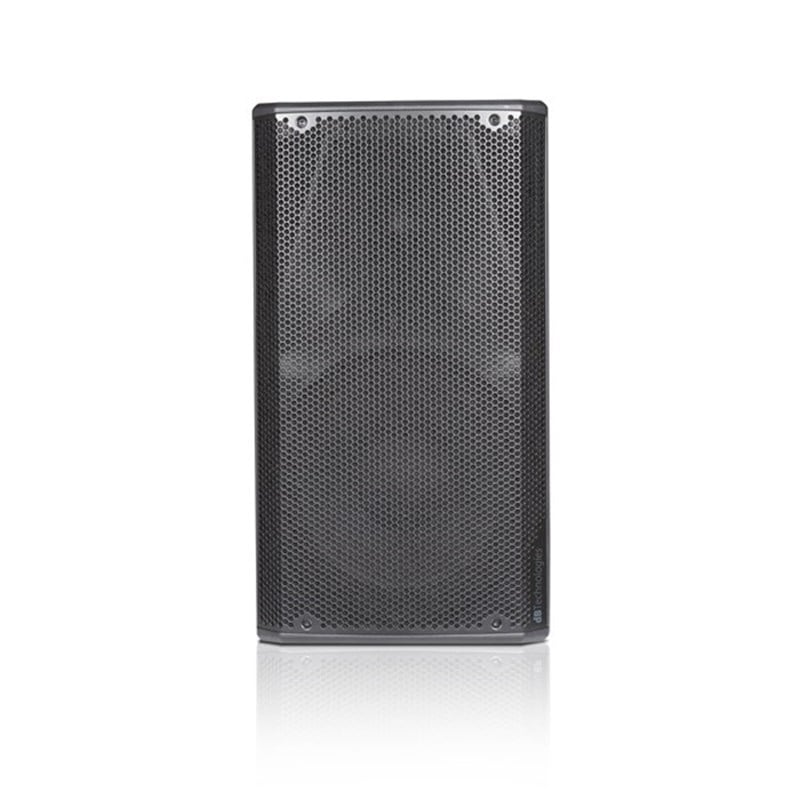

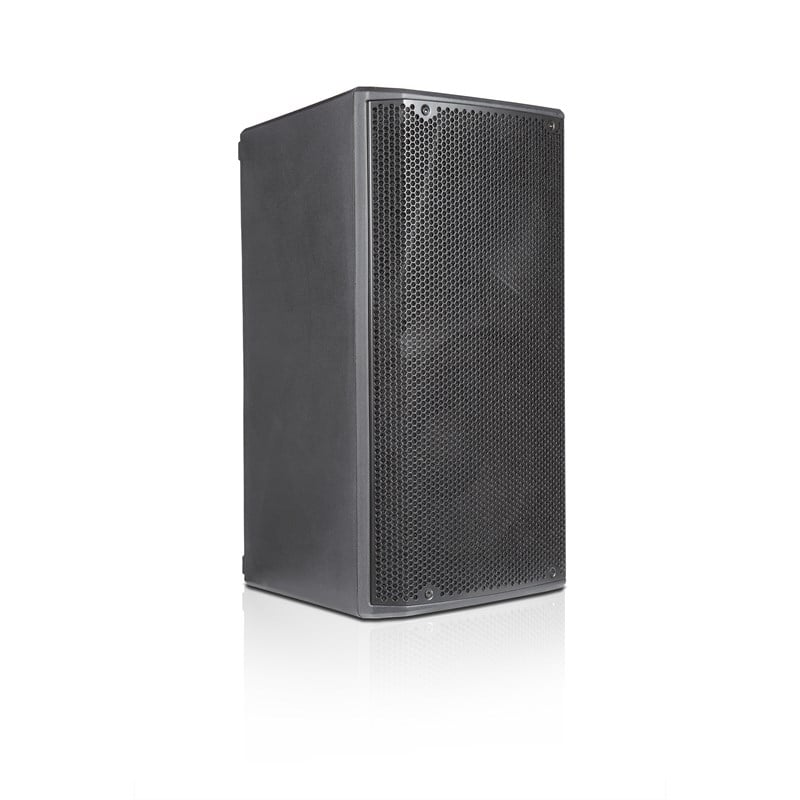

dB Technologies OPERA 12 - 12 inç 1200W Peak 2 Yollu Aktif Kabin Hoparlör
Acoustical data
Frequency Response [-10dB]52 - 20.000 Hz
Frequency Response [- 3dB]67 - 19.600 Hz
Max SPL129 dB
HF1" Exit, 1.4 v.c.
Type HFCompression driver
Horizontal Directivity 100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
HornAsymmetrical Horn
LF12", 2" v.c.
Amplifier
Amp TechnologyAmp SMPS Power supply dual range
Amp ClassClass D
RMS Power 600 W
Peak Power1200 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
System PresetsRotary Encoder (8 Presets)
CrossOver Frequency 2000 Hz
LimiterPeak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters
Input

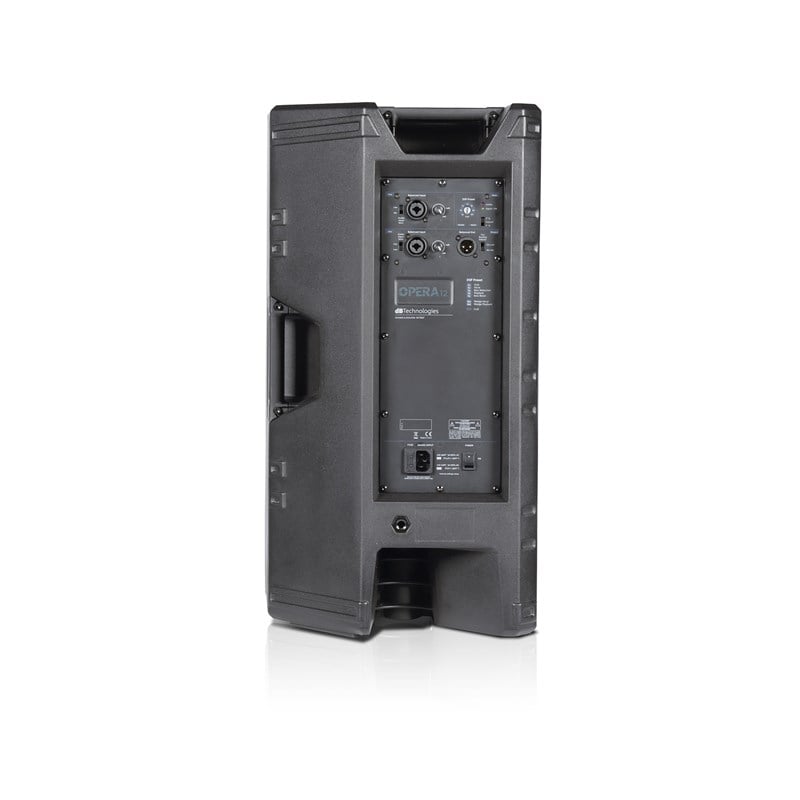

Signal Input 1xCombo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output1x XLR Male (CH1 Link/Mix OUT)
Selectable
Mechanics
HousingPolyporpylene PP
Grille Full grille

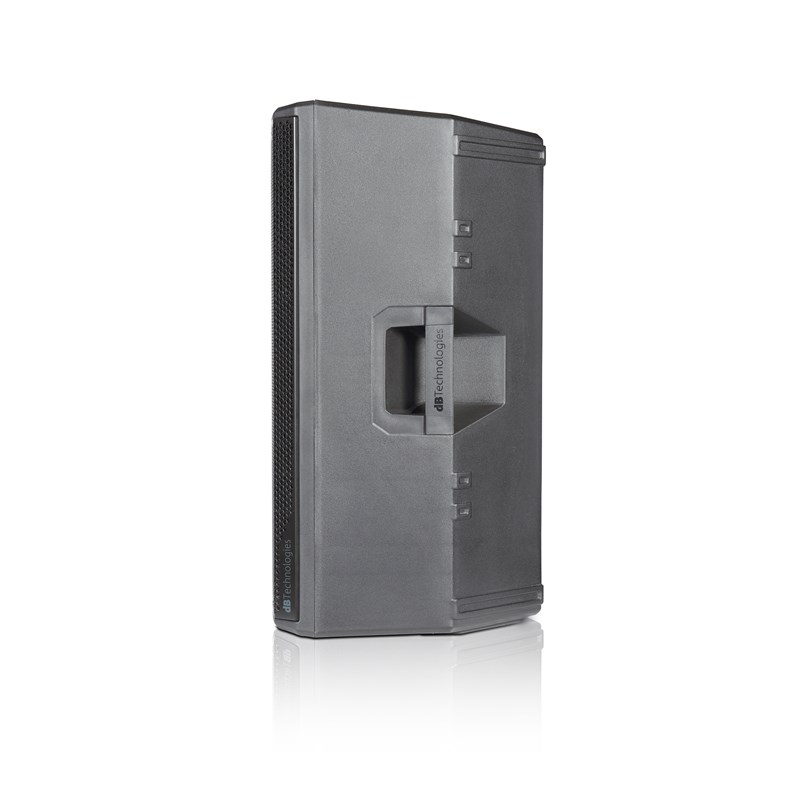

Handles 1 on left Side, 1 on Top
Rigging Points 2XM10 on Top + 1x M10 on Back
Pole Mount D36 mm

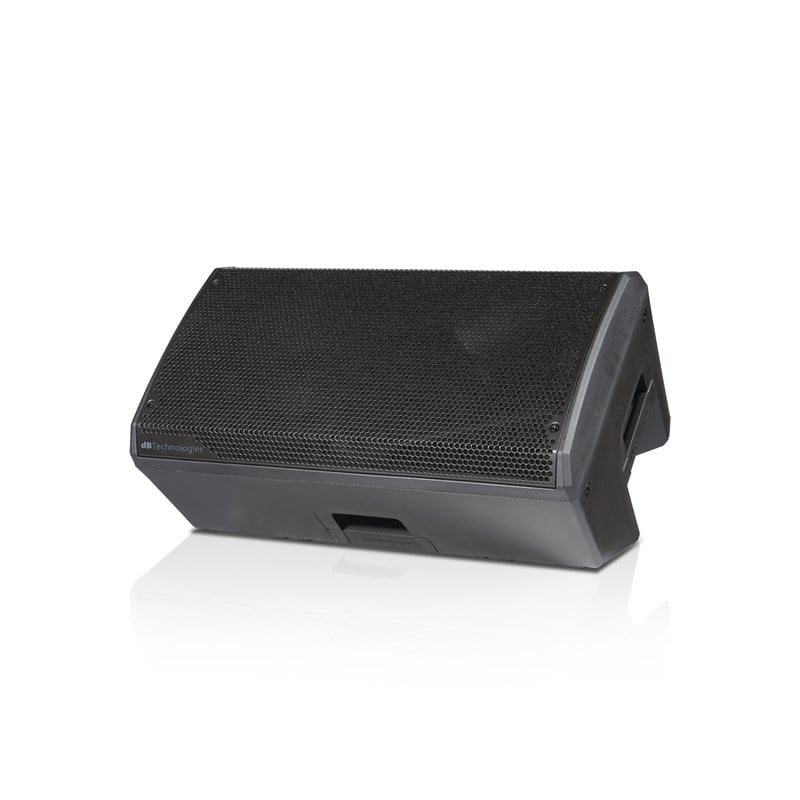

Angles up Monitor use 45°

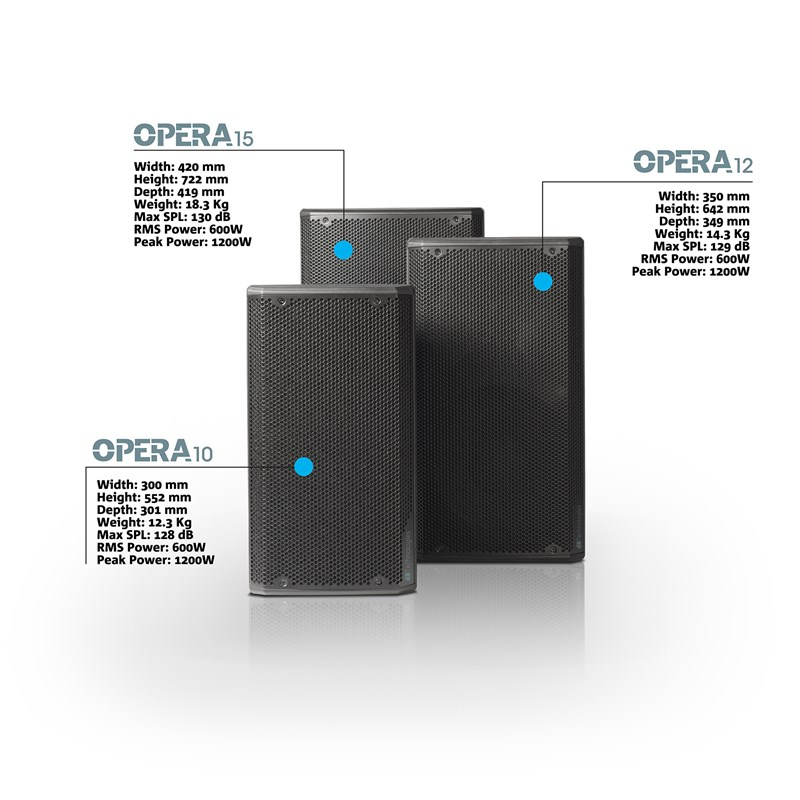

Width350 mm (13.78 in)
Height642 mm (25.28 in)
Depth349 mm (13.74 in)
Weight14.3 kg (31.53 lbs)
