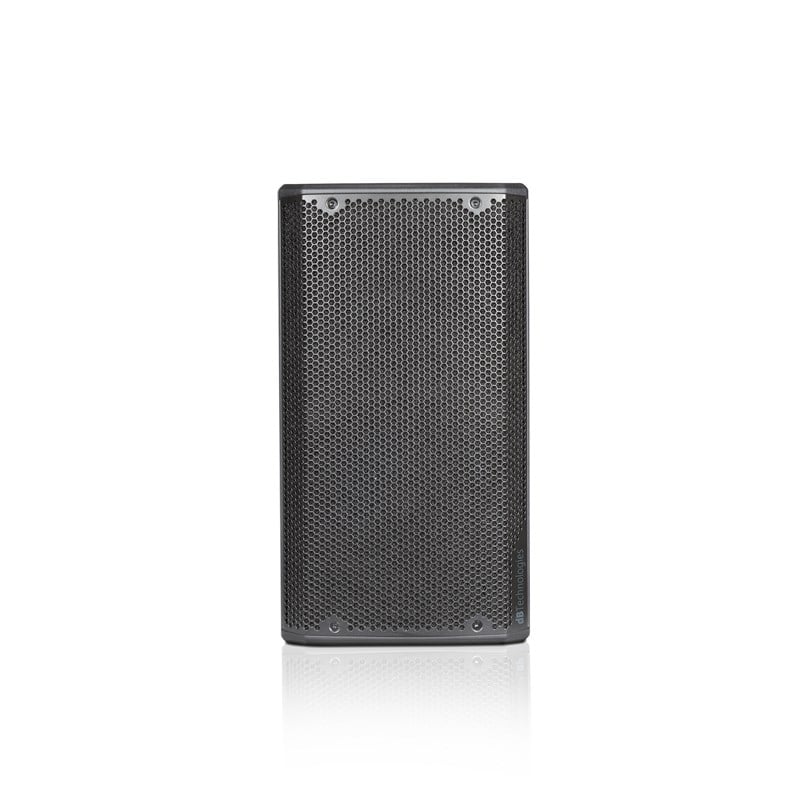

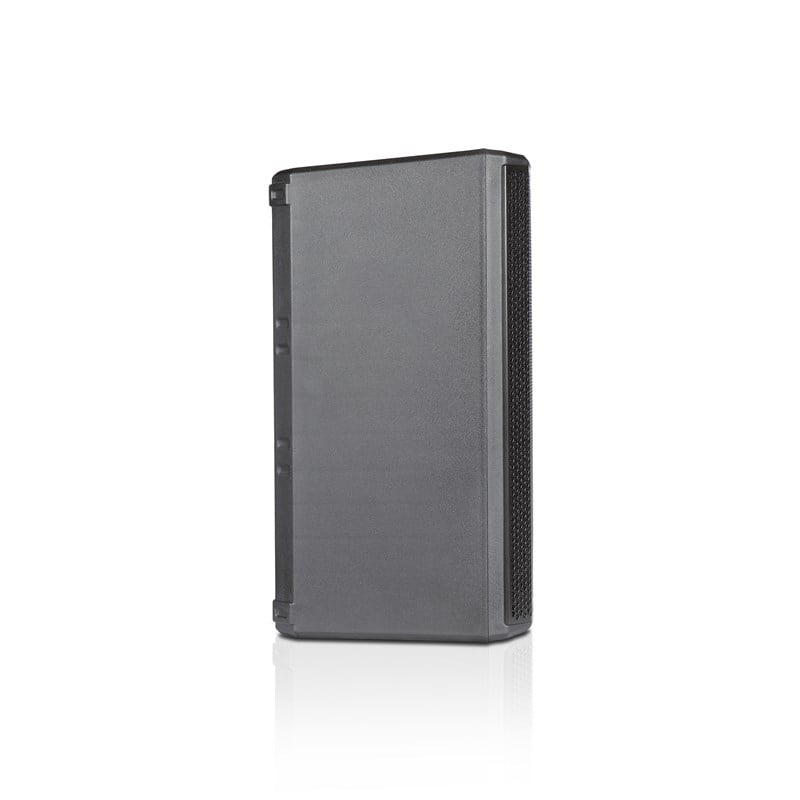

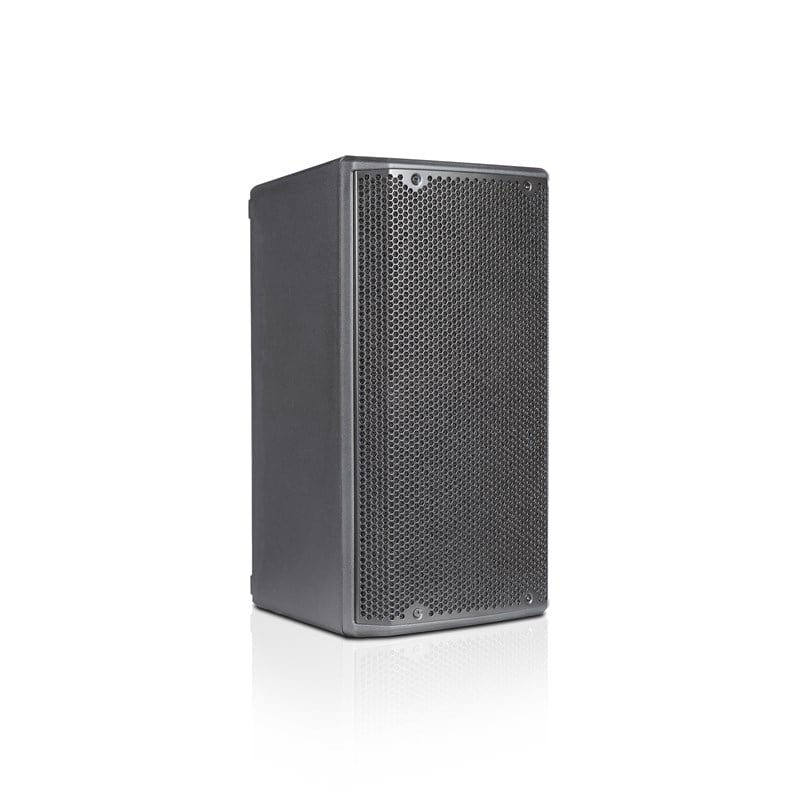

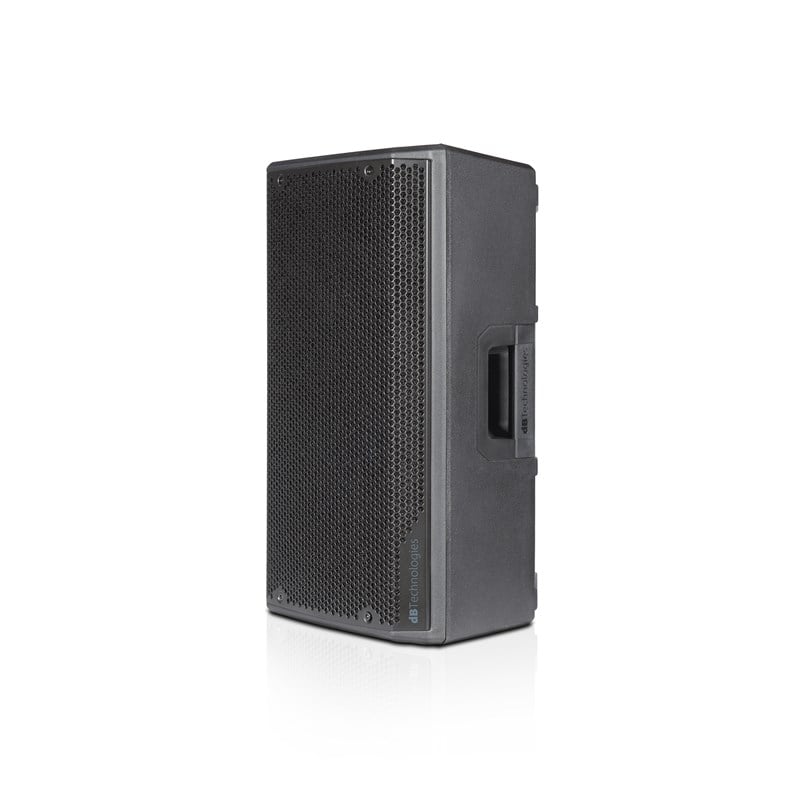

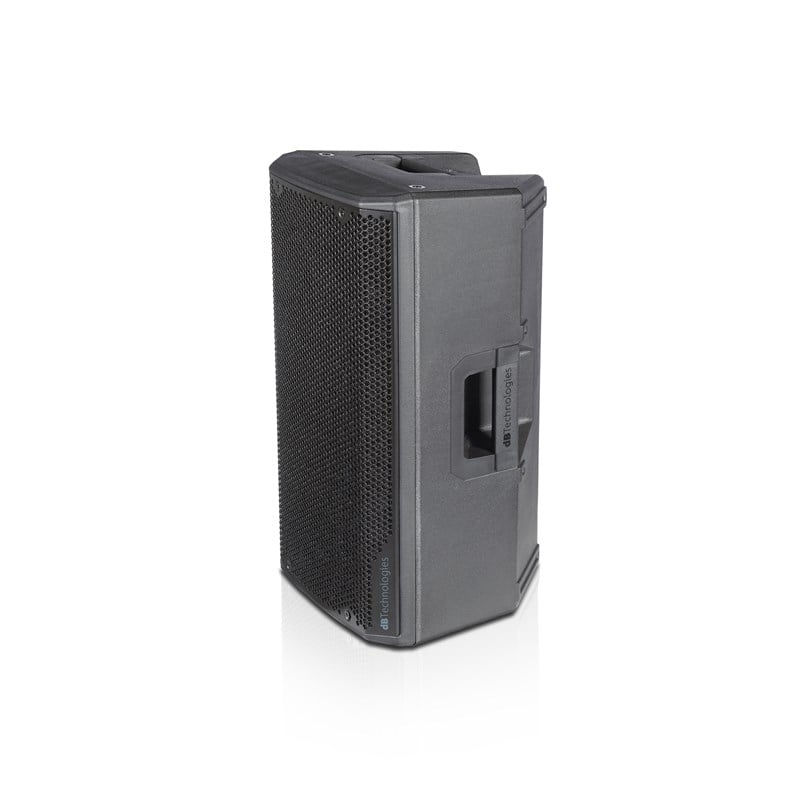

dB Technologies OPERA 10 - 10 inç 600/1200W Aktif Kabin Hoparlör
1200 W PEAK POWER
600 W RMS POWER
NEWLY DESIGNED ASYMMETRICAL HORN
ADVANCED DSP WITH FIR FILTERS
2 INPUT CHANNELS (MIC-LINE/MIC-INSTR)
SELECTABLE OUTPUT CHANNEL (LINK CH1/MIX CH 1+2)
8 EQ PRESETS
FRESH FULL GRILLE DESIGN
STAGE MONITOR USE
Acoustical data
Frequency Response [-10dB]58 - 20.000 Hz
Frequency Response [- 3dB]70 - 19.600 Hz
Max SPL128 dB
HF1" Exit, 1.4 v.c.
Type HFCompression driver
Horizontal Directivity100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)

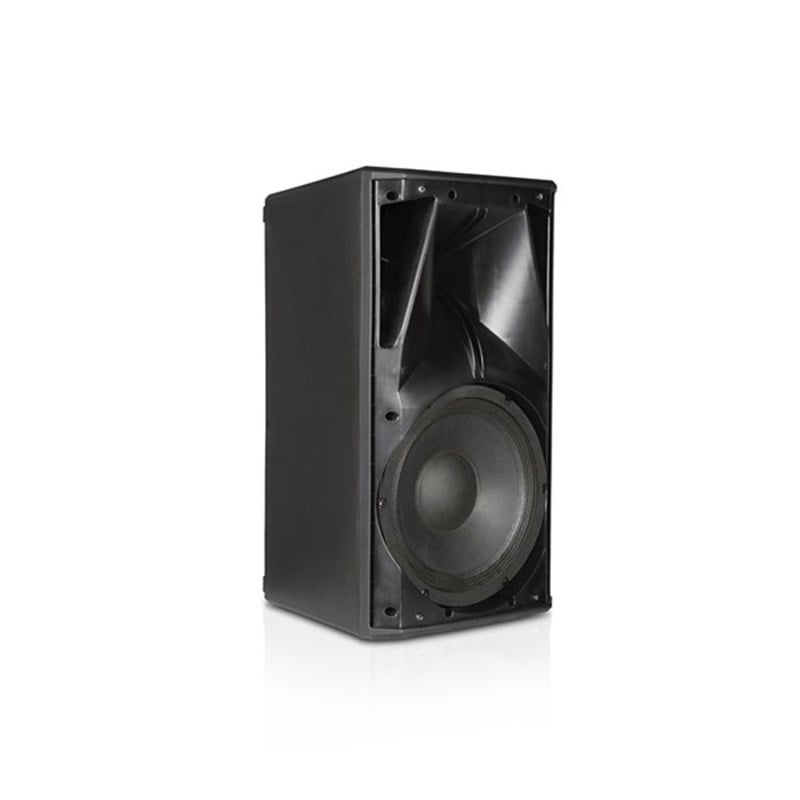

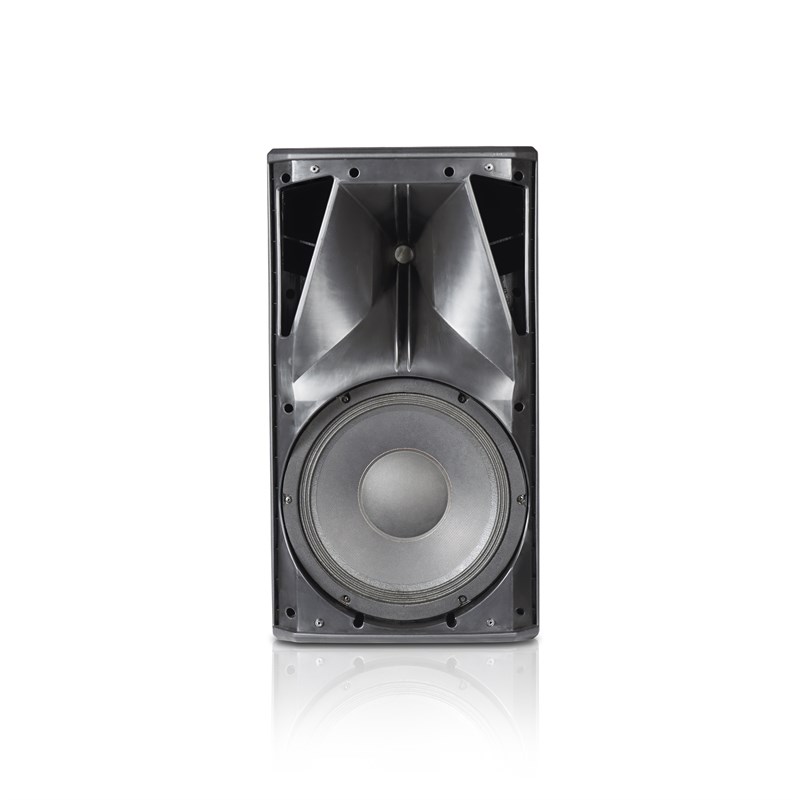

HornAsymmetrical Horn
LF10", 2" v.c.
Amplifier
Amp TechnologyAmp SMPS Power supply dual range
Amp ClassClass D
RMS Power600 W
Peak Power1200 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
System PresetsRotary Encoder (8 Presets)
CrossOver Frequency2000 Hz
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters

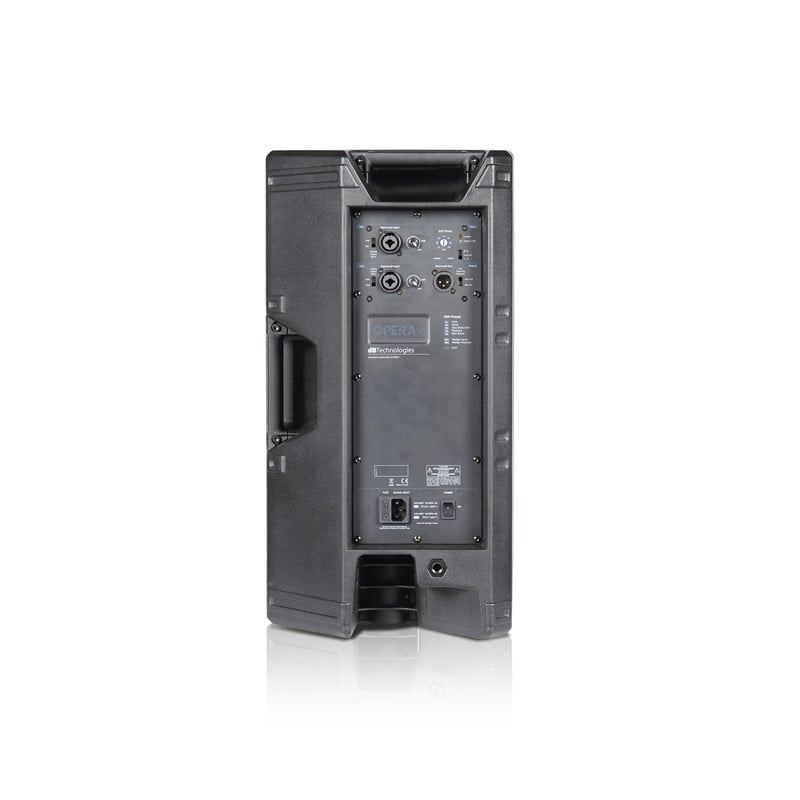

Input
Signal Input1xCombo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output1x XLR Male (CH1 Link/Mix OUT)
Selectable
Mechanics
HousingPolyproylene
GrilleFull grille

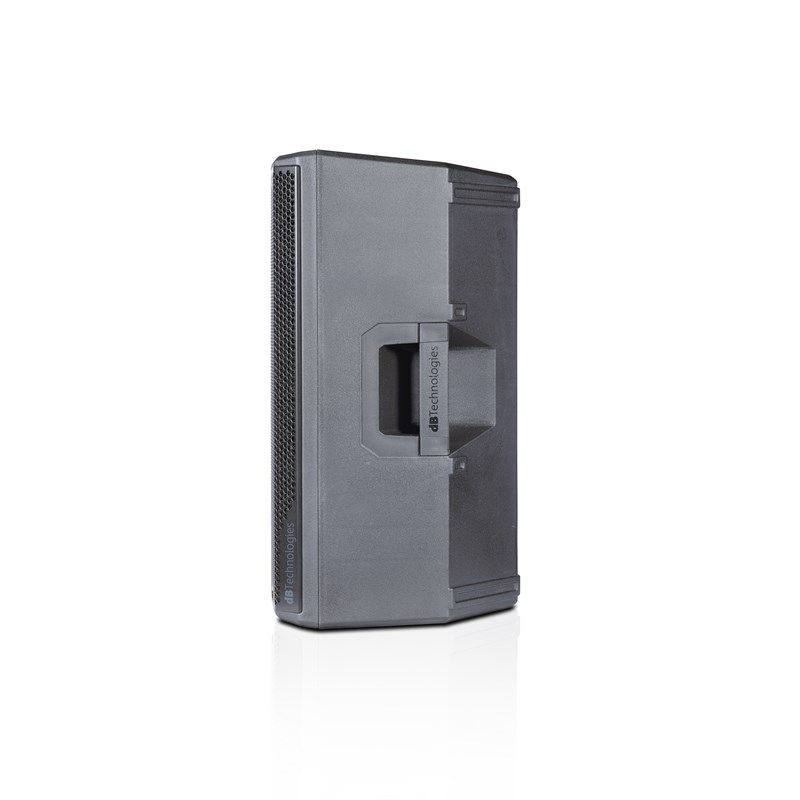

Handles1 on left Side, 1 on Top
Rigging Points2XM10 on Top + 1x M10 on Back
Pole MountD36 mm
Angles upMonitor use 45°
Width300 mm (11.81 in)
Height552 mm (21.73 in)
Depth301 mm (11.85 in)
Weight12.3 kg (27.12 lbs)
