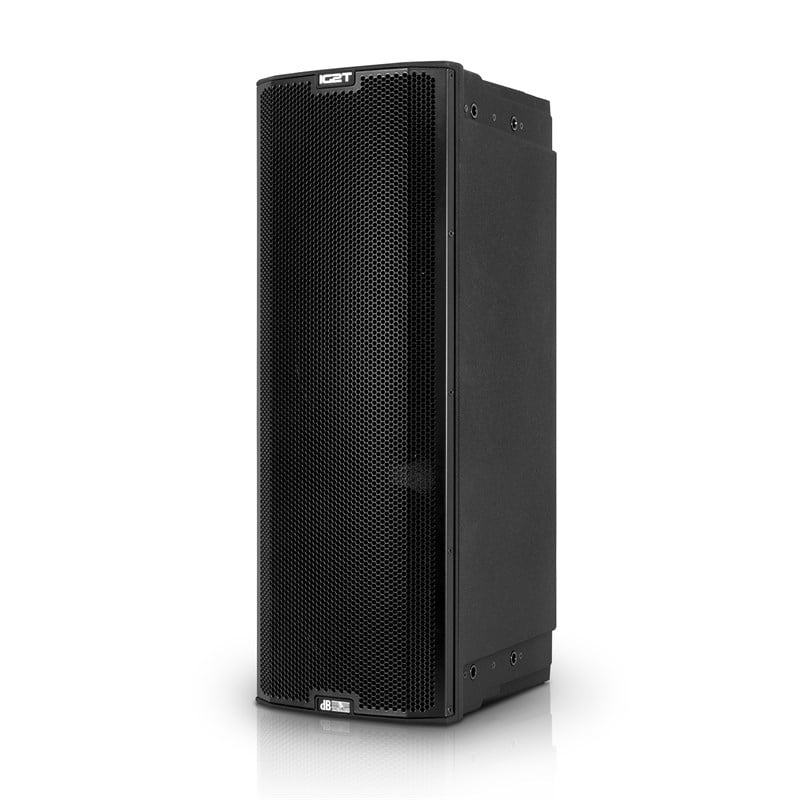

dB Technologies IG2T 2x8 inch 800W Peak Aktif Kabin Hoparlör
Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]59- 20.000 Hz
Frequency Response [-6dB]63- 19.200 Hz
Max SPL128 dB
HF1"
HF Voice Coil1.4"
Directivity (HxV)100 x 80° (+15°/- 65°)
HF TypeNeodymium compression driver
HornVertical asymmetric
Crossover Frequency1900 Hz
LF2x8”
LF Voice Coil2"
LF TypeNeodymium
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass-D
Peak Power800 W
RMS Power400 W
User InterfaceOLED display + rotative knob w/switch
Self-rotating displayYes
PositioningEPD (Element Position Detection)
Display MirroringYes
Processor
ControllerDSP 56 bit
AD/DA Converter24bit/48kHz
System PresetsFactory presets + User defined
LimiterDual Active Peak, RMS, Thermal
Input
Signal Input1 x Combo IN (XLR + Jack 6.3mm)
Signal Out1 x XLR link OUT
USB connectorYes - mini USB
Mechanics
HousingPolypropylene PP reinforced
GrilleFULL /Invisible screws
FlyableYes
Handles1x on top / 1x on bottom
Pole MountYes
Width228 mm (8.98 in)
Height646 mm (25.43 in)
Depth315 mm (12.40 in)
Weight12.8Kg (28.22 lbs.)
