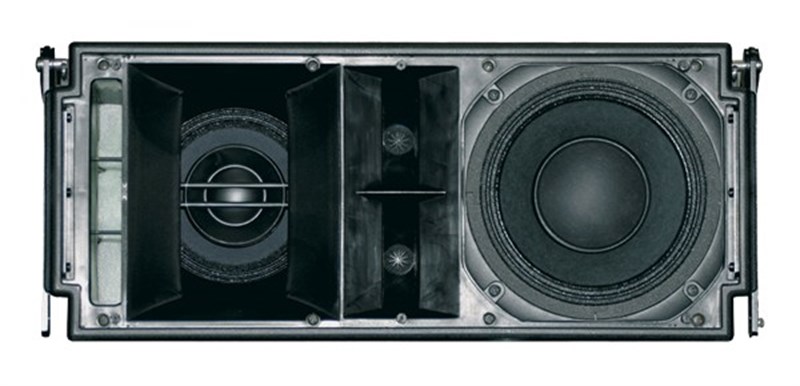

dB Technologies Dva T4 - 420 Watt Rms 3-Yollu Aktif Line Array
Technical Data
Speaker Type3-Way Active Line Array Module
Acoustical data
Frequency Response [+/- 3dB]80 - 19.000 Hz
Max SPLOne Unit: 128 dB
HF2x1 "
Voice Coil HF1.4 "
Directivity100x15° Single unit
MF1x 6.5 "
Voice Coil MF1.5 "
LF8 "
Voice Coil LF2.5 "
Amplifier
Amp TechnologyDigipro®
Amp ClassClass D
HF Amp100 W RMS
MF Amp100 W RMS
LF Amp220 W RMS
CoolingConvection
Processor
ControllerAnalog Devices
AD/DA ConverterDSP 24 bit/48 kHz
System Presets8, HF/Low-mid correction
LimiterDual Active Limiter
Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF1800 Hz
Slope MF-HF24 dB/Octave
Crossover Frequency LF-MF400 Hz
Slope LF-MF24 dB/Octave
Input
Signal Input1x XLR fem, Bal.
Signal Output1x XLR male, Bal.
Power Socket1x Powercon In
1x Powercon Out
Voltage Range90 - 240 V
Mechanics
HousingPolypropylen PP reinforced
Housing DesignTrapezoidal 15°
Rigging PointsIntegrated rigging hardware
Width580 mm (23.2 in)
Height240 mm (9.6 in)
Depth327 mm (13.08 in)
Weight13.8 kg (30.42 lbs)
