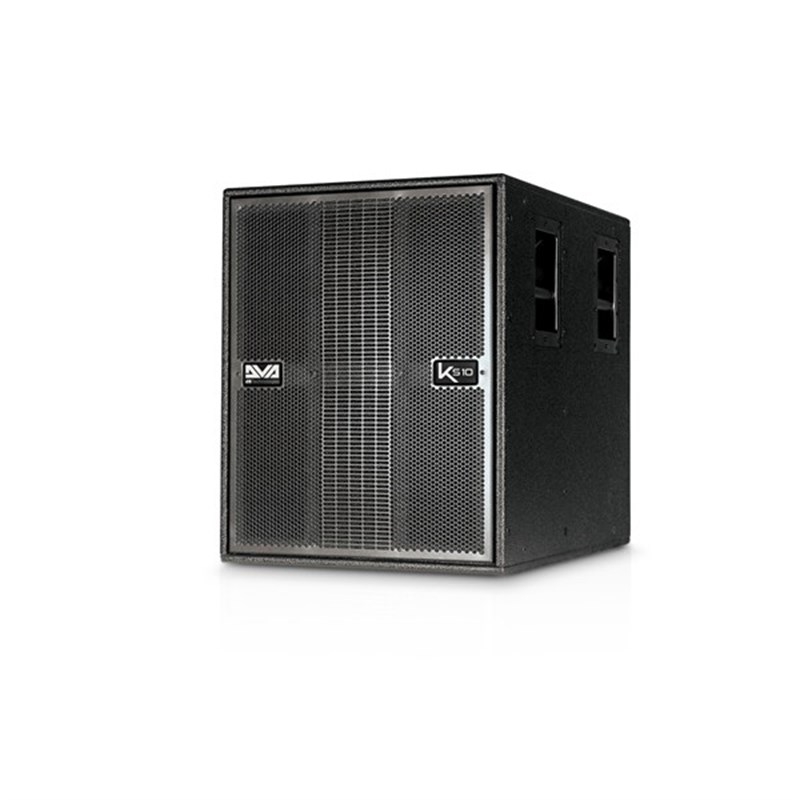

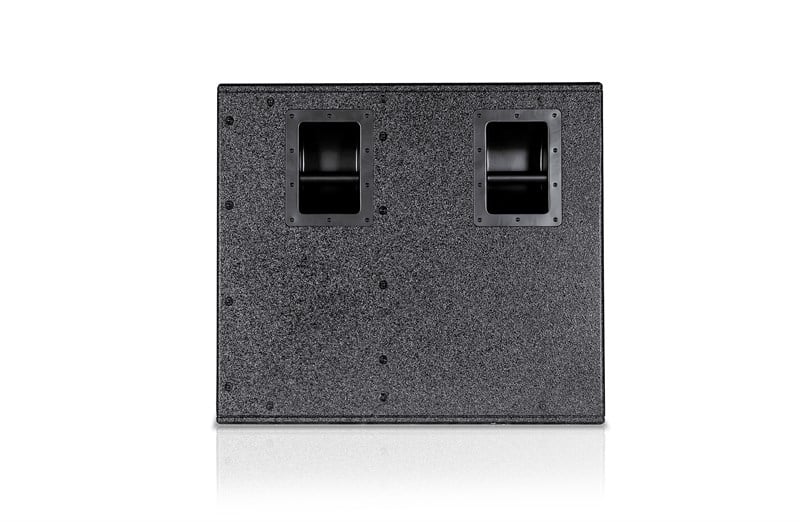

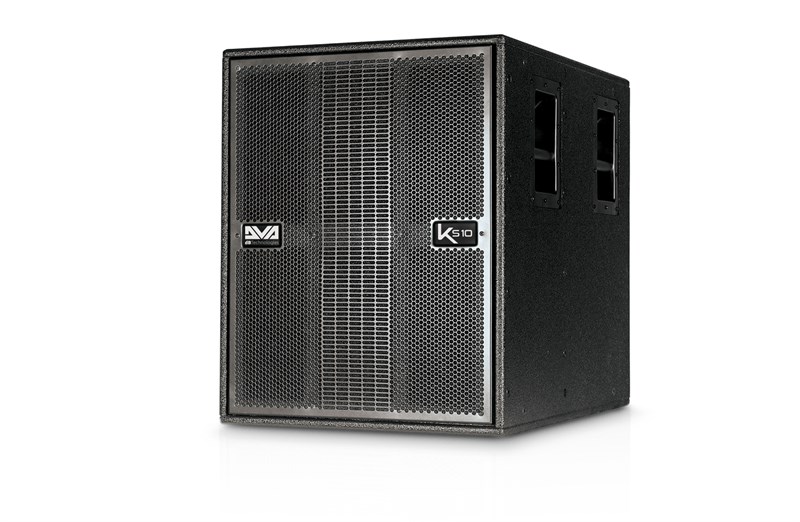

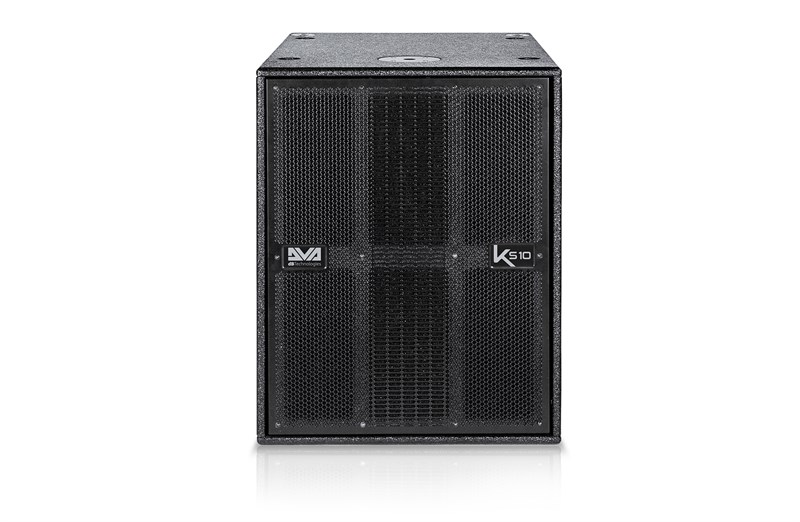

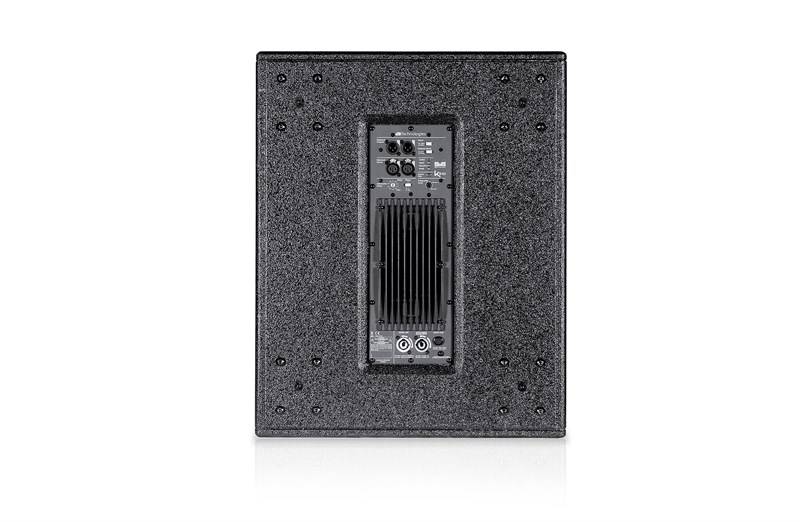

dB Technologies Dva KS10 - 18 inç 1800W Peak Asılabilir Aktif Subwoofer
Technical Data
Speaker TypeActive Semi-horn loaded Flyable Subwoofer
Acoustical data
Frequency Response [- 10 dB]41 Hz - 120 Hz
Max SPL134 dB
DirectivityOmnidirectional
LF18 "
Voice Coil LF4 "
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass D
RMS Power 900 W
Peak Power 1800 W
CoolingConvection
Power Supply 900 W SMPS with auto range PSU
Processor
ControllerDSP 56 Bit
AD/DA COnverter 24 Bit / 48 KHz
LimiterDual Active Multiband RMS, Peak, Thermal
Crossover Frequency LF-HF90, 120 Hz (selectable)
Slope LF-HF24 dB/Octave
Input
Input Section 2X XLR Balanced
Output Section 2x XLR Balanced
Power Sockets1 x Powercon In +
1 x Powercon Out
Controls1 x Input Sensitivity Rotary Switch
1 x DSP Rotary (up to 4.5 ms on-board)
1 x Polarity Inversion Switch (0°-180°)
1 x X-Over Frequency Switch (90 Hz, 120Hz)
1 x Output Mode Switch (Link - X-Over)
Mechanics
HousingMultiplex plywood
Handles2x Side
Pole Mount1x M20 on top
Rigging Points2xPick Points on top to fix DRK 10/20 rigging frames
Width515 mm (20.27 in)
Height640 mm (25.19 in)
Depth720 mm (28.34 in)
Weight43.4 kg (95.69 lbs
