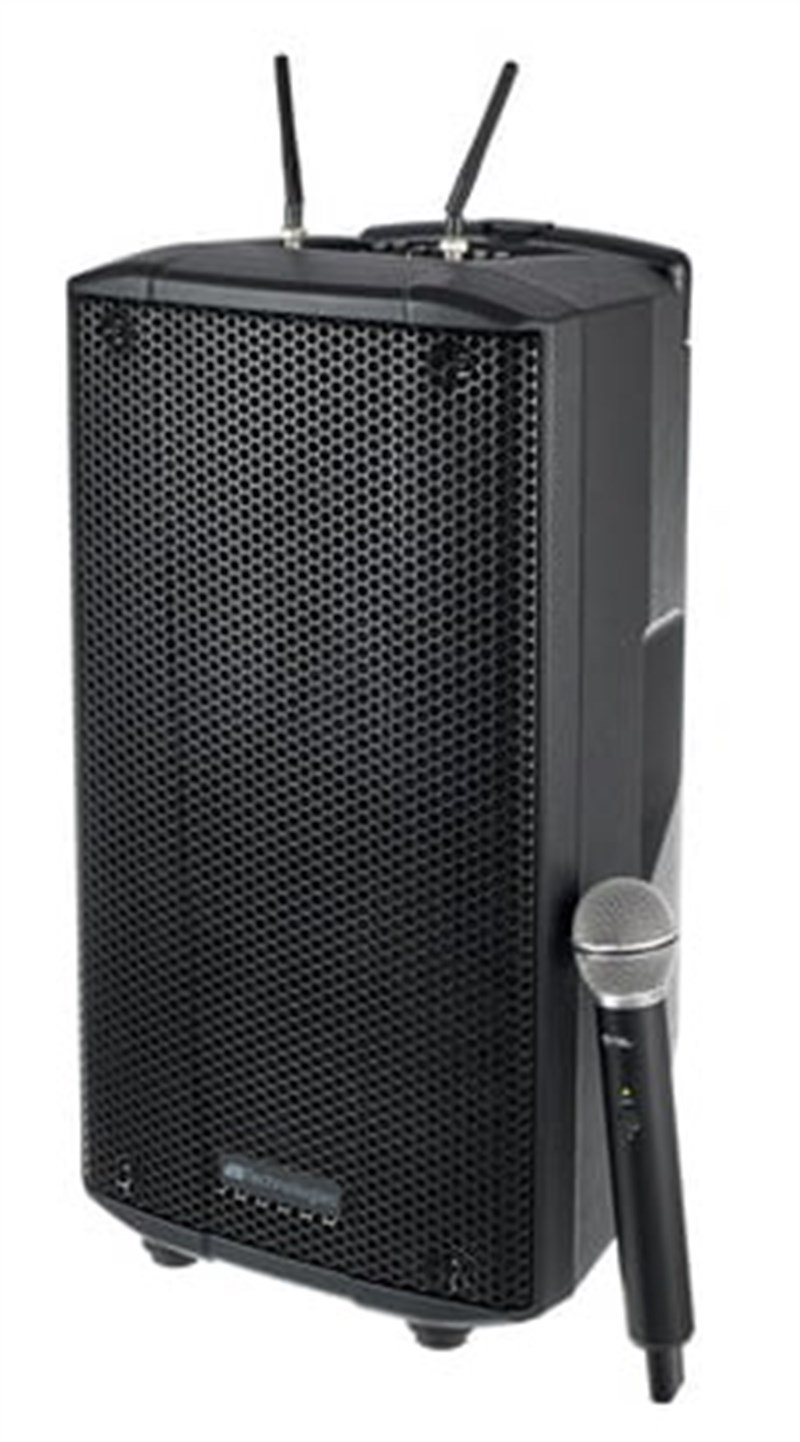

dB Technologies B-HYPE HT MOBILE Kablosuz Mikrofonlu Profesyonel Taşınabilir Aktif Hoparlör Sistemi
PROFESSIONAL ACOUSTIC PERFORMANCE ON THE MOVE
INTEGRATED WIRELESS MICROPHONE SYSTEM

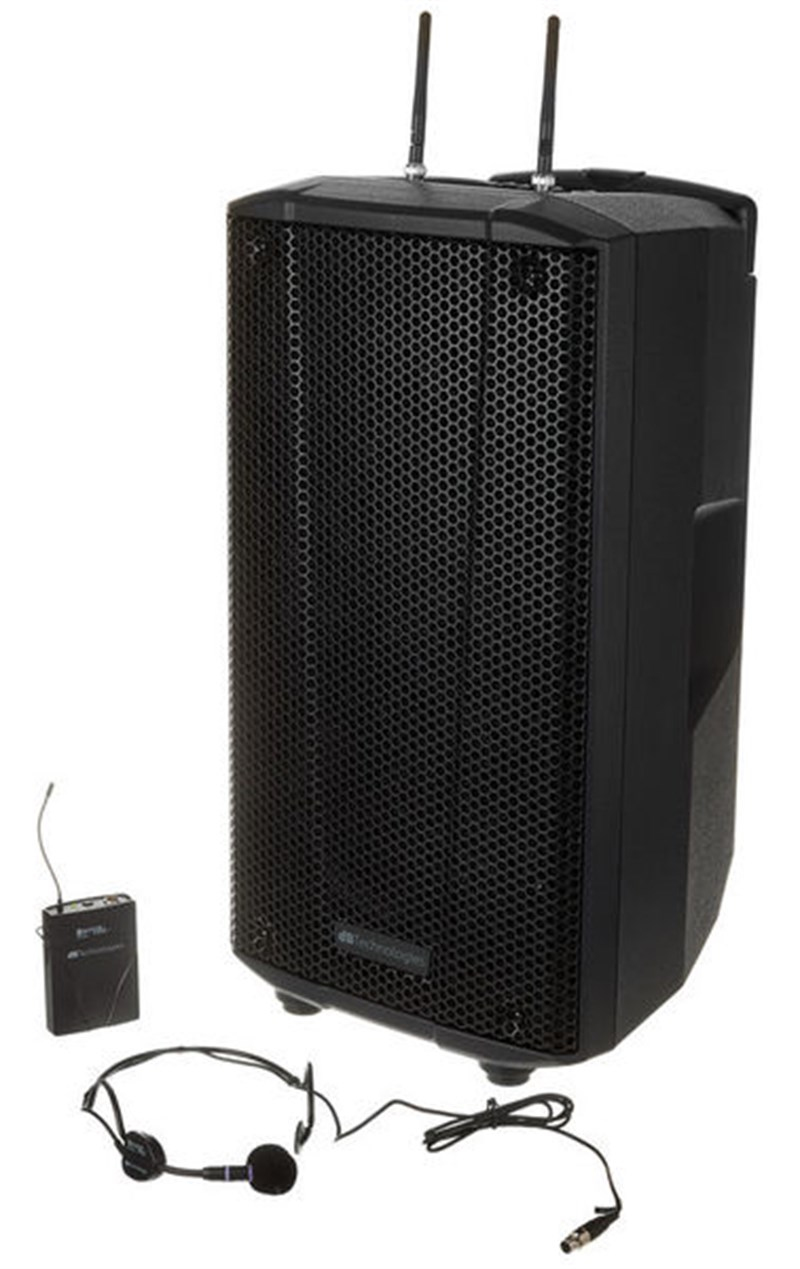

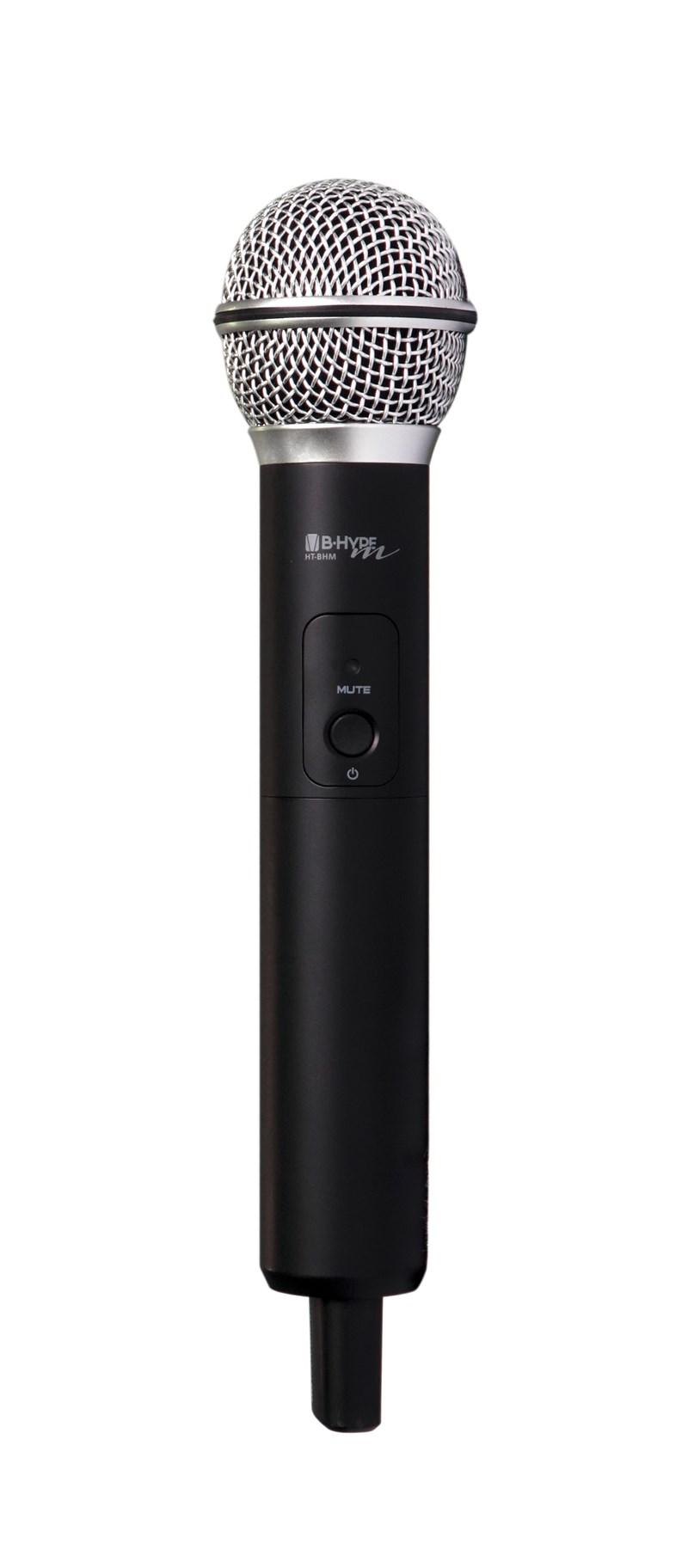

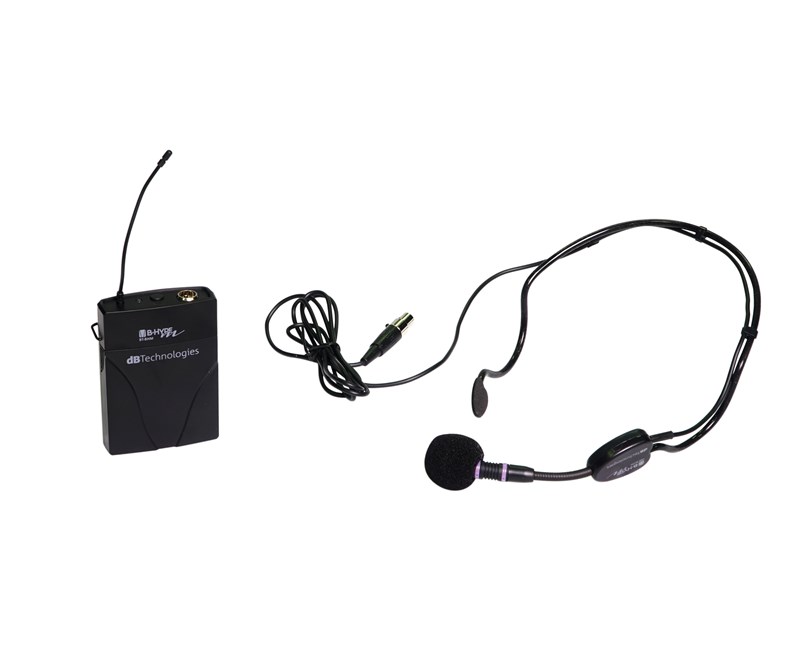

AVAILABLE WITH HANDHELD OR BODYPACK TRANSMITTER
CH1/RF PRIORITY FUNCTION
ON BOARD AUDIO MEDIA PLAYER
SD CARD, USB AND BLUETOOTH CONNECTION
UP TO 4 INPUT CHANNELS (3 IN +1 BLUETOOTH)
COMPACT FEATHERWEIGHT

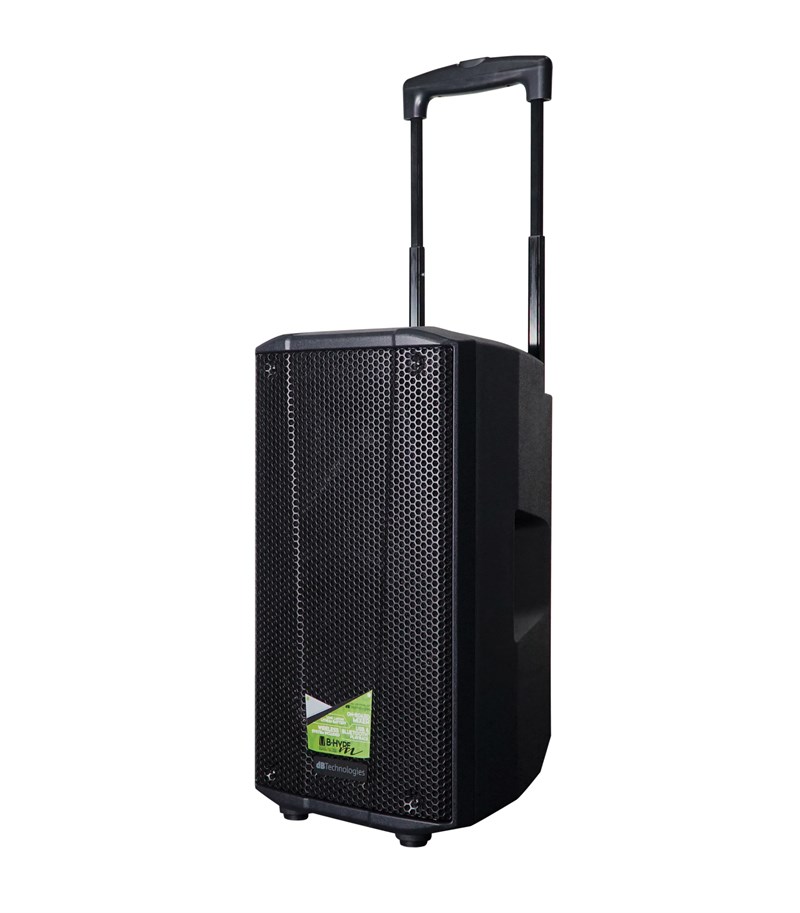

INTEGRATED WHEELS PLUS RETRACTABLE HANDLE FOR SMOOTH TRANSPORT
Acoustical data
Frequency Response [-10dB]62 - 20000 Hz
Max SPL123 dB
HF compression driver1"
LF10"
Dispersion90 ° H x 45° H
Crossover frequency2400 Hz
Amplifier
AmpClass D SMPS
Peak Power190 Watt
Special FeaturesDigital battery charger,
Battery management and
power saving functions

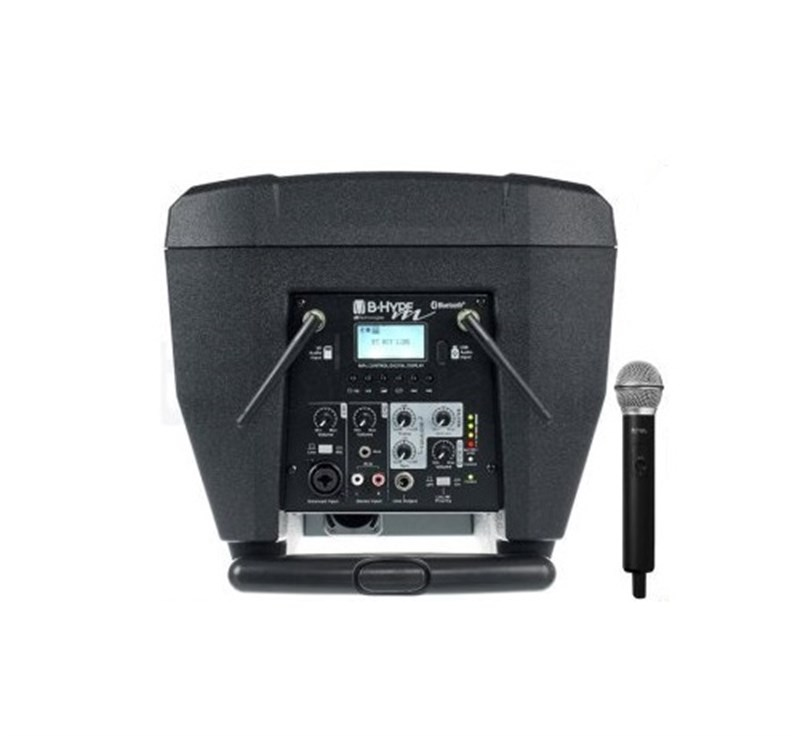

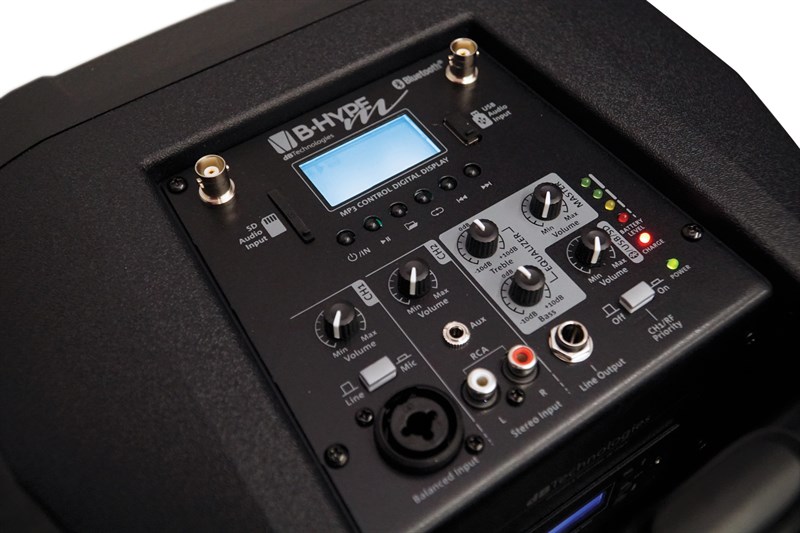

User Interface1x OLED Display with 6 keys
for media management
Wireless Input1x UHF diversity receiver,
IR sync function
Mic/Line InputXLR / 1/4" Jack Combo (Mic - Line)
Stereo Input2x RCA In + 1x mini-Jack
USB Media ReaderUSB Type "A" port for media files
(MP3-WMA-AAC) + SD card
Bluetooth® Input1x Bluetooth® receiver
Mix Out1/4” Jack (unbalanced)
Volume Controls4x rotative knobs
(Mic/Line, Stereo In, Master, Media)
Controls1x Treble and 1x Bass Equalizers
Indicators2x LEDs (LIMITER, SIGNAL)
MainsVDE Socket
1x 3-position switch
(On, Off, Recharge)
Input
Mains connectionVDE
Signal IN1x Combo (XLR/TRS) balanced;
1x stereo RCS;
1xmini-Jack
Signal OUT1x TRS link
ControlsMaster Volume, EQ (treble, bass), CH1/RF priority
Media
Mechanics
HousingPolypropylene PP
Handles1x side, 1 on top (retractable)
GrilleFull grille
Width300 mm (11.81 in)
Height568 mm (22.36 in)
Depth301 mm (11.86 in)
Weight (without transmitter)12.5 kg (27 lbs.)
