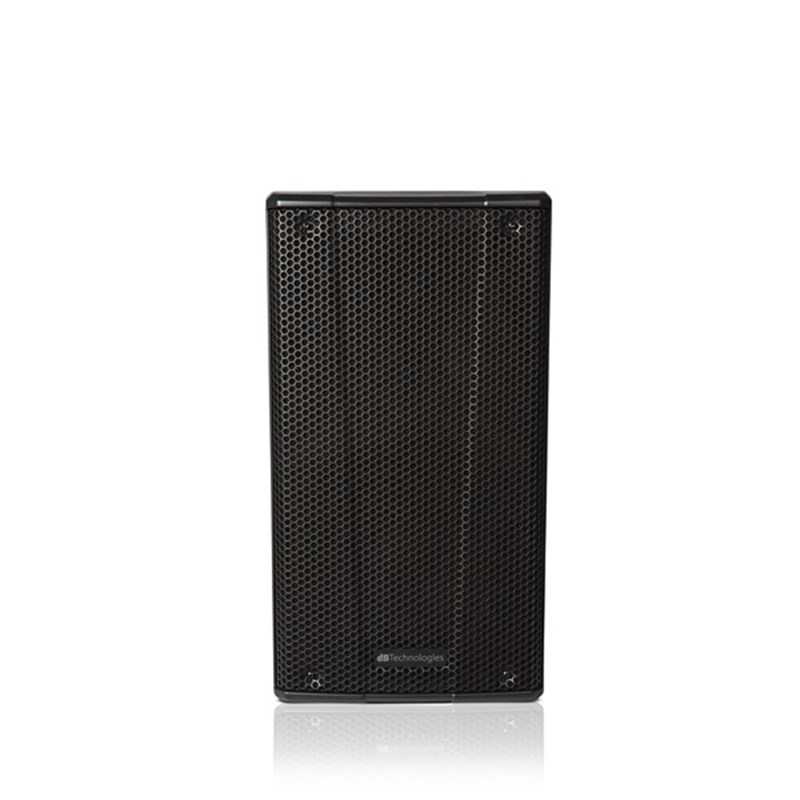

dB Technologies B-HYPE 10 10 İnch 260 Watt Aktif Kabin Hoparlör
Maximum efficiency up to 121 dB SPL
Professional acoustic performance
Innovative horn design for uniform and extended coverage
Compact featherweight
Clean and contemporary design enhancing portability
3 handles
Double stage monitor angle
Preset EQ Flat /Boost
Acoustical data
Usable Bandwidth [-10dB]55 - 20.000 Hz
Frequency Response [-6 dB]62 - 19.600 Hz
Max SPL121 dB
Type HFCompression Driver
HF voice coil 1 "
LF10 "
LF voice coil 1.5 "
Crossover Frequency 2300 Hz (24 dB/oct.)
Horizontal Dispersion asymmetrical 85° up / 120°down
Vertical Dispersion 85° (+25/ -60°)
Amplifier
Amp TechnologyCustom Made
Amp ClassClass D - Passice cooling (convection)
Power Peak 260 W
Processor
ControllerDSP 28/56 bit- 48 kHz
LimiterPeak, RMS, Thermal
Controls Volume, Audio Input Sensitivity, DSP Preset
Input
Main Connection VDE
Signal Input Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out (Balanced) 1xXLR OUT (LINK)
Mechanics
HousingPolypropylene
Grille Full Metal Grille
Handles 3 (2 on side 1 on top)
Pole Mount 36 mm
Width295 mm (11.61 in)
Height544 mm (21.42 in)
Depth283 mm (11.14 in)
Weight9 kg (19.84 lbs)
Angles UpDouble wedge angle 45°
