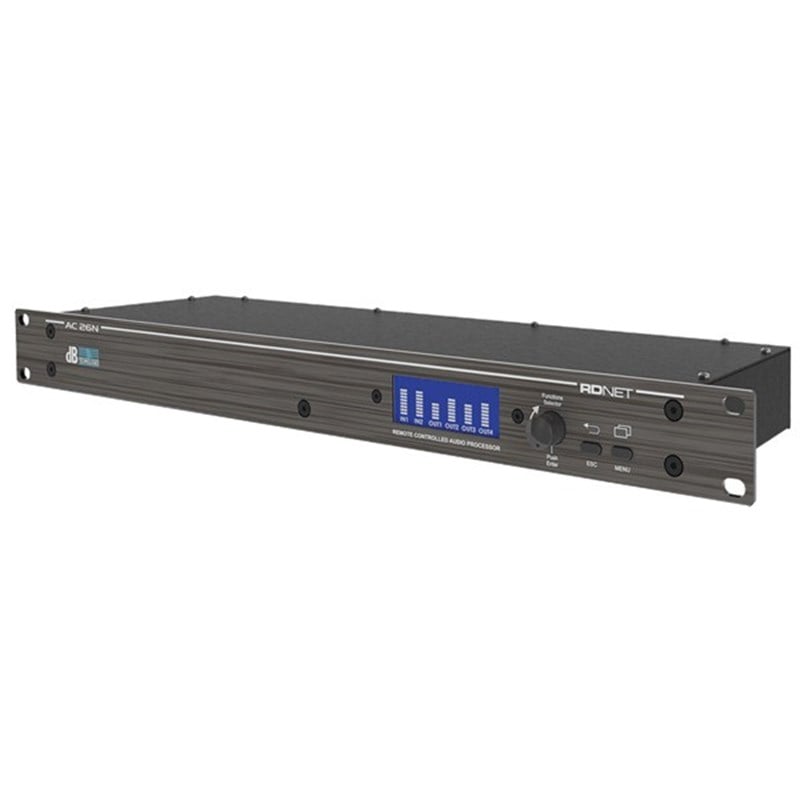

dB Technologies AC26N Dijital Hoparlör Kontrol Prosesörü
Audio Performance
Frequency Response +/- 0.1 dB (20 to 30 kHz)
Dynamic Range 116 dB typical
Common Mode Rejection Ratio > 60 dB (50 to 10 kHz)
Crosstalk < -100 dB
Distortion 0.002% (1 kHz @ +4 dBu)
Digital Audio
Processor DSP 28/56-bit
Processing Data Processing Frequency: 24-bit BURR BROWN
Digital to Analog Converter 24-bit BURR BROWN
Propagation Delay 1.5 ms
Storage 32 presets
Controls
Display Graphic LCD
Buttons & Controls ESC - Menu - Functions Selection - Enter
Inputs / Outputs
Analog I/O n°2 x XLR (3 pole female) / n°6 x XLR (3 pole male)
Digital Input n°1 x XLR (3 pole female) - SPDIF-AES/EBU (AES3)
Digital Output n°1 x XLR (3 pole male) - Compliant with the input standard
Other I/O RDnet Inputs/Output: n°2 x XLR RJ45 (Cat5 cable)
USB B-Type
Sound
Gain -80 dB to +20 dB (step 0.1 dB)
Delay Input to Output 0 to 72.9 ms (step 0.1 ms)
Phase 0° to 180°
Compression Threshold: -80 dB @ +20 dB (step 0.1 dB)
Ratio: 1:1 to Inf:1 (step 0.01)
Output Gain: 0 to 40 dB (step 0.1 dB)
Attack Time: 1 to 1000 ms (step 0.1 ms)
Release Time: 1 to 1000 ms (step 0.1 ms)
Hold Time: 1 to 1000 ms (step 0.1 ms)
Equalizer 12 equalizers for each input and output
Type: PEQ (parametric), Hi-shelf, Lo-shelf
Frequency 20 Hz to 20 kHz (step 1 Hz)
Gain -30 to +15 dB (step 0.01 dB)
Band 0.05 to 2 dB (step 0.01 dB) - only with PEQ
Filter Filter Linkwitz Riley
Type: HP High-pass, LP Low-pass
Slope 12dB/oct - 24 dB/oct - 48 dB/oct
Cut-Off Frequency 5 Hz to 20 kHz (step of 1 Hz)
Power Supply Full-range 100 to 240 VAC / 50 to 60 Hz
Dimensions (W x H x D) 19 x 1.7 x 5.1" (48 x 4.3 x 13 cm)
Weight 4.2 lb (1.9 kg)
