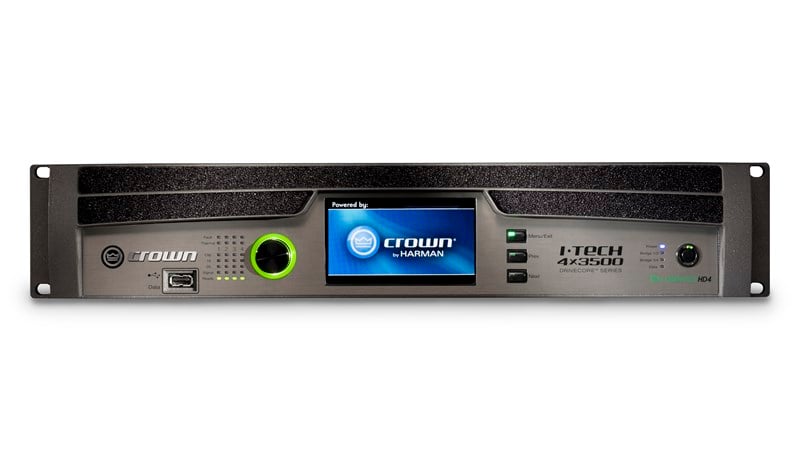

Crown IT4X3500HDS Power Anfi 4 x 4000 Watt 4 ohm
The I-Tech 4x3500HD amplifier is the industry's first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs. Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings. Combine that with Crown's patented Class-I technology delivering uncompromising power output across all four channels, and it's easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.
More Flexibility
True Ethernet backbone – fast, reliable and scalable
Color LCD provides users with diagnostics and presets for easy setup
Includes SLM (Sweep Load Monitoring) with system-level diagnostics
Front panel USB connector transfers presets to/from a USB drive to the amp’s DSP
New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard
The only product available with analog, AES, CobraNet®, HiQnet™ and Ethernet connectivity
No Compromise
BSS OMNIDRIVEHD™ DSP processing with industry leading IIR filters and linear phase FIR filters
High common-mode rejection eliminates hum and RFI on input cables
Professional-grade connectors for all inputs and outputs
Full power-supply voltage is always available, allowing instantaneous power on demand
Quality-graded components let you safely drive the amplifier harder
More total capacitance provides tremendous energy reserves for power bursts
No Comparison
The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)
LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
Sixth generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw
Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (±15%)
Channels 4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet)
Sensitivity Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms
Damping Factor > 5000
Signal to Noise Ratio ≥ 108dB
THD (full rated power, 20 Hz - 20 kHz) 0.35%
Frequency Response ± 0.25dB
Intermodulation Distortion (from 0 dB down to -40 dB) 0.06%
Crosstalk > 80dB
Common Mode Rejection > 80dB typical
Dimensions 3.3" x 19" x 16.95" (8.9 cm x 48.3 cm x 43.1 cm)
Net Weight 29 lbs (13.2 kgs)
Power Connector 32A powerCON (on amp) - L6-30 plug (into wall)
