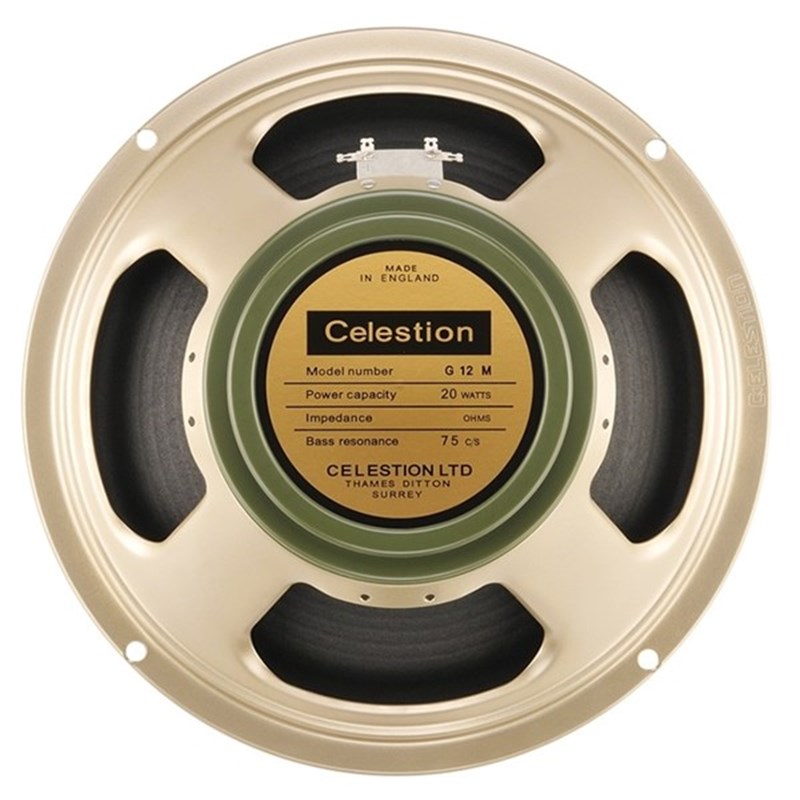

Celestion G12M - 67 8 Ohm 20W, 12'' Gitar Hoparlörü
Specifications:
Nominal diameter 12", 305mm
Power Rating 20W
Nominal impedance 8Ω & 15Ω
Sensitivity 96dB
Chassis type Pressed steel
Voice coil diameter 1.75", 44.5mm
Voice coil material Round copper
Magnet type Ceramic
Magnet weight 35oz, 0.99kg
Frequency range 75-5000Hz
Resonance frequency, Fs 75Hz
DC resistance, Re 6.57Ω & 12.3Ω
Mounting Information
Diameter 12.2", 309mm
Overall depth 5.1", 130mm
Magnet structure diameter 5.9", 150mm
Cut-out diameter 11.1", 283mm
Mounting slot dimensions 0.31", 7.9mm
Number of mounting slots 4
Mounting slot PCD 11.7", 297mm
Unit weight 7.9lb, 3.6kg
