Behringer SPL3220 Stereo Multiband Sound Processor / Loudness Maximizer / Limiter

Professional multiband sound processor for public address, broadcasting and mastering applications
Multiband technology provides for brilliant and lively audio processing without audible “pumping” artifacts
Loudness maximization to achieve ultimate signal density for public address and competitive broadcast sound
Leveler automatically adjusts signal density for harmonized loudness and enhanced listening experience
Protects speaker systems that are submitted to continuous operation at maximum SPL
Controls the maximum allowable sound pressure level in public musical environments such as discotheques, pubs, etc.
Speech enhancer to dramatically increase speech intelligibility for PA applications such as airports and emergency announcement systems
IKA (Interactive Knee Adaptation) compressor features “inaudible” compression and prevents "pumping" due to low-frequency signals
IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
Highly accurate 8-segment input/output level and gain reduction meter

True stereo operation through RMS energy summing for perfect stereo imaging
Complies with certain regulations – unit can be sealed to avoid unauthorized changes to settings

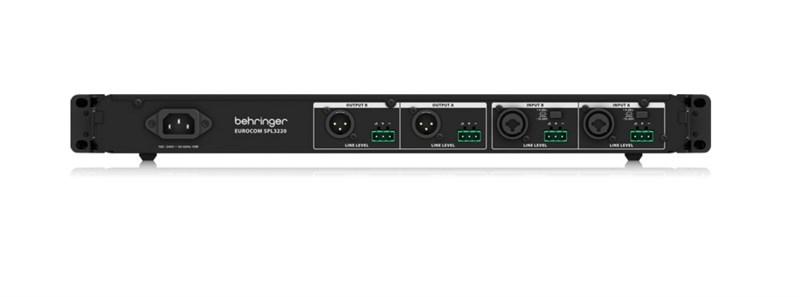

Two balanced/unbalanced inputs on combination line level XLR/TRS and 3-pin Euroblock connectors
Operating level switchable from +4 dBu to -10 dBv

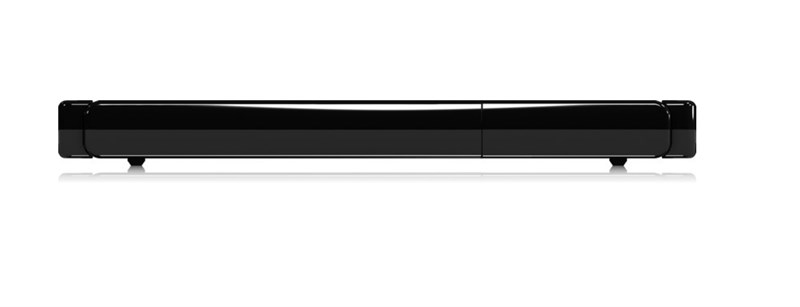

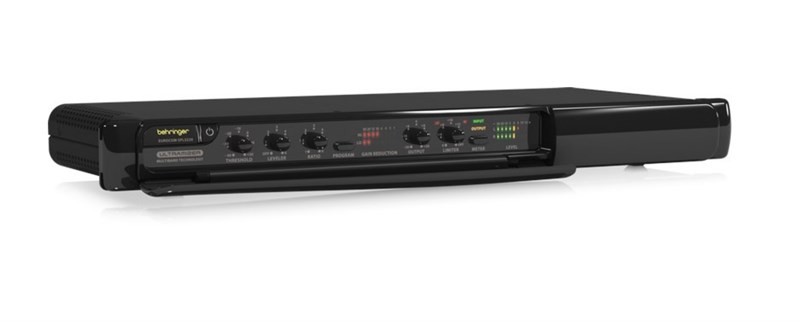

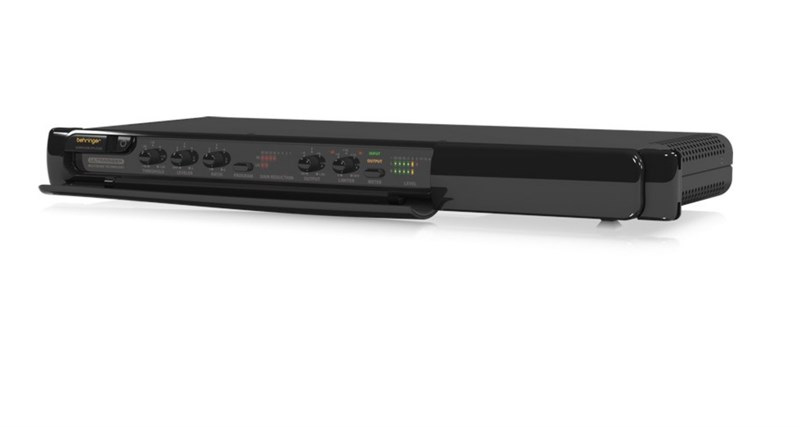

Hinged front door panel covers the control surface plus the power switch
Rack ear screw covers, IEC-type AC power cord and all mating Euroblock connectors included
Ultra-light, ultra-low noise and ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
3-Year Warranty Program*
Designed and engineered in Germany

MULTIBAND DYNAMICS PROCESSOR SPL3220
Whether at a club, a church or an outdoor festival, the ability to accurately and effectively control sound volume has always been challenging. Especially in today’s regulatory environment, it's extremely important for proprietors to have a solution in place to prevent complaints and fines, and to protect their customers and sound system when an over-enthusiastic engineer decides to “crank it up.” The SPL3220 offers the ideal solution, providing dependable and seamless full-loudness control – without sacrificing the sonic integrity of the sound system, or listening pleasure of the audience.

Exceptional Sound Quality and Intelligibility
Thanks to onboard, multiband Interactive Gain Control (IGC) and Interactive Knee Adaptation (IKA) compression, the SPL3220 allows you to apply processing with surgical precision for maximum punch and intelligibility – without the audible artifacts associated with traditional, broadband dynamics processors. Additionally, the SPL3220 can be used for mix leveling and maximizing signal density at low volumes, where perceived loudness becomes even more important. Add to this the ability to enhance speech intelligibility and provide exceptional loudspeaker protection, while preserving dynamic range – and the SPL3220 becomes an essential part of every audio engineer’s toolkit.

Total Control is in Your Hands
Professional XLR/TRS combination and Euroblock connectors provide the ultimate in versatility, allowing the SPL3220 to be inserted in-line prior to house amplification, no matter the system configuration. Built-in hard-bypass relays ensure system protection and signal continuity in the event of a power failure, or an accidental disconnect. High-accuracy I/O Level and Gain Reduction meters, plus an elegant and intuitive control panel make optimal system setup fast and easy. SPL3220's control panel access cover can even be sealed to prevent unauthorized access, providing total system security.
