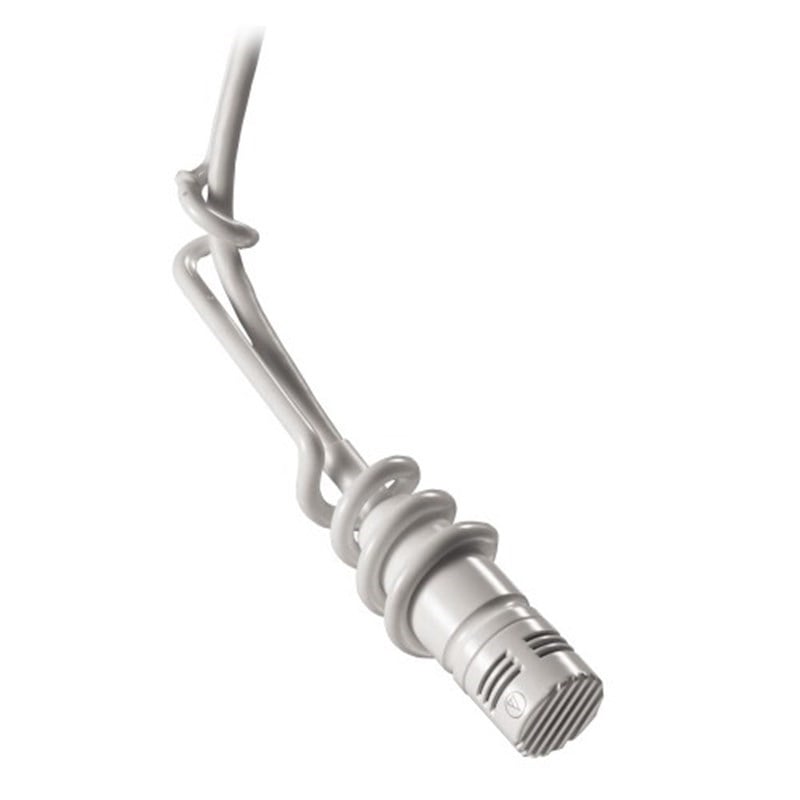

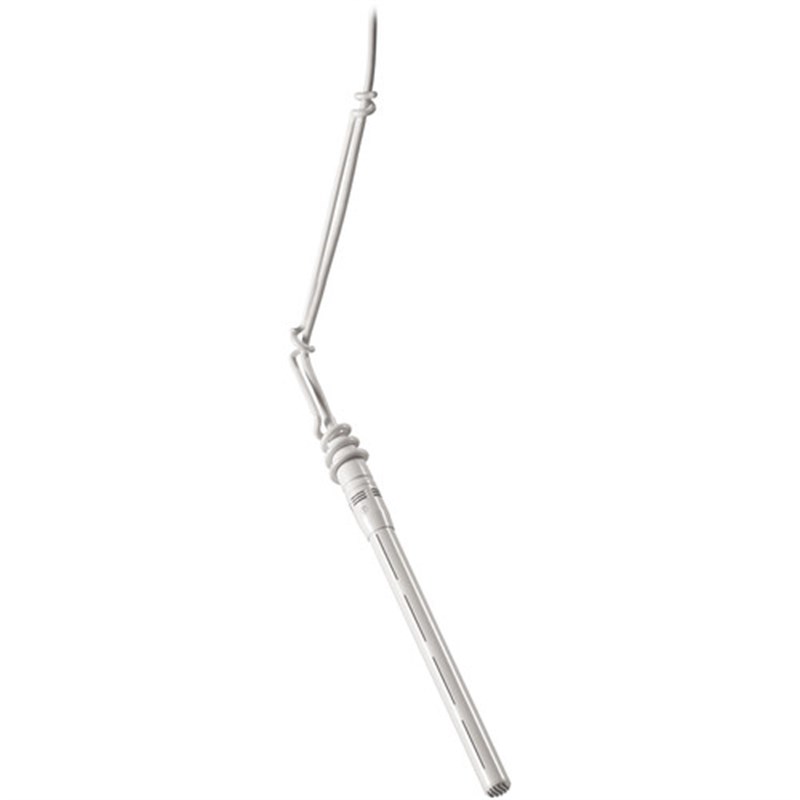

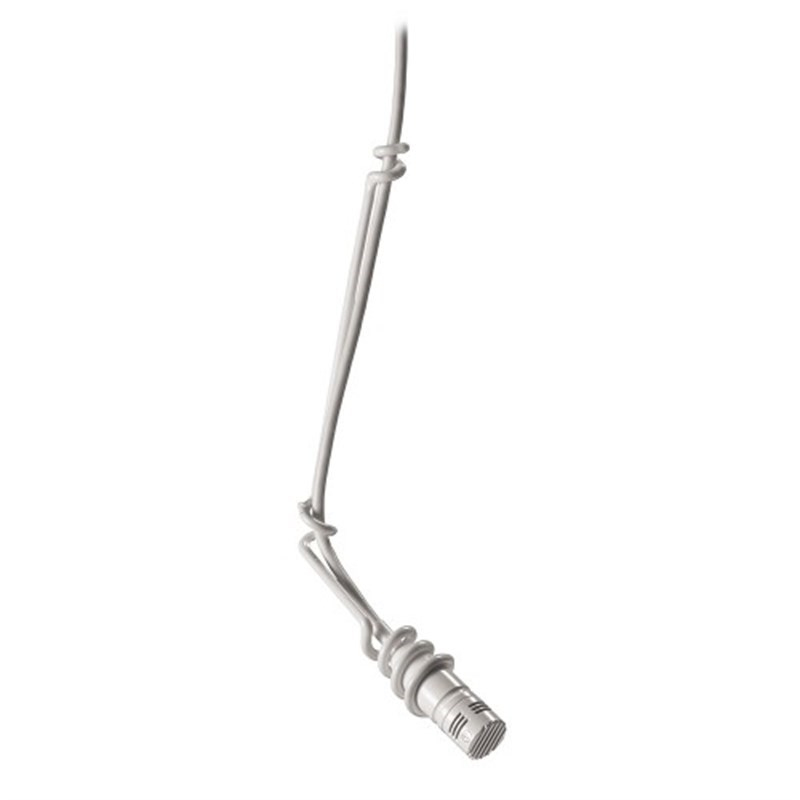

Audio-Technica U853AU UniLine® Kondenser Asılı Beyaz Mikrofon
Equipped with Audio-Technica's UniLine® line-cardioid element with a tightly focused 90º acceptance
angle, the U853AU features UniGuard® innovations that offer unsurpassed immunity from radio frequency
interference. The battery or phantom powered microphone accepts interchangeable elements, available in
cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. It also offers an 80Hz low-cut
UniSteep® filter that reduces pickup of low-frequency ambient noise.
Designed for suspension over choirs, instrumental groups and theater stages
UniLine polar pattern provides narrow 90° acceptance angle
Superior off-axis rejection for maximum gain before feedback
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
Low-profile design with low-reflectance finish for minimum visibility
Operates on battery or phantom power
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Line Cardioid
Frequency Response: 30 - 20,000 Hz
Open Circuit Sensitivity: Phantom: -42 dB (7.9 mV) re 1V at 1 Pa
Battery: -43 dB (7.0 mV) re 1V at 1 Pa
Impedance: Phantom: 200 ohms - Battery: 270 ohms
Maximum Input Sound Level Phantom: 133 dB, 1 kHz at 1% T.H.D. - Battery: 123 dB SPL, 1 kHz at 1% T.H.D.
Low Frequency Roll Off: 80 Hz, 18 dB/octave
Switches: Off, on-flat, on-roll-off
Dynamic Range: Phantom: 109 dB, 1 kHz at Max SPL - Battery: 99 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 70 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 2 mA typical
Battery Type: 1.5V AA/UM3
Battery Current/Life: 0.4 mA / 1200 hours typical (alkaline)
Weight: 30 g
Dimensions: 6.14" (156.0 mm) long, 0.48" (12.2 mm) diameter
Output Connector: Integral 3-pin XLRM-type
Cable: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector

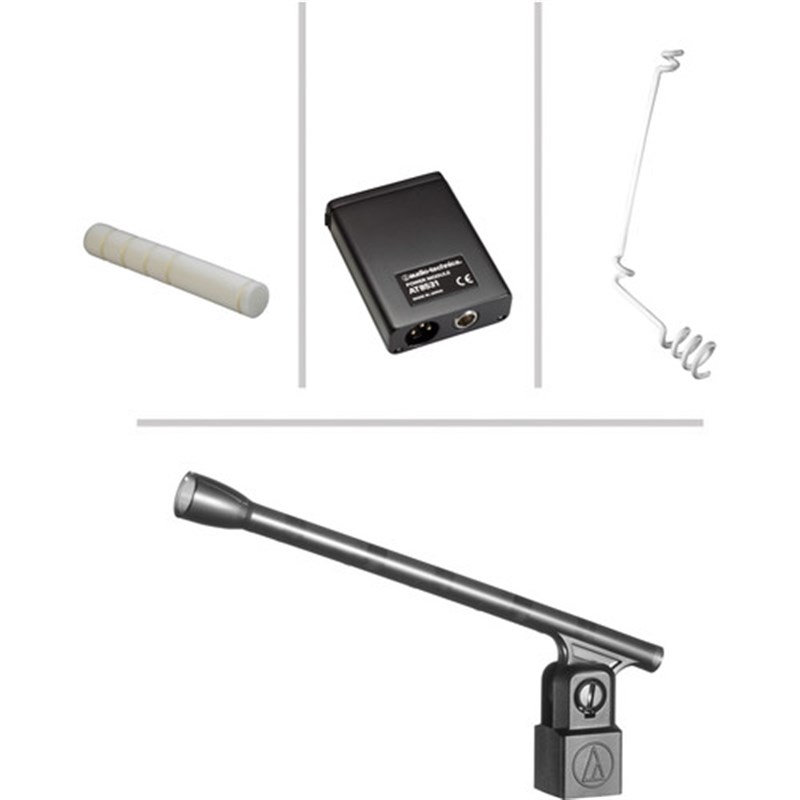

Accessories Included: AT8154 two-stage foam windscreen; AT8451 steel hanger; AT8531 power module; AT8438 5/8"-27 stand adapter; battery
Designed for suspension over choirs, instrumental groups and theater stages
UniLine polar pattern provides narrow 90° acceptance angle
Superior off-axis rejection for maximum gain before feedback
UniGuard® RFI-shielding technology offers outstanding rejection of RF
UniSteep® filter provides a steep low-frequency attenuation
Accepts interchangeable elements
Operates on battery or phantom power
