Audio-Technica U841A Çok Yönlü Kondenser Boundary Mikrofon
Audio-Technica U841A Çok Yönlü Kondenser Boundary Mikrofon

Audio-Technica U841A Çok Yönlü Kondenser Boundary Mikrofon

Fiyat : $0.00(KDV Dahil)

Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations



Audio-Technica U841A Çok Yönlü Kondenser Boundary Mikrofon

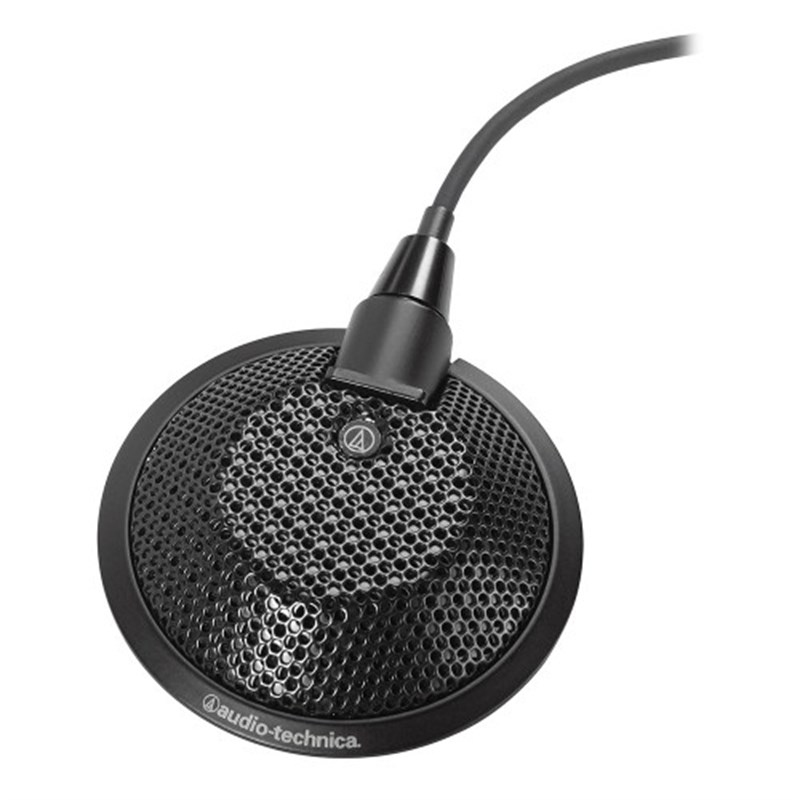

The U841A delivers exceptionally intelligible audio reproduction in a super-compact, low-profile design. Equipped with UniGuard® RFI-shielding technology, this omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound reinforcement, professional recording, television and conferencing in surface-mount applications. The U841A has a 360° pickup angle and operates on battery or phantom power.

Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Small-diameter UniPoint® capsule near boundary eliminates phase distortion and delivers clear, high-output performance
Heavy die-cast case and silicon foam bottom pad minimize coupling of surface vibration to the microphone
Low-profile design with low-reflectance black finish for minimum visibility
Operates on battery or phantom power







Element: Polarized condenser
Polar Pattern: Omnidirectional in hemisphere above mounting surface
Frequency Response: 30 - 20,000 Hz
Open Circuit Sensitivity: Phantom: -39 dB (11.2 mV) re 1V at 1 Pa Battery: -40 dB (10.0 mV) re 1V at 1 Pa
Impedance: Phantom: 200 ohms - Battery: 270 ohms
Maximum Input Sound Level: Phantom: 132 dB, 1 kHz at 1% T.H.D. - Battery: 122 dB, 1 kHz at 1% T.H.D.
Low Frequency Roll Off: 80 Hz, 18 dB/octave
Switches: Off, on-flat, on-roll-off
Dynamic Range: Phantom: 111 dB, 1 kHz at Max SPL Battery: 101 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 73 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 2 mA typical
Battery Type: 1.5V AA/UM3
Battery Current/Life: 0.4 mA / 1200 hours typical (alkaline)
Weight: 78 g
Dimensions: Ø 65.0 - h:15.1 mm - 108.0 (L) x 84.0 (W) x 23.0 (H) mm
Output Connector: 3-pin XLRM-type
Cable: 25.0' (7.6 m) long (permanently attached to microphone), 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F-type connector
Accessories Included: AT8531 power module; battery; soft protective pouch

Ideal for sound reinforcement, professional recording and conferencing
Outstanding rejection of radio frequency interference (RFI)
UniSteep® filter provides a steep low-frequency attenuation
Small-diameter UniPoint® capsule near boundary eliminates phase distortion
Heavy die-cast case and silicon foam bottom pad
Operates on battery or phantom power




Kullanım Kılavuzu















Kablolu Mikrofon
Boundary
