Audio Technica PRO70 Cardioid condenser lavalier / instrument microphone
Miniature condenser microphone is ideal for both vocal and acoustic guitar applications

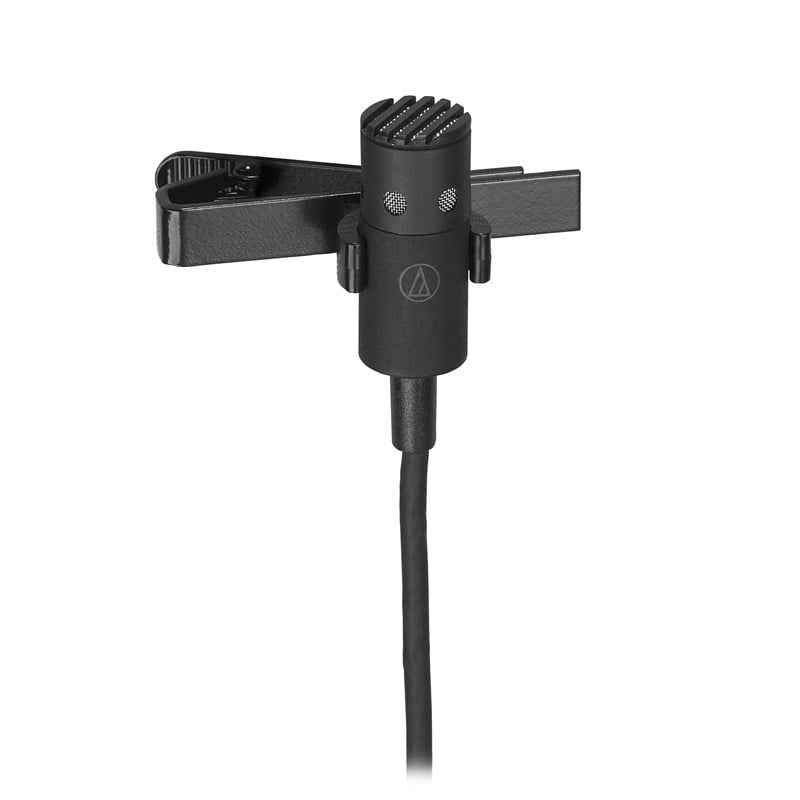

Natural and articulate vocal reproduction when used as a clip-on lavalier—clothing clip included

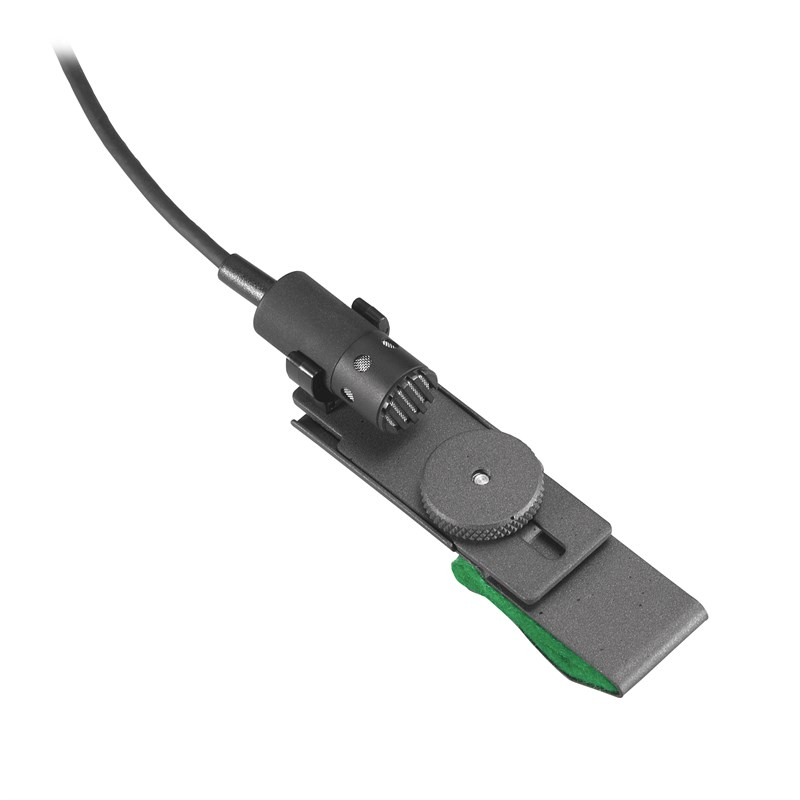

Excels in pickup of acoustic guitar with included instrument adapter
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Switchable low-frequency roll-off
Corrosion-resistant contacts from gold-plated XLRM-type connector
Operates on battery or phantom power

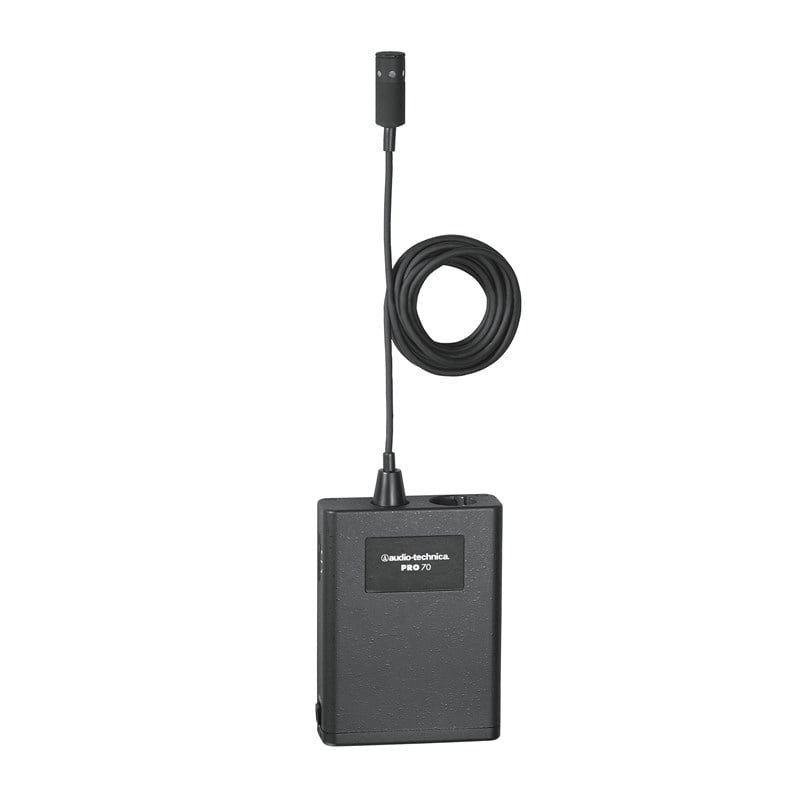

6' (1.8 m) cable permanently attached between microphone and power module
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
100-14,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY
Phantom: -45 dB (5.6 mV) re 1V at 1 Pa
Battery:
-45 dB (5.6 mV) re 1V at 1 Pa
IMPEDANCE
Phantom: 200 ohms
Battery:
200 ohms
MAXIMUM INPUT SOUND LEVEL
Phantom: 123 dB SPL, 1 kHz at 1% T.H.D.
Battery: 123 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
Phantom: 96 dB, 1 kHz at Max SPL
Battery:
96 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
67 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 2 mA typical
BATTERY TYPE
1.5V AA/UM3
BATTERY CURRENT / LIFE
0.4 mA / 1200 hours typical (alkaline)
SWITCH
Off, on-flat, on-roll-off
WEIGHT (MICROPHONE)
0.3 oz (8 g)
WEIGHT (POWER MODULE)
4.7 oz (134 g)
DIMENSIONS (MICROPHONE)
0.98" (25.0 mm) long,
0.40" (10.2 mm) diameter
DIMENSIONS (POWER MODULE)
3.27" (83.0 mm) H x
2.48" (63.0 mm) W x
0.87" (22.0 mm) D
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
CABLE
Integral 6' (1.8 m), permanently attached between microphone and power module

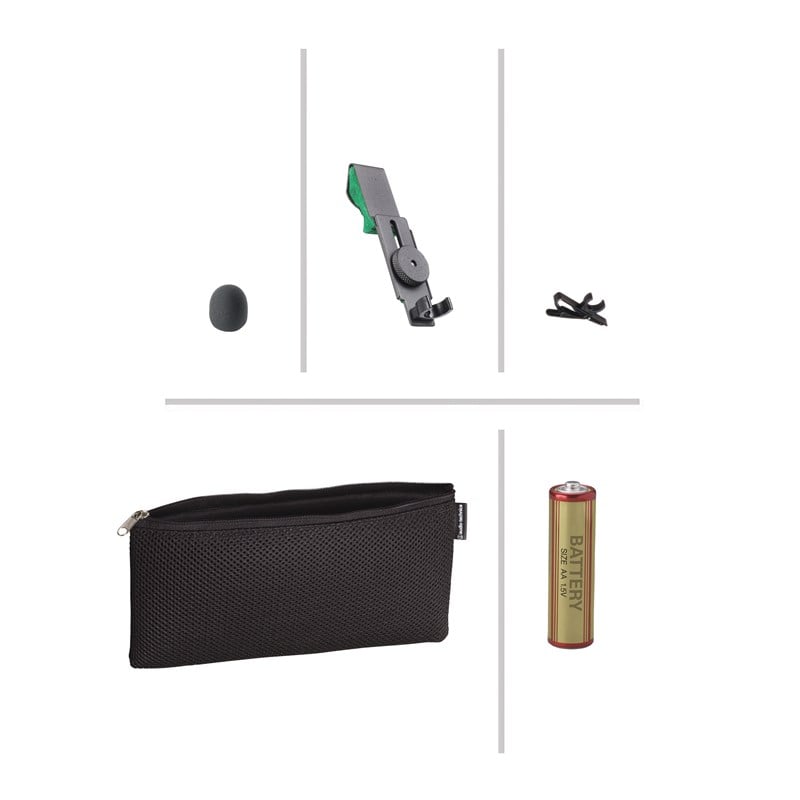

ACCESSORIES FURNISHED
AT8411 clothing clip; AT8444 instrument adapter; power module; windscreen; battery; soft protective pouch
AUDIO-TECHNICA CASE STYLE
M1
