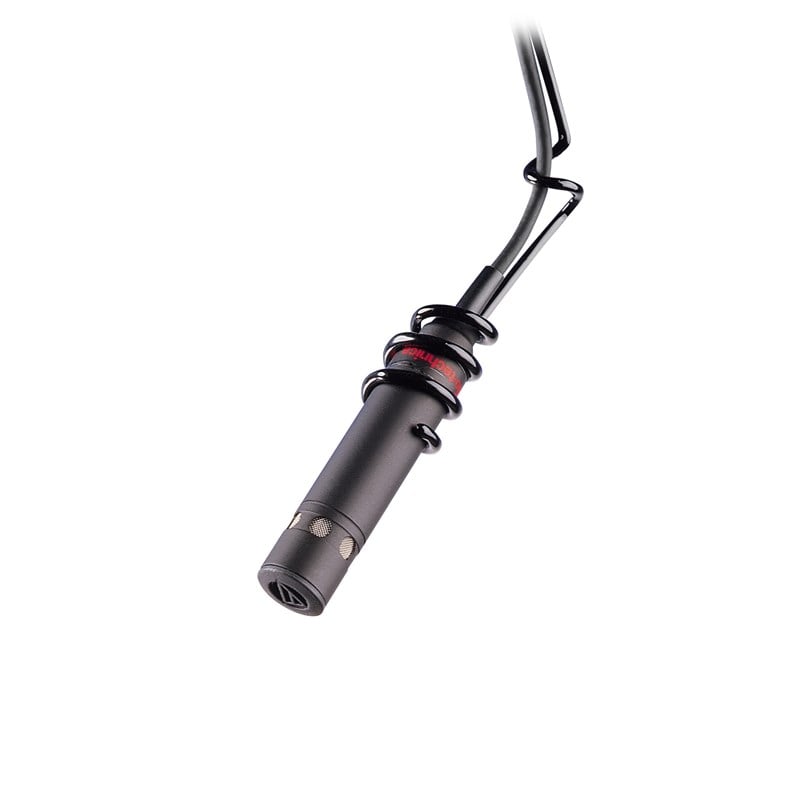

Audio Technica PRO45 Kardioid Kondenser Asma Koro Mikrofonu
Hi-SPL handling is ideal for suspension over choirs and orchestras
Wide-range condenser element with low-mass diaphragm for superior performance
Self-contained electronics eliminate need for external power modules
Flat, smooth frequency response
25' (7.6 m) cable permanently attached between microphone and XLRM-type connector
Also available in white as PRO 45W
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
70-16,000 Hz
OPEN CIRCUIT SENSITIVITY -37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE
100 ohms
MAXIMUM INPUT SOUND LEVEL
134 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
106 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
66 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
9-52V DC, 2 mA typical
WEIGHT
0.5 oz (15 g)
DIMENSIONS
2.24" (56.9 mm) long
0.47" (12.0 mm) head diameter
OUTPUT CONNECTOR
3-pin XLRM-type on cable
CABLE
25' (7.6 m) long, permanently attached
ACCESSORIES FURNISHED AT8146(WH)
windscreen; AT8451(WH) steel hanger
AUDIO-TECHNICA CASE STYLE
M21
