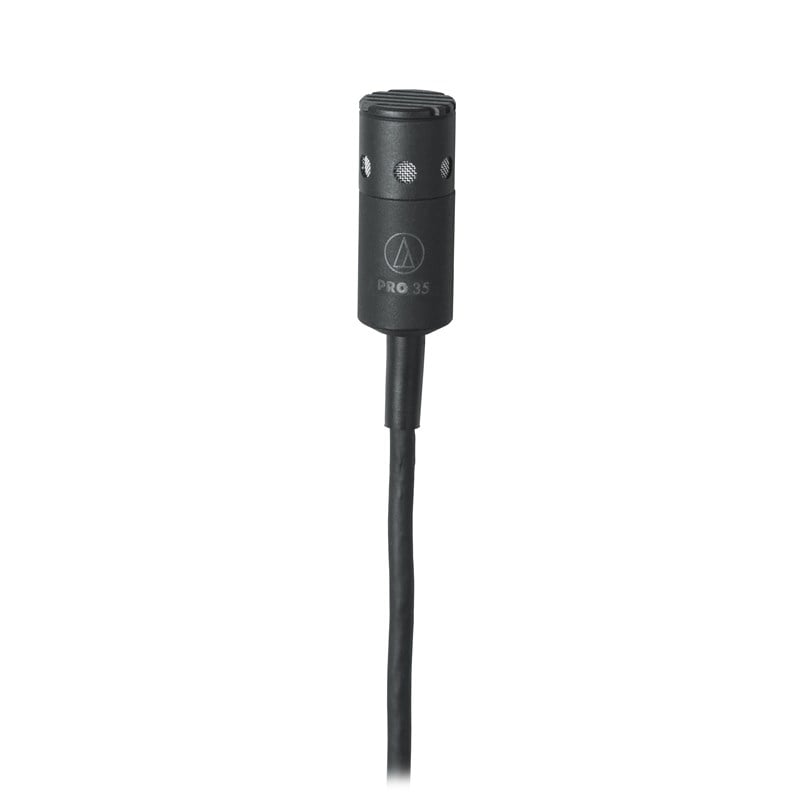

Audio Technica PRO35 Cardioid Condenser Clip-on Instrument Microphone
Designed for sax, toms, brass and percussion,
the PRO 35 excels in high-SPL applications and is ideal for active stage performances.
Its extended frequency response captures subtle nuances of the performance.

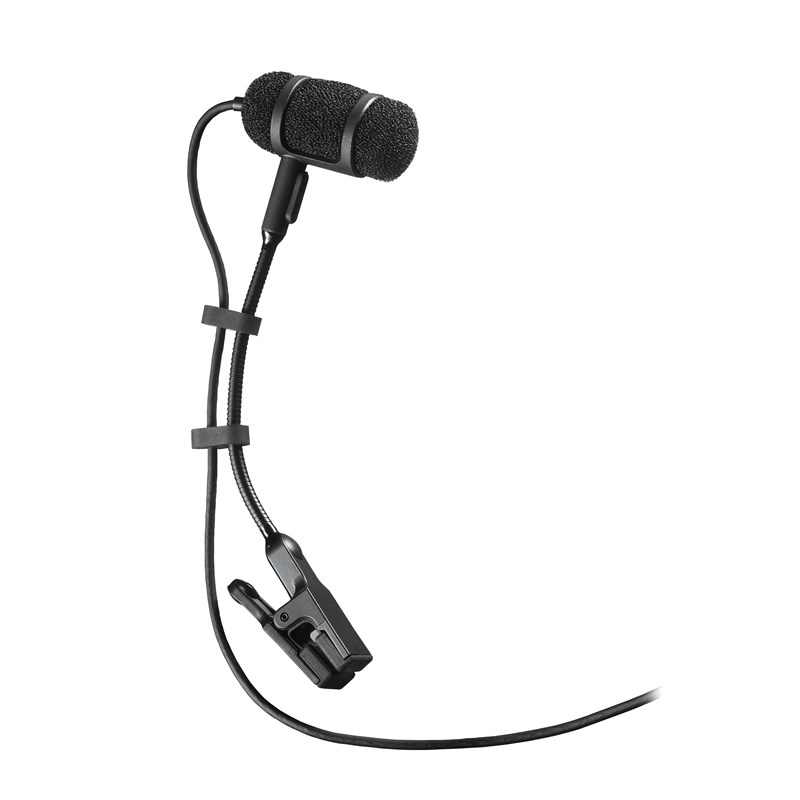

The included UniMount® clip permits accurate positioning and provides shock resistance while protecting the element.
The microphone’s cardioid polar pattern reduces pickup of sounds from the sides and rear,
improving isolation of the desired sound source.
UniMount® clip permits accurate positioning, provides shock resistance and protects element
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Extended frequency response captures subtle nuances of the performance
6' (1.8 m) cable permanently attached to microphone
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
50-15,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY
-45 dB (5.6 mV) re 1V at 1 Pa
IMPEDANCE
250 ohms
MAXIMUM INPUT SOUND LEVEL
145 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
115 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
64 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 2 mA typical
SWITCH
Flat, roll-off
WEIGHT (MICROPHONE)
0.3 oz (8 g)
WEIGHT (POWER MODULE)
2.9 oz (81 g)
DIMENSIONS (MICROPHONE)
0.98" (25.0 mm) long,
0.40" (10.2 mm) diameter
DIMENSIONS (POWER MODULE)
3.66" (92.9 mm) long,
0.74" (18.9 mm) diameter
OUTPUT CONNECTOR (POWER MODULE)
Integral 3-pin XLRM-type
CABLE
6.0' (1.8 m) long (permanently attached to microphone),
0.10" (2.6 mm) diameter, 2-conductor,
shielded cable with TA3F-type connector

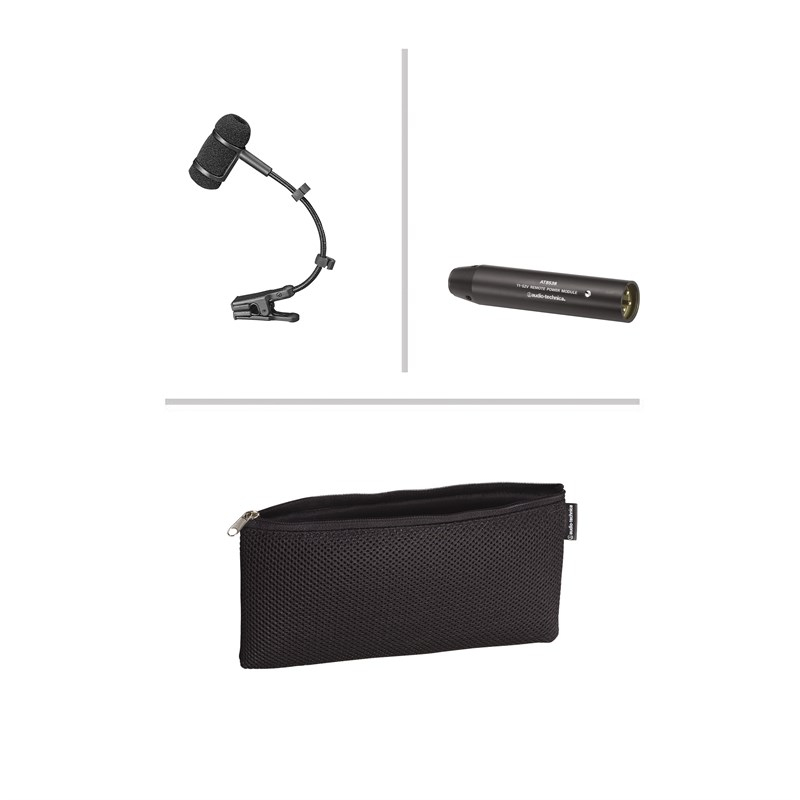

ACCESSORIES FURNISHED
AT8418 UniMount® microphone instrument mount; AT8538 power module; soft protective pouch
AUDIO-TECHNICA CASE STYLE
M12
