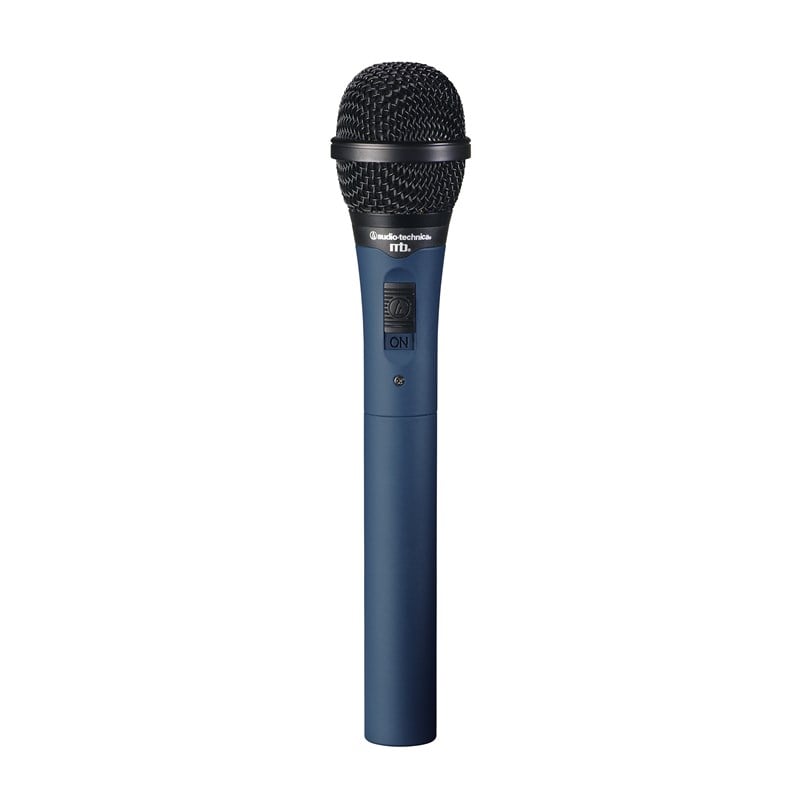

Audio-Technica MB4K Kondenser Enstruman ve Vokal Mikrofonu
A price/performance leader, the MB 4k cardioid condenser microphone is the Midnight Blues® Series’ introductory
studio-quality microphone. With a condenser design for studio vocal and instrument applications, the microphone
features: battery/phantom operation; rugged all-metal construction; soft-touch finish; extended response for smooth,
natural sonic characteristics; corrosion-resistant contacts from gold-plated XLRM-type connector; on/off switch.
Introductory studio-quality microphone—the clear price/performance leader
Condenser design for studio-quality vocals and instruments
Extended response for smooth, natural sonic characteristics
Rugged all-metal construction and on/off switch
Soft-touch finish for a secure, comfortable grip and reduced mechanical noise
Battery/phantom operation for maximum versatility
Corrosion-resistant gold-plated XLRM-type connector
ELEMENT
Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
80-20,000 Hz
OPEN CIRCUIT SENSITIVITY
Phantom: -46 dB (5.0 mV) re 1V at 1 Pa
Battery:
-48 dB (3.9 mV) re 1V at 1 Pa
IMPEDANCE
Phantom: 200 ohms
Battery:
250 ohms
MAXIMUM INPUT SOUND LEVEL
Phantom: 137 dB SPL, 1 kHz at 1% T.H.D.
Battery:
125 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
Phantom: 113 dB, 1 kHz at Max SPL
Battery:
101 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 2 mA typical
BATTERY TYPE
1.5V AA/UM3
BATTERY CURRENT / LIFE
0.4 mA/1200 hours typical
SWITCH
On/off
WEIGHT
6.4 oz (182 g)
DIMENSIONS
8.10" (205.7 mm) long,
1.64" (41.7 mm) head diameter
OUTPUT CONNECTOR
Integral 3-pin gold-plated XLRM-type

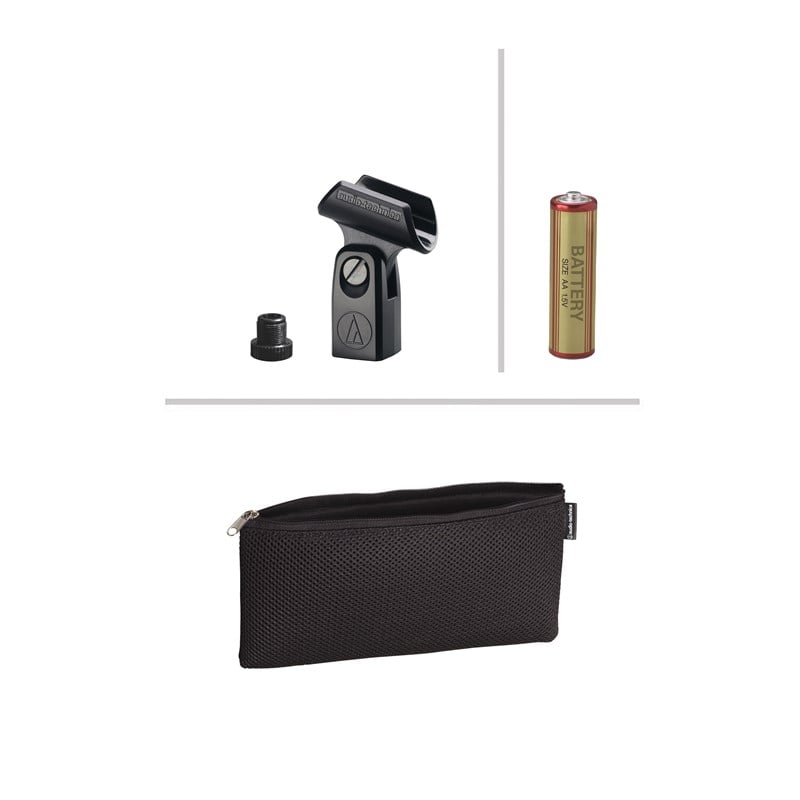

ACCESSORIES FURNISHED
AT8405a stand clamp for 5/8"-27 threaded stands;
5/8"-27 to 3/8"-16 threaded adapter; battery; soft protective pouch
AUDIO-TECHNICA CASE STYLE
S8
