Audio Technica MB DK7 7'li Davul Mikrofonu Sistemi

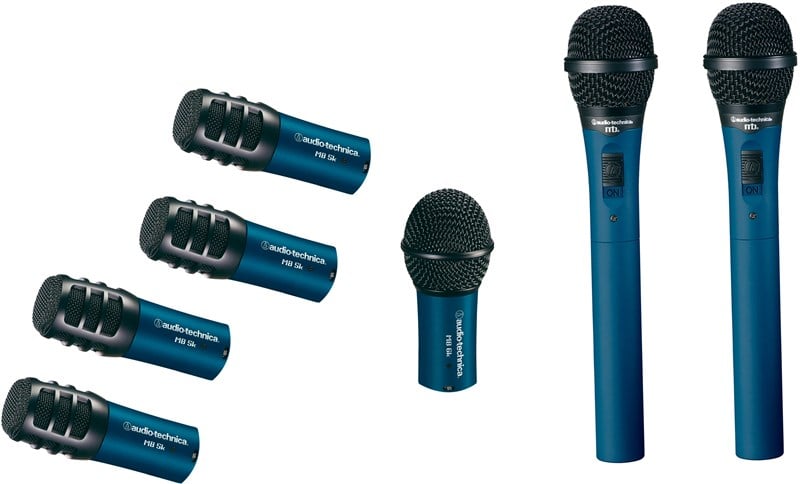

Set İçeriği..
(4) MB 5k snare/tom mics;
(1) MB 6k kick mic;
(2) MB 4k condenser mics;
(4) drum mic mounts;

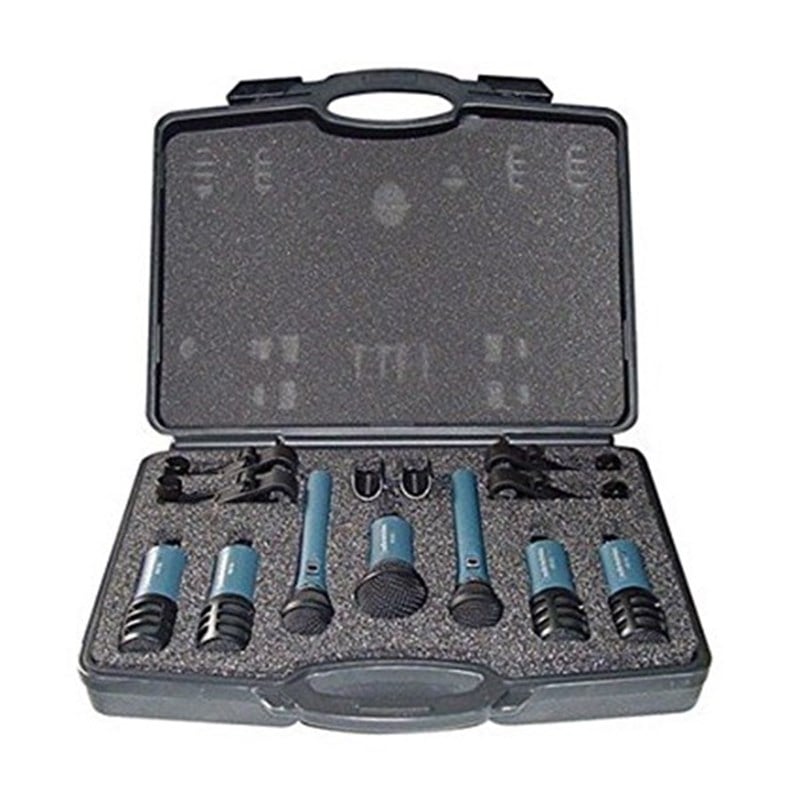

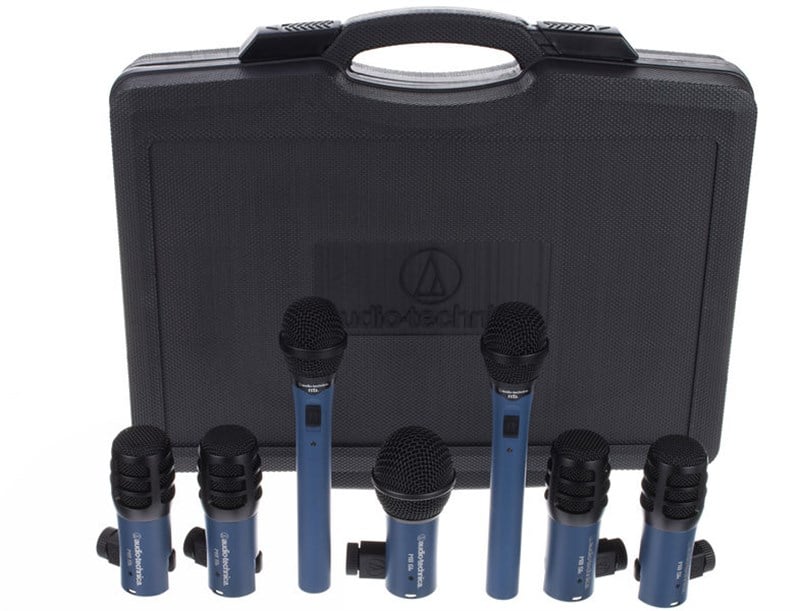

(2) AT8405a stand clamps; durable carrying case
MB 5k Cardioid Dynamic Snare/Tom Microphone (4 included)
Custom-engineered for use on snare and toms
Road ready all-metal construction
Low-profile percussion-style design
Built-in adjustable stand mount
MB 6k Cardioid Dynamic Kick Microphone (1 included)
Custom-engineered for use on kick drum
Rugged all-metal construction
Low-profile percussion-style design
Built-in adjustable stand mount
MB 4K Condenser Microphone (2 included)
Condenser design for studio-quality performance
Extended response for smooth, natural sonic characteristics
Rugged all-metal construction and on/off switch
Soft-touch finish for durability and minimal mechanical noise
Battery/phantom operation for maximum versatility
ELEMENT
MB 4k: Condenser
MB 5k: Dynamic
MB 6k: Dyanmic
POLAR PATTERN
Cardioid
FREQUENCY RESPONSE
MB 4k: 80-20,000 Hz
MB 5k: 100-12,000 Hz
MB 6k: 60-12,000 Hz
OPEN CIRCUIT SENSITIVITY
MB 4k (Phantom/Battery): -46 dB (5.0 mV)/ -48 dB (3.9 mV) re 1V at 1 Pa
MB 5k: -58 dB (1.2 mV) re 1V at 1 Pa
MB 6k: -59 dB (1.1 mV) re 1V at 1 Pa
IMPEDANCE
MB 4k (Phantom/Battery): 200 ohms/ 250 ohms
MB 5k: 500 ohms
MB 6k: 500 ohms
MAXIMUM INPUT SOUND LEVEL
MB 4k (Phantom/Battery): 137 dB SPL/ 125 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)
MB 4k (Phantom/Battery): 113 dB/ 101 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
MB 4k: 70 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
MB 4k: 11-52V DC, 2 mA typical
BATTERY TYPE
MB 4k: 1.5V AA/UM3
BATTERY CURRENT / LIFE
MB 4k: 0.4 mA/ 1200 hours typical
SWITCH
MB 4k: On/Off
WEIGHT
MB 4k: 6.4 oz (182 g)
MB 5k: 11.4 oz (324 g)
MB 6k: 11.2 oz (317 g)
DIMENSIONS
MB 4k: 8.10" (205.7 mm) long, 1.64" (41.7 mm) head diameter
MB 5k: 4.46" (113.2 mm) long, 1.63" (41.5 mm) head diameter
MB 6k: 4.59" (116.5 mm) long, 2.11" (53.5 mm) head diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
