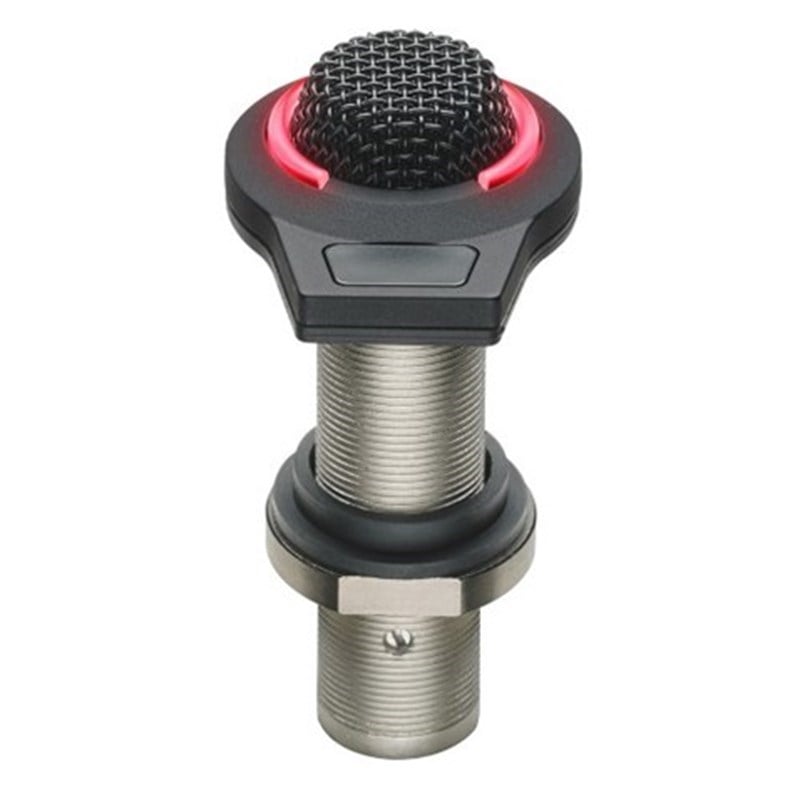

Audio-Technica ES947LED Ledli Kardioid Kondenser Boundary Siyah Mikrofon
With its low-profile design that mounts unobtrusively in tabletops for minimum visibility,
the ES947/LED omnidirectional condenser boundary microphone provides clear, highly
intelligible audio that is perfect for sound reinforcement, professional recording and
teleconferencing, television and other demanding sound pickup applications.
Protected by a rugged all-metal case with a two-layer steel mesh grille, the
microphone’s omnidirectional polar pattern affords a 120° pickup angle, while its
UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency
interference (RFI). Users can easily toggle between mute and live audio thanks to the

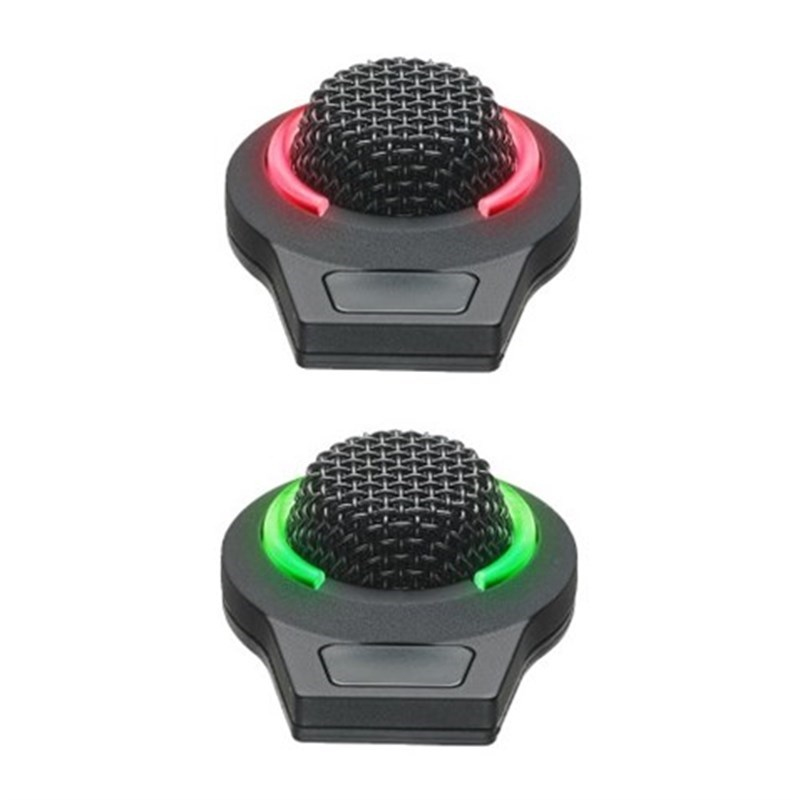

microphone’s capacitive-type touch-sensitive switch. An integral Red/Green LED ring
indicates the mute status, staying green when the microphone is live and turning red when it is muted.
Additionally, the ES947/LED is equipped with a self-contained power module with
an XLRM-type output connector, eliminating the need for an external power module.
Contractor-exclusive innovations for every acoustical challenge
Safe haven from Radio Frequency Interference (RFI)
Low-profile omnidirectional condenser boundary microphone
Designed for clear, highly intelligible sound reinforcement, teleconference
Mounts unobtrusively in table-tops, ceilings and wall panels
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Omnidirectional
Frequency Response: 40-13,000 Hz
Open Circuit Sensitivity: -40 dB (10 mV) re 1V at 1 Pa
Impedance: 200 ohms
Maximum Input Sound Level: 142 dB SPL, 1 kHz at 1% T.H.D.
Switches: Touch-sensitive control: on/mute
Dynamic Range: 114 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 66 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 5.7 mA typical
Weight: 66 g (2.3 oz)
Dimensions:
84.8 mm (3.33") long,
38.0 mm (1.49") diameter
48.0 mm (1.89") maximum width
Output Connector: Integral 3-pin XLRM-type
Accessories Included: One pair isolators
Mounts unobtrusively in tabletops, ceilings or walls
Low-profile element Provides uniform omnidirectional polar pattern with 120° acceptance angle
RFI-shielding technology UniGuard® offers outstanding rejection of radio frequency interference (RFI)
Self-contained electronics with XLRM termination eliminate the need for external power module
Requires phantom power supply of 11V to 52V
Rugged all-metal case with a two-layer steel mesh grille
Capacitive touch-sensitive deviation allows users to switch easily mute / un-mute the microphone
Integral LED ring indicates mute status-green when mic is live, when muted red
A pair of isolators provide mechanical dampening of surface-mounting vibration
