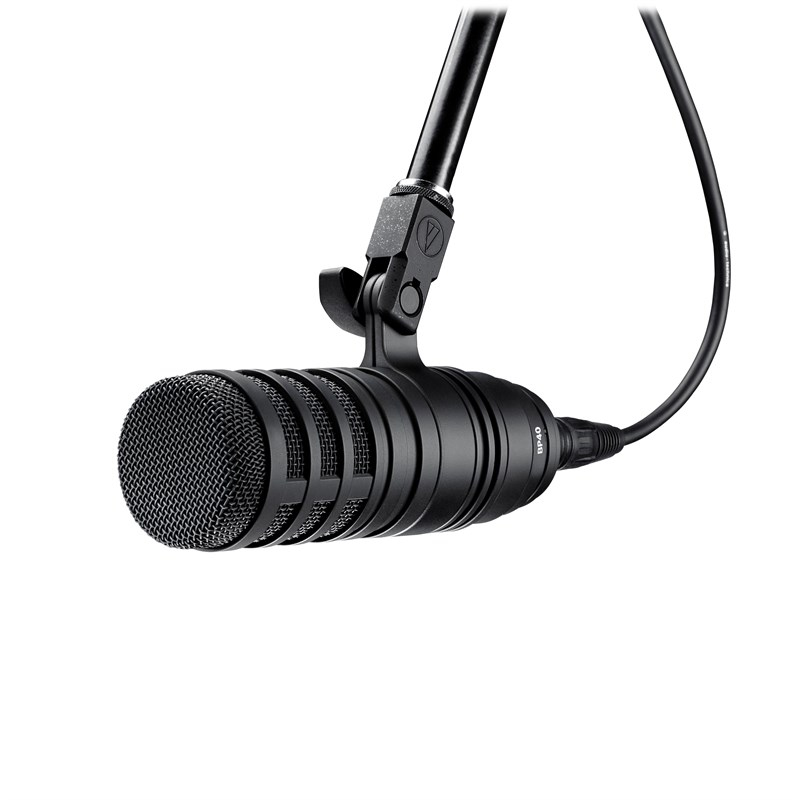

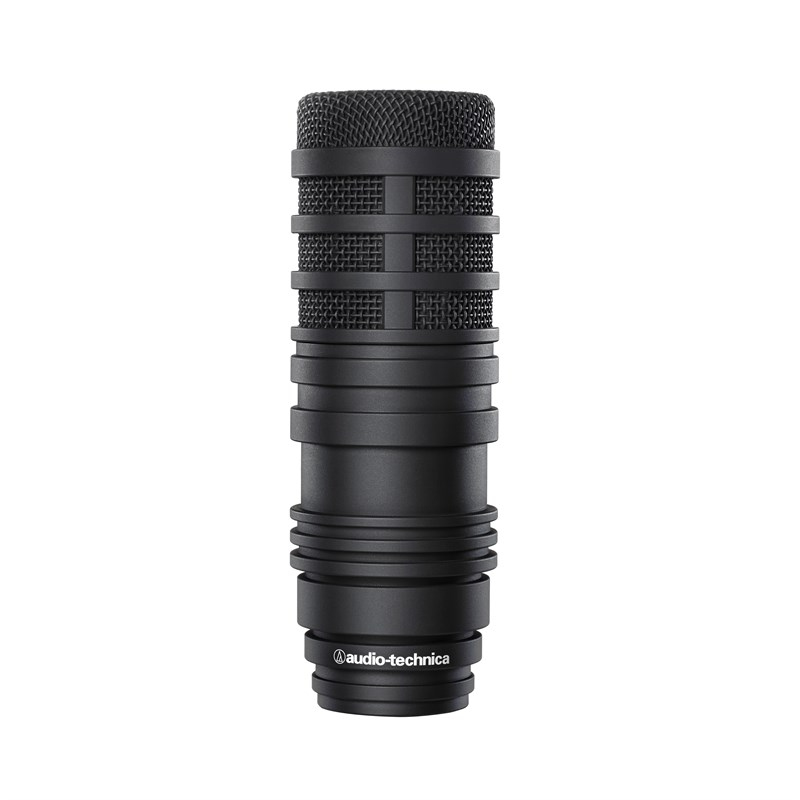

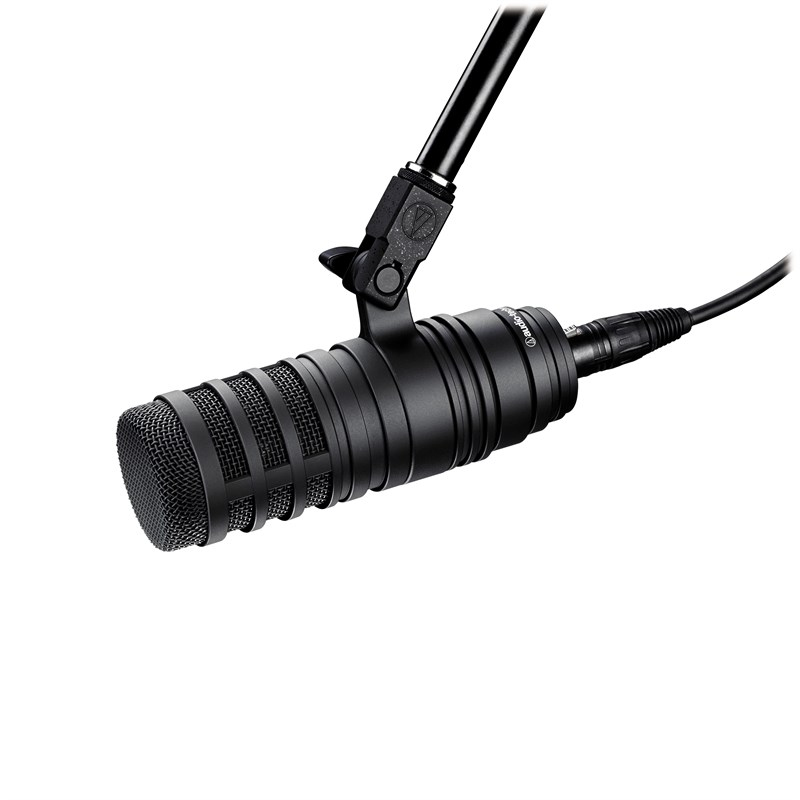

Audio Technica BP40 Large-Diaphragm Dynamic Broadcast Microphone
Rich, natural, condenser-like sound

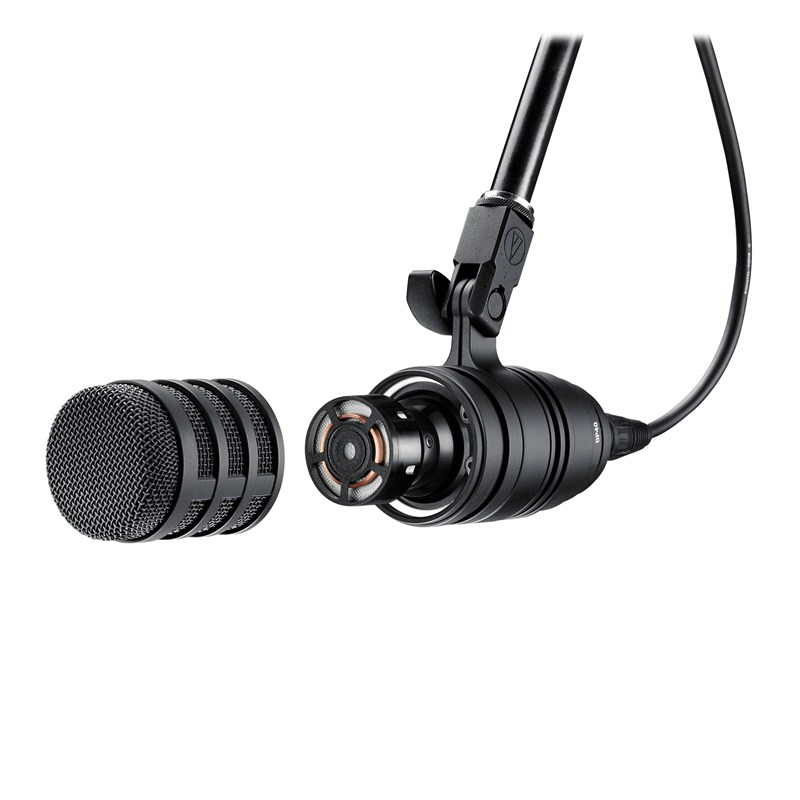

Large diameter diaphragm with patented floating-edge construction for optimal diaphragm performance
Humbucking coil prevents electromagnetic interference (EMI)
Hypercardioid polar pattern improves isolation
Switchable 100 Hz high-pass filter
Superior off-axis rejection for maximum gain before feedback
Optimized capsule placement for commanding vocal presence even at a distance
Multistage windscreen provides superior internal pop filtering
Rugged, all-metal construction for dependable use in professional broadcast environments
ELEMENT
Dynamic
POLAR PATTERN
Hypercardioid
FREQUENCY RESPONSE
50-16,000 Hz
OPEN CIRCUIT SENSITIVITY
–48 dB (3.9 mV) re 1V at 1 Pa
IMPEDANCE
450 ohms
SWITCHES
Flat, roll-off
WEIGHT
632 g (22.3 oz)
DIMENSIONS
164.0 mm (6.45") long, 56.0 mm (2.20") diameter
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
ACCESSORIES FURNISHED
AT8483 mounting clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
OPTIONAL ACCESSORY:

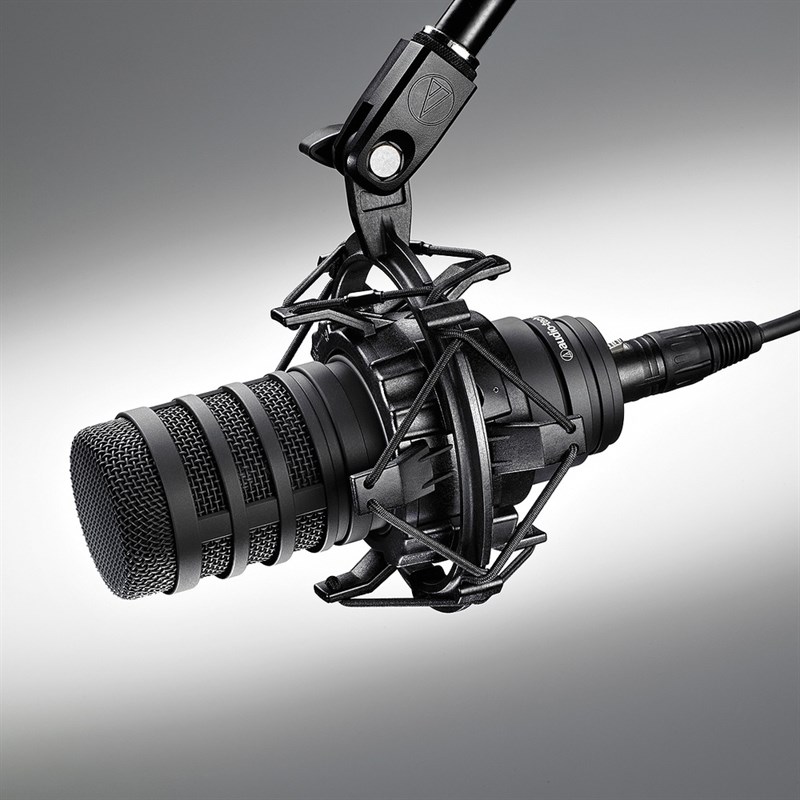

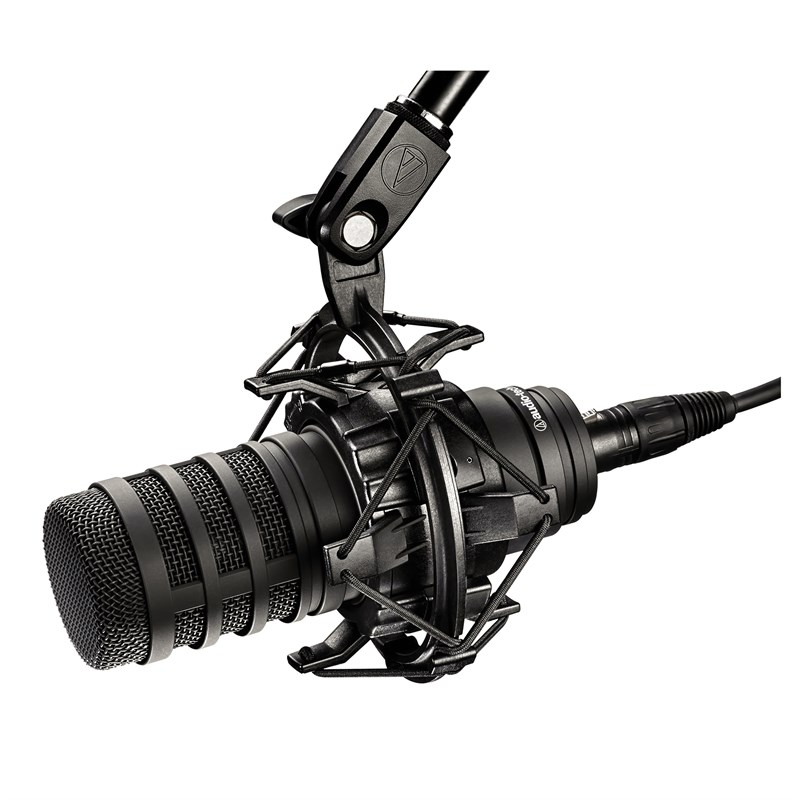

AT8484 shock mount for 5/8"-27 threaded stands
AUDIO-TECHNICA CASE STYLE
R12
