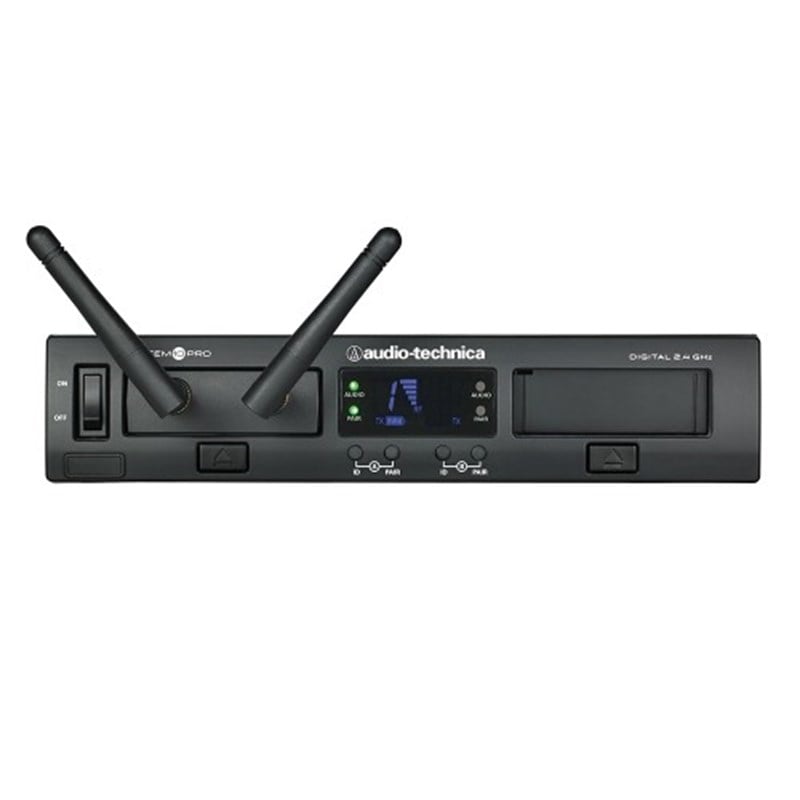

System 10 Pro Single Channel Receiver



Audio-Technica ATW-R1310 System10 Kablosuz Mikrofon Alıcısı



The Audio-Technica "System 10 Pro" rack-mountable digital wireless system is so simple to use, so dependable and so automatic that you'll never have to think about it. Set it up anywhere, turn it on and its good to go.

Like the rest of the range System 10, the System 10 Pro works in 24-bit / 48 kHz, and allows easy use while ensuring clear and natural sound quality. The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimize immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

1x ATW-RC13 Rack-mount receiver chassis
1x ATW-RU13 Receiver unit
Operates in the 2.4 GHz range
Up to five chassis/ten receiver units can be linked and used simultaneous







Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 60 m (200') Open range env. with no interfering signals
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Audio Sampling 24 bit / 48 kHz
Latency 3.8 ms

Receiver
Receiving System Diversity (frequency/time/space)
Output Connectors (Microphone) "Remote Receiver Connector: RJ45
Link Connector: RJ12"
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions 209.8 mm (8.26") W x 44 mm (1.73") Hx 169.3 mm (6.67") D
Weight 940g
Accessories Included Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet

This bundle contains 1x ATW-RC13 Rack-mount receiver chassis and 1x ATW-RU13 Receiver unit
2.4 GHz 24-bit / 48kHz Digital wireless system
No interference, as operates outside of DTV or 3G bands
Automatic Frequency Selection. Plug & Play. Ease of use and reliability
Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
Possibility of 2 interchangeable receivers per chassis
Users can pair each receiver with up to 10 transmitters
2 frames or 4 receivers can fit in a 19" 1U rack
Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
Up to 10 systems can be used simultaneously without any frequency coordination problems or group selection
Hi-Fi audio quality over the whole frequency range (20 Hz to 20 kHz)
