Microphone
Element: Fixed-charge back plate permanently polarized condenser
Polar Pattern: Omnidirectional
Weight: Microphone, boom & earpiece: 2.6g
Dimensions
Microphone: 8.1 mm long, 2.6 mm diameter
Boom: 98.4 mm long, 1.07 mm diameter
Output Connector: 4-Pin cH-Style screw down connector
Cable: 1.4 m long (permanently attached to microphone), 1.6 mm diameter, 2-conductor, shielded cable with screw-down 4-pin cH-style connector
Accessories Included: AT8464 dual-ear microphone mount; AT8440 cable clip; two AT8157 windscreens; two AT8156 element covers; moisture guard; carrying case
Overall System
Operating Frequencies
Band DE2: 470.125 to 529.975 MHz
Band EE1: 530.000 to 589.975 MHz
Band EF1: 590.000 to 649.975 MHz
Band FG1: 650.000 to 699.875 MHz
Band GH2: 794.100 to 805.900 MHz
Band HH2: 821.100 to 831.900 MHz and 863.100 to 864.900 MHz
Minimum Frequency Step: 25 kHz
Modulation Mode: FM
Maximum Deviation: ATW-T3201: ±38 kHz (THD:10%), ATW-T3202: ±36 kHz (THD:10%)
Simultaneous Use: 40 Channels per band
Frequency Response: ATW-T3201: 31 Hz to 15500 Hz, ATW-T3202: 25 Hz to 16700 Hz
Operating Range 100 m
Dynamic Range:
ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range: -5 ºC to +45 ºC
Receiver
Receiving System: True Diversity
Sensitivity: 20 dBuV at 60 dBA S/N ratio (50Ω termination)
Maximum Output Level: XLR / Balanced: +14 dBV; 6.3 mm (¼"") / Unbalanced: +8 dBV
Antenna Input: BNC-type, 50 Ω
Power Output: 12 V DC, 160 mA (combined)
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions : 10.0 mm x 191.0 mm x 43.4 mm (W x H x D)
Weight: 1100 g, without accessories
Accessories Included: Two Flexible UHF antennas, AC adapter (country dependent), Rack Mount Adaptors
Belt Pack
RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
Spurious Emissions: Following Federal and National Regulations
Input Connections: 4-Pin screw down cH-Style Connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +5V, Battery Type: Two 1.5V AA, not included
Battery Life: High: 8.0 hours / Low: 9.0 hours (alkaline)
High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage and environmental conditions.
Dimensions: 64 mm x 82 mm x 23 mm (W x H x D)
Net Weight: 102 g
|
Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in 6 frequency bands - DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590–650 MHz), FG1 (650–700 MHz), GH2 (795 – 806 MHz) and HH2 (821 – 865 MHz).
Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
True Diversity operation reduces dropouts
Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
Frequency scan and IR sync functionality for ease of setup
Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
Charging terminals on transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
Antenna power available for powered antennas and other in-line RF devices
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks

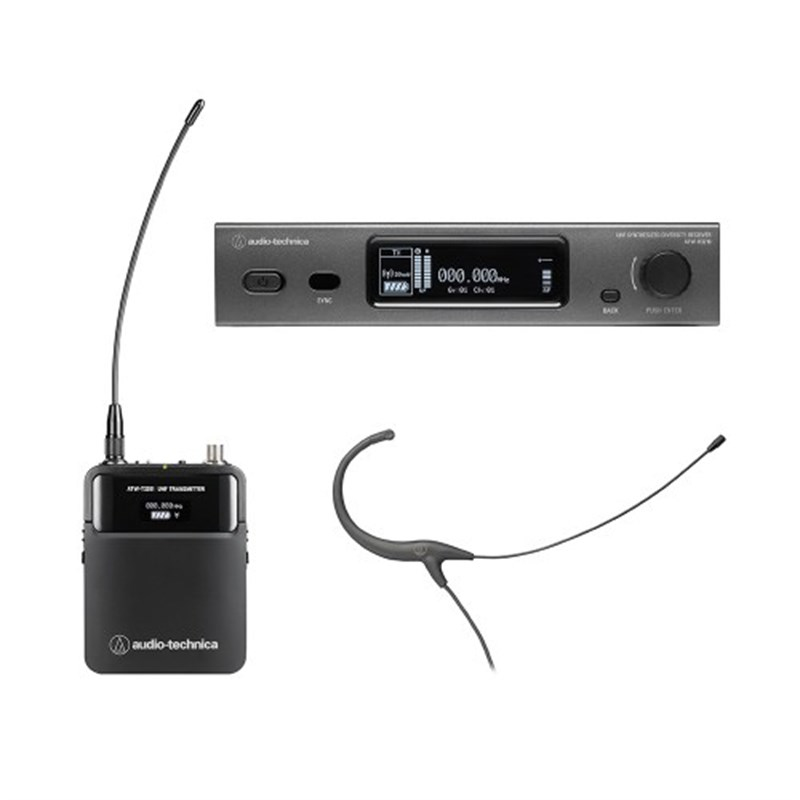

BP892cH micro headset omni condenser microphone, black
|
